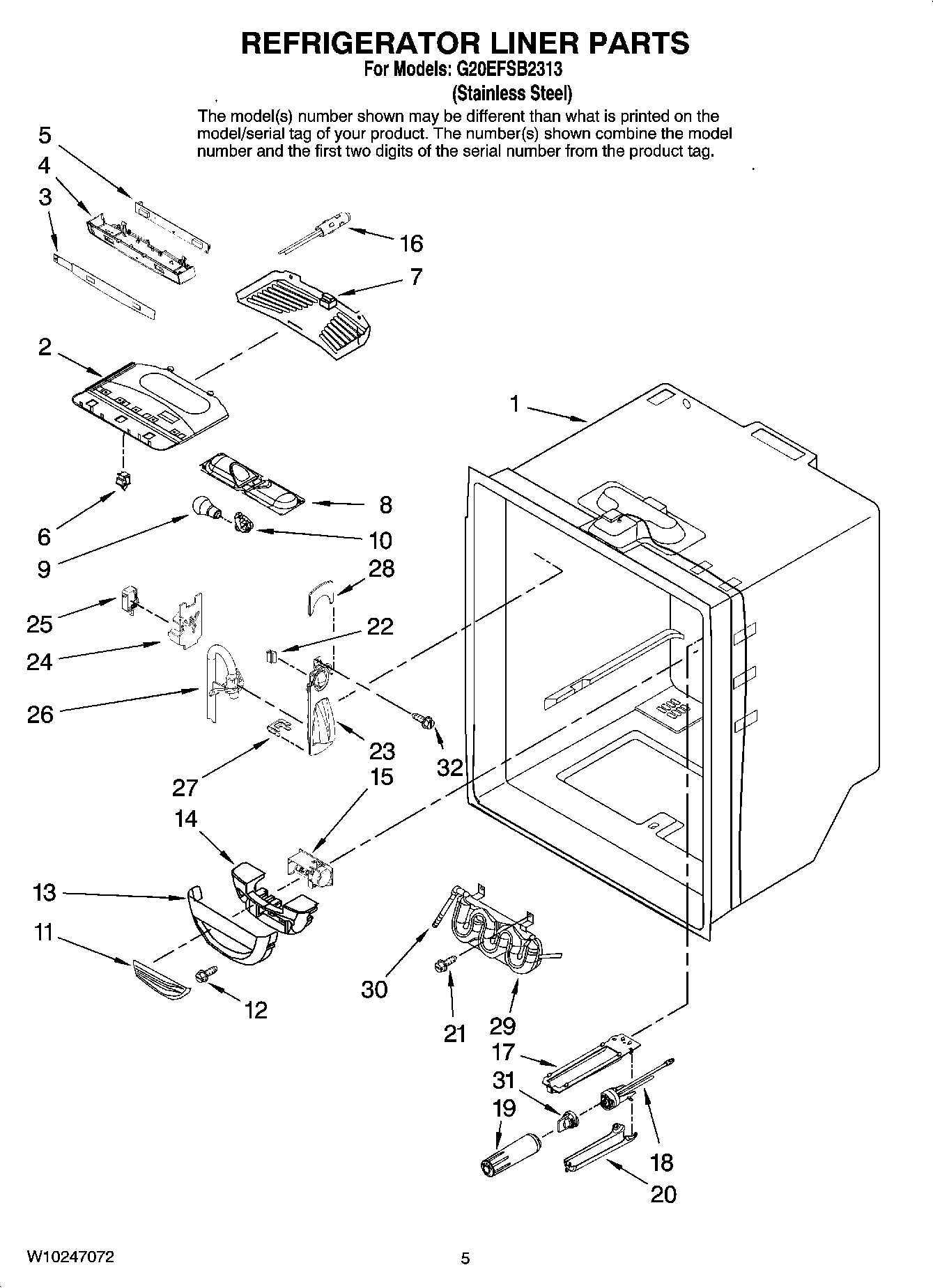

G20EFSB2313 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
	Following Parts Not Illustrated
	Harness, Control (Refrigerator)
1	Liner (Not A Serviceable Part)
2	Module, Light
3	Keyboard
4	Module, Control
5	Board, Control
6	W11384469 Whirlpool Door Switch
7	W11284721 Whirlpool Refrigerator Cover
8	12806601 Whirlpool Refrigerator Light Housing
9	WP67002552 Whirlpool Refrigerator Light Bulb
10	W11447232 Whirlpool Refrigerator Socket
11	67003900 Whirlpool Refrigerator Insert Damper Cover
12	WP400021-1 Whirlpool Screw
13	WP12806701 Whirlpool Refrigerator Box Cover
14	INSULATION
15	WPW10127430 Whirlpool Control Board
16	12002355 Whirlpool Refrigerator Thermistor Kit
17	PLATE-FIL
18	Head, Water Filter
19	everydropÂ® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
20	WP12568001 Whirlpool Filter Cover
21	WP67006415 Whirlpool Refrigerator Screw
22	W10819546 Whirlpool Refrigerator Clip
23	Facade, Disp.
24	12707303SP Whirlpool Refrigerator Plate
25	WP12575501 Whirlpool Refrigerator Micro Switch
26	W11677725 Whirlpool Refrigerator Guide
27	67002816 Whirlpool Refrigerator Waterline Clip
28	W11519867 Whirlpool Refrigerator Cover
29	W11361728 Whirlpool Reservoir Assembly
30	WP2300868 Whirlpool Refrigerator Fitting
31	Plug, Bypass
32	67006425 Whirlpool Refrigerator Screw
