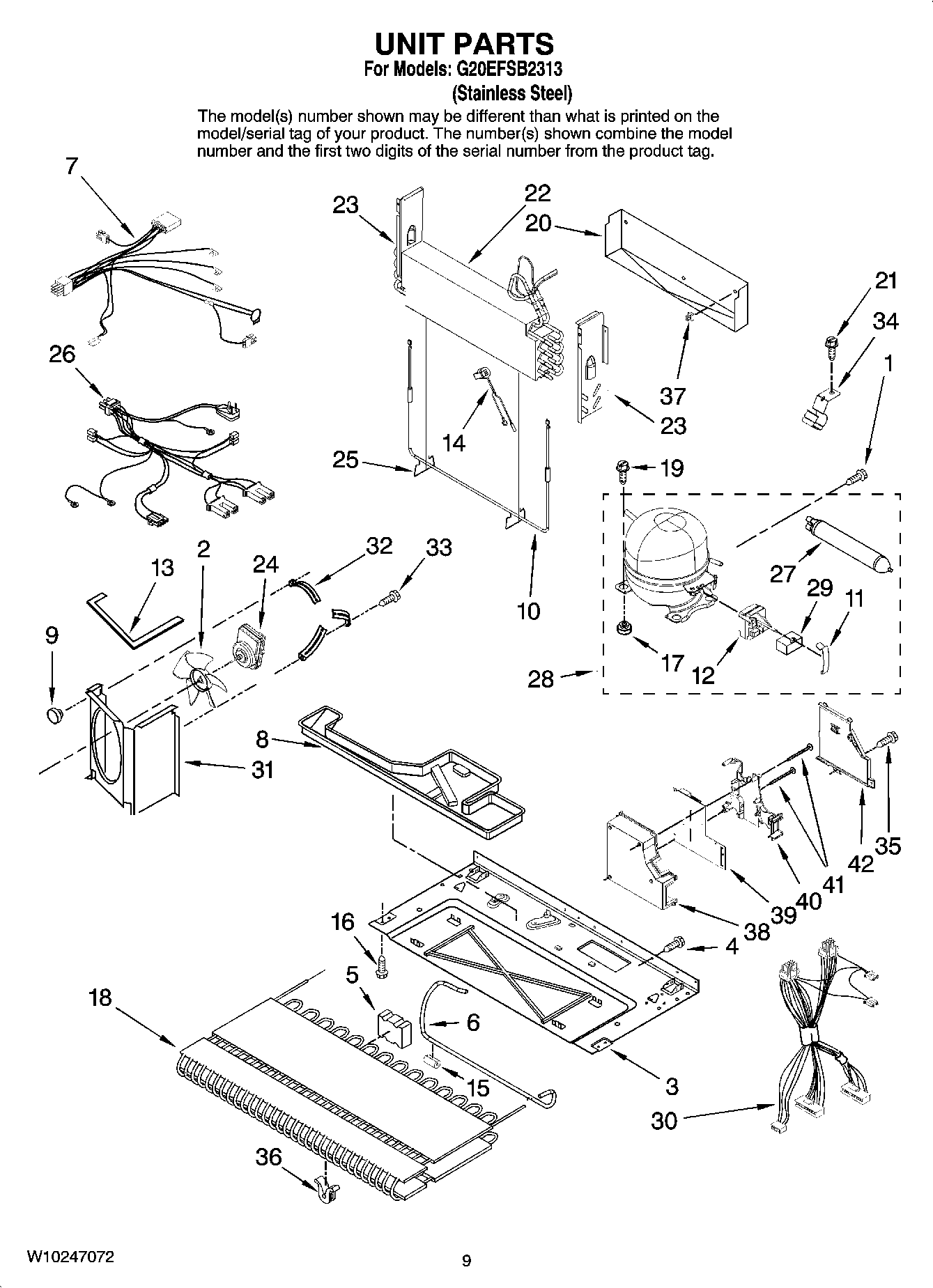

G20EFSB2313 05 – UNIT PARTS

G20EFSB2313 05 – UNIT PARTS

Written by

in

G20EFSB2313 05 – UNIT PARTS

Products

Position	Product
	978030 Whirlpool Refrigerator Valve
	VALVE, ACCESS (1/2“)
	WP978025 Whirlpool Refrigerator Valve
	REFRIGERANT CHARGE 5.0 Ozs. (R-134A)
	978027 Whirlpool Refrigerator Primary Valve
	Following Parts Not Illustrated and Optional Parts Not Included
	978026 Whirlpool Refrigerator Primary Valve
	876764 Whirlpool Refrigerator Primary Valve
	VALVE, ACCESS (5/8“)
1	12992301 Whirlpool Refrigerator Screw
2	W10156818 Whirlpool Refrigerator Fan Blade
3	Basepan
4	67006425 Whirlpool Refrigerator Screw
5	Block, Condenser
6	WP12866903 Whirlpool Refrigerator Discharge Tube
7	Harness, Evap Heater
8	Pan, Drain
9	Grommet (3)
10	Heater, Defrost
11	Clip, Capacitor
12	WP2303345 Whirlpool Starter Device
12	Relay, Combo (Production)
13	WP854334 Whirlpool Air Conditioner Sealing Strip
14	W11084905 Whirlpool Refrigerator Bimetallic Defrost
15	67005680 Whirlpool Refrigerator Condenser Grommet
16	Screw (4)
17	67003493 Whirlpool Refrigerator Compressor Grommet
18	WP67006131 Whirlpool Refrigerator Condenser
19	12846902 Whirlpool Refrigerator Screw
20	W11547653 Whirlpool Refrigerator Drip Tray
21	WP33001882 Whirlpool Screw
22	12002041 Whirlpool Refrigerator Evaporator Replacement Kit
23	Dam (Left Side)
23	Dam (Right Side)
24	WPW10246191 Whirlpool Refrigerator Motor
25	W11673433 Whirlpool Clip
26	Harness, Unit
27	WPW10143759 Whirlpool Dryer Filter
28	Compressor Kit (Includes Items 12,17,27,& 29)
29	WP2201147 Whirlpool Refrigerator Capacitor
30	Harness, HV
31	Shroud
32	WP67004953 Whirlpool Refrigerator Bracket
33	WP67004954 Whirlpool Refrigerator Screw
34	10547003 Whirlpool Refrigerator Dryer Clip
35	W10709801 Whirlpool Refrigerator Screw
36	WPW10137529 Whirlpool Refrigerator Grommet
37	CLIP, EVAP (2)
38	Box, HV
39	Board, HV Control (Inc. Inst. Sheet)
40	Spacer, HV Box
41	Screw (2)
42	67005421 Whirlpool Hoist Cover
