G20EFSB2313 08 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

G20EFSB2313 08 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

G20EFSB2313 08 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI147136A
WP542638 Whirlpool Refrigerator Grease
Torx Key
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
WPL 799833
WPL 876029
72032 Whirlpool Touch Up Paint Black
POLISH
W11033771 Whirlpool Refrigerator Coupling
285006 Whirlpool Spray
WPL ARI147137A
WPL ARI147134A
WPL ARI147135A
WP505587 Whirlpool Refrigerator Sealer
WP503695 Whirlpool Refrigerator Sealer
350930 Whirlpool White Spray Paint
876370 Whirlpool Refrigerator Insulation
833938 Whirlpool Refrigerator Terminal
606755 Whirlpool Refrigerator Bag
72017 Whirlpool Appliance Touch-Up Paint White
350942 Whirlpool Spray Paint
212643 Whirlpool Refrigerator Permagum Sealer
4392901 Whirlpool Biscuit Spray Paint

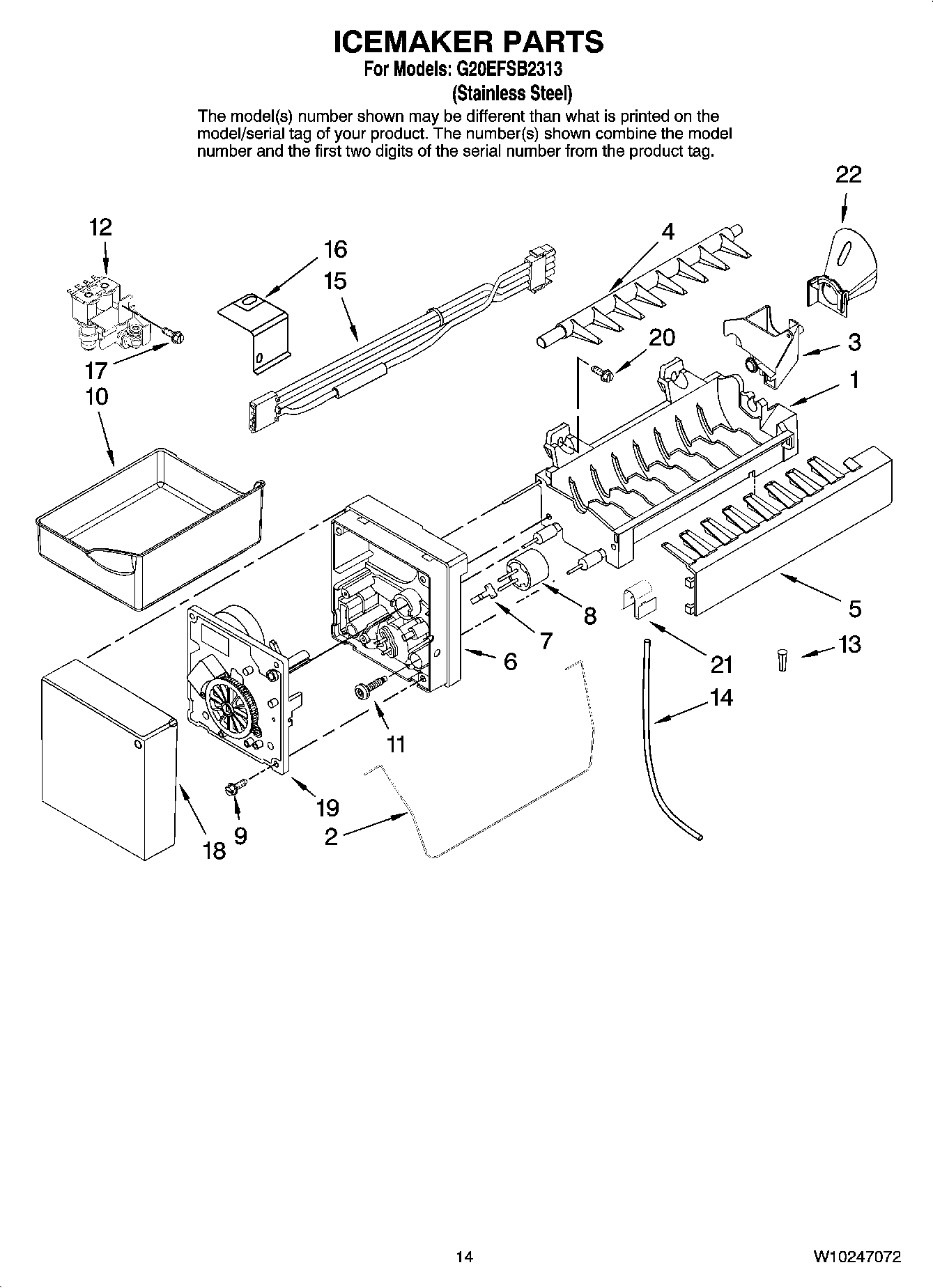

1WPW10122523 Whirlpool Refrigerator Ice Mold
2ARM-SHUT
3W10122561 Whirlpool Refrigerator Cup Fill
4WP627843 Whirlpool Refrigerator Ejector Arm
5WP2182124 Whirlpool Refrigerator Stripper Arm
6WP2195914 Whirlpool Refrigerator Ice Maker Housing
7WP2315522 Whirlpool Refrigerator Clip
8WP2321258 Whirlpool Refrigerator Bimetallic Defrost Assembly
9WP489464 Whirlpool Refrigerator Screw
10WP67001255 Whirlpool Ice Bucket
11W10001280 Whirlpool Refrigerator Screw
12Valve, Water Inlet
13WPA3223101 Whirlpool Refrigerator Insert PL
14WPB5705307 Whirlpool Refrigerator Tube
15Harness, Ice Maker
16WP2256087 Whirlpool Refrigerator Bracket
17WP489128 Whirlpool Refrigerator Screw
18WPW10289690 Whirlpool Ice Maker Cover
19W10190933 Whirlpool Refrigerator Motor Assembly
20W10001240 Whirlpool Refrigerator Screw
21WP628379 Whirlpool Refrigerator Clip
2212918001 Whirlpool Refrigerator Funnel
100WPW10190972 Whirlpool Refrigerator Icemaker
