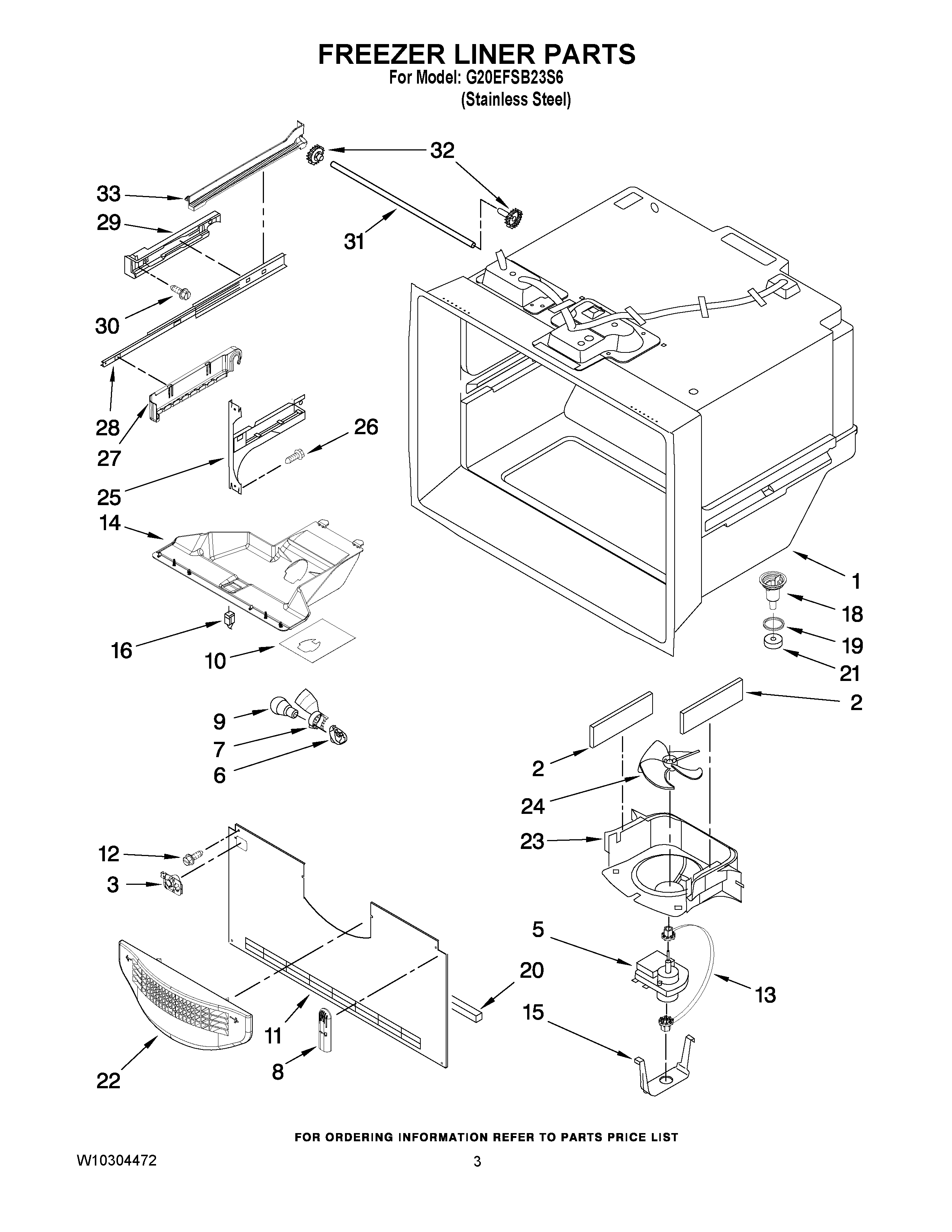

G20EFSB23S6 02 – FREEZER LINER PARTS

G20EFSB23S6 02 – FREEZER LINER PARTS

Written by

in

G20EFSB23S6 02 – FREEZER LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
3W11448709 Whirlpool Refrigerator Bracket
5WP67005023 Whirlpool Refrigerator Evaporator Motor
6W11447232 Whirlpool Refrigerator Socket
7SHROUD-LGHT SOCKET
8WP67003924 Whirlpool Refrigerator Cover
9WP67002552 Whirlpool Refrigerator Light Bulb
10W11469652 Whirlpool Refrigerator Shield
11Cover, Evaporator
1267006425 Whirlpool Refrigerator Screw
13W10121318 Whirlpool Refrigerator Grommet
14WPW10277025 Whirlpool Refrigerator Housing
15CLIP, EVAP (2)
16W11396033 Whirlpool Refrigerator Rocker Switch
18W10815413 Whirlpool Refrigerator Funnel
19WPM0500703 Whirlpool Refrigerator O-Ring Seal
20W10856123 Whirlpool Refrigerator Gasket
21WPB8381501 Whirlpool Refrigerator Door Gasket
22WPW10175909 Whirlpool Grille Assembly
23WPW10167023 Whirlpool Refrigerator Shroud
24WP2169142 Whirlpool Fan Blade
25WPW10330991 Whirlpool Refrigerator Bracket
25WPW10330994 Whirlpool Refrigerator Bracket
26WP98165 Whirlpool Screw
27WPW10281115 Whirlpool Refrigerator Bracket
27WPW10281116 Whirlpool Bracket
28W11658403 Whirlpool Slide
29WPW10284693 Whirlpool Mounting Bracket
29WPW10284692 Whirlpool Refrigerator Bracket
30WP489474 Whirlpool Refrigerator Screw
31W11028221 Whirlpool Refrigerator Shaft
3212002497 Whirlpool Refrigerator Drawer Gear Kit
33W10516605 Whirlpool Refrigerator Rail
33W10516604 Whirlpool Refrigerator Rail
