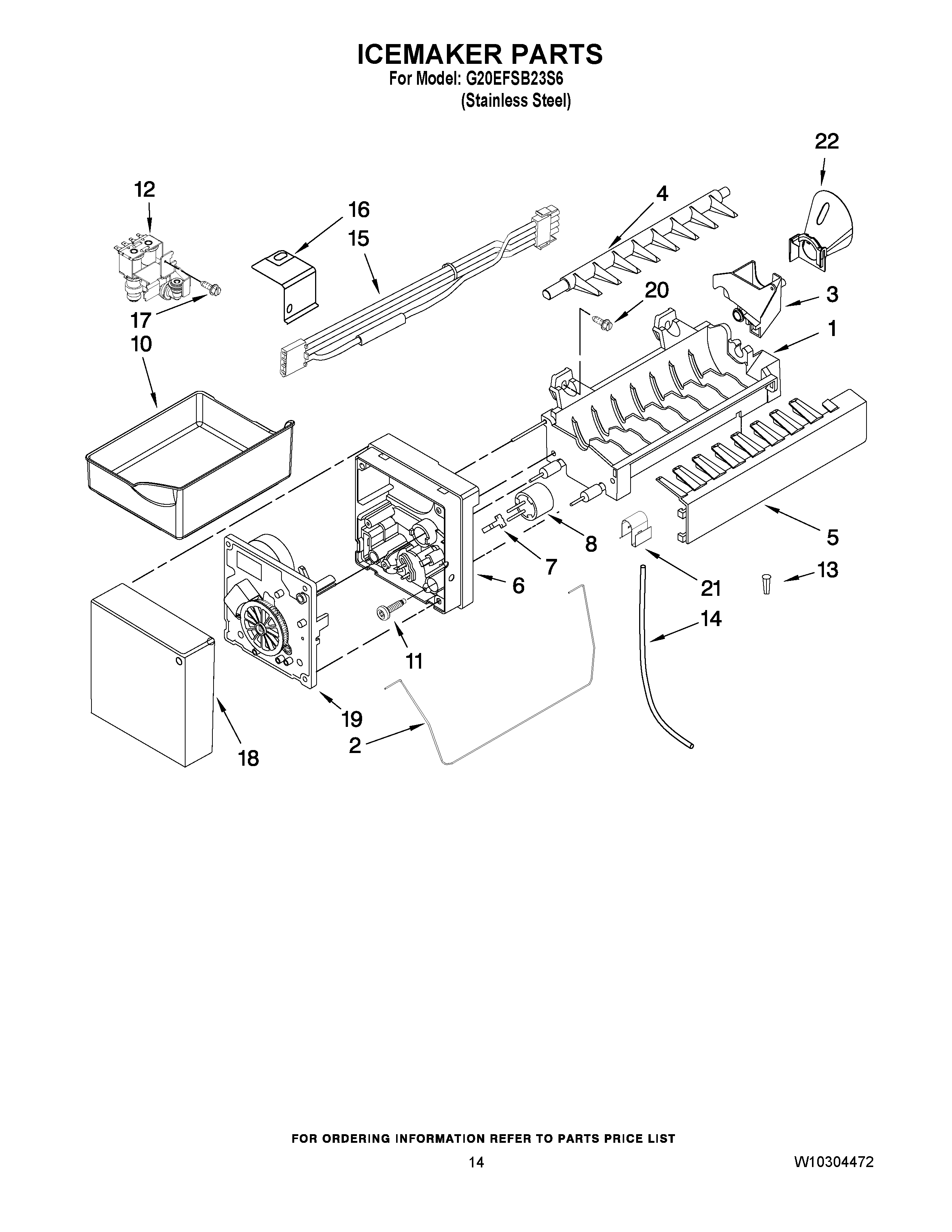

G20EFSB23S6 08 – ICEMAKER PARTS

G20EFSB23S6 08 – ICEMAKER PARTS

Written by

in

G20EFSB23S6 08 – ICEMAKER PARTS

Products

PositionProduct
NIW11033771 Whirlpool Refrigerator Coupling
1WPW10122523 Whirlpool Refrigerator Ice Mold
2W11285509 Whirlpool Refrigerator Shut-Off Arm
3W10122561 Whirlpool Refrigerator Cup Fill
4WP627843 Whirlpool Refrigerator Ejector Arm
5WPW10122563 Whirlpool Refrigerator Stripper Arm
6WP2195914 Whirlpool Refrigerator Ice Maker Housing
7WP2315522 Whirlpool Refrigerator Clip
8WP2321258 Whirlpool Refrigerator Bimetallic Defrost Assembly
10WPW10171529 Whirlpool Refrigerator Ice Pan
11W10001280 Whirlpool Refrigerator Screw
12VALVE-INLET
13WPA3223101 Whirlpool Refrigerator Insert PL
14W11120581 Whirlpool Refrigerator Water Tube
15Harness, Ice Maker
16WP2256087 Whirlpool Refrigerator Bracket
17WP489128 Whirlpool Refrigerator Screw
18WPW10289690 Whirlpool Ice Maker Cover
19W10190933 Whirlpool Refrigerator Motor Assembly
20W10001240 Whirlpool Refrigerator Screw
21WP628379 Whirlpool Refrigerator Clip
2212918001 Whirlpool Refrigerator Funnel
100WPW10190972 Whirlpool Refrigerator Icemaker
