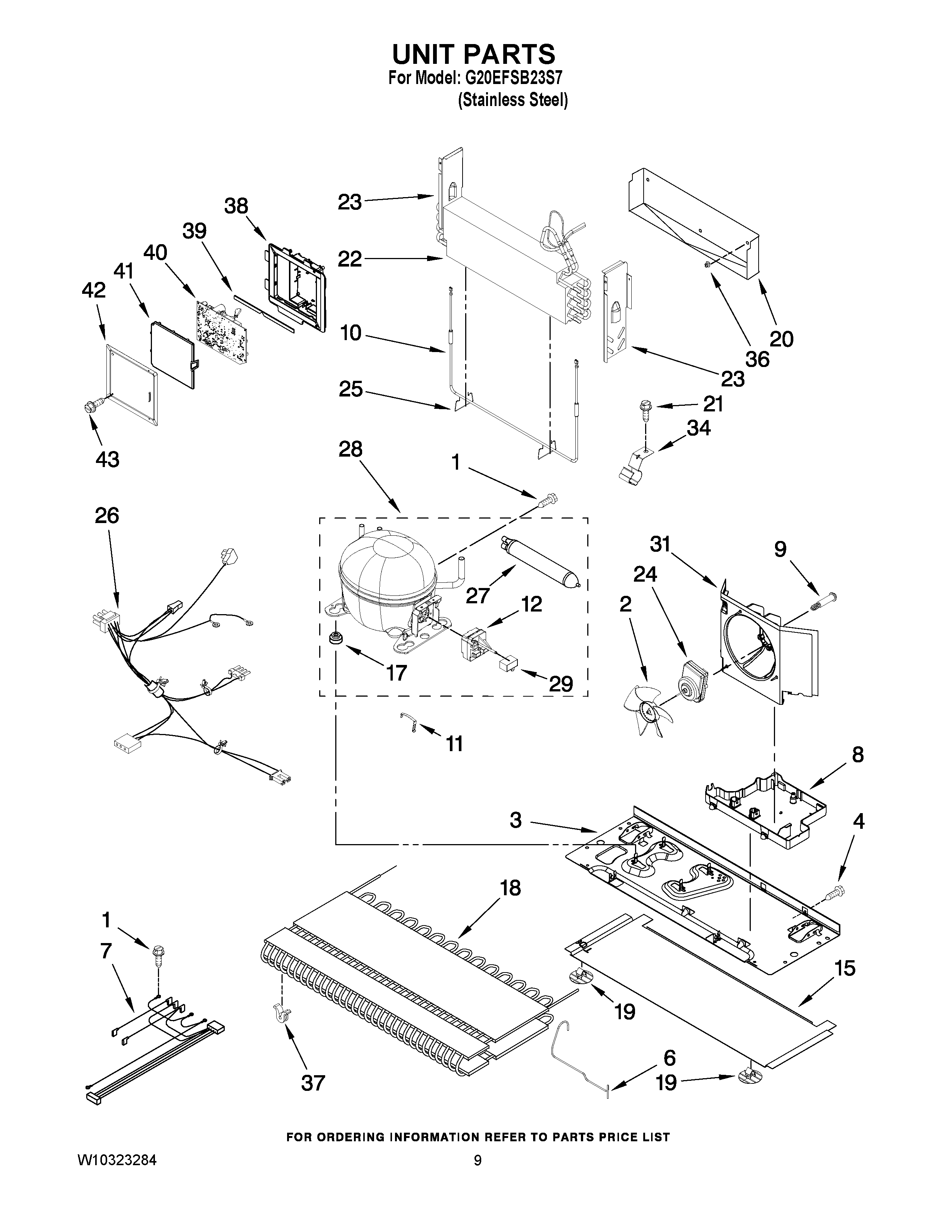

G20EFSB23S7 05 – UNIT PARTS

Products

Position	Product
NI	978030 Whirlpool Refrigerator Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	12992301 Whirlpool Refrigerator Screw
2	WP12825803 Whirlpool Refrigerator Fan Blade
3	W11727651 Whirlpool Plate Assembly
4	67006425 Whirlpool Refrigerator Screw
6	TUBE, DISCHARGE
7	HARNESS, EVAP HEATER
8	WPW10655368 Whirlpool Refrigerator Drip Pan
9	WP67006908 Whirlpool Refrigerator Screw
10	12729132 Whirlpool Refrigerator Heater
11	Strap, Bale
12	WP2312007 Whirlpool Refrigerator Start Device
15	EXTENSION, BASEPAN
17	WPW10169124 Whirlpool Refrigerator Grommet
18	WPW10346420 Whirlpool Refrigerator Condenser
19	W10206339 Whirlpool Fastener
20	W11547653 Whirlpool Refrigerator Drip Tray
21	WP33001882 Whirlpool Screw
22	12002041 Whirlpool Refrigerator Evaporator Replacement Kit
23	Dam (Left Side)
23	Dam (Right Side)
24	WPW10246191 Whirlpool Refrigerator Motor
25	W11673433 Whirlpool Clip
26	HARNESS, UNIT
27	WPW10143759 Whirlpool Dryer Filter
28	W10183407 Whirlpool Refrigerator Compressor
29	2321245 Whirlpool Refrigerator Capacitor
31	SHROUD
34	W10281329 Whirlpool Clamp
36	CLIP, EVAP (2)
37	W10852725 Whirlpool Refrigerator Grommet
38	BOX-HV CONTROL
39	GASKET, HV BOX
40	WPW10276422 Whirlpool Electronic Control
41	LID, HV BOX
42	12961602 Whirlpool Refrigerator Wire Cover
43	W11686675 Whirlpool Screw
