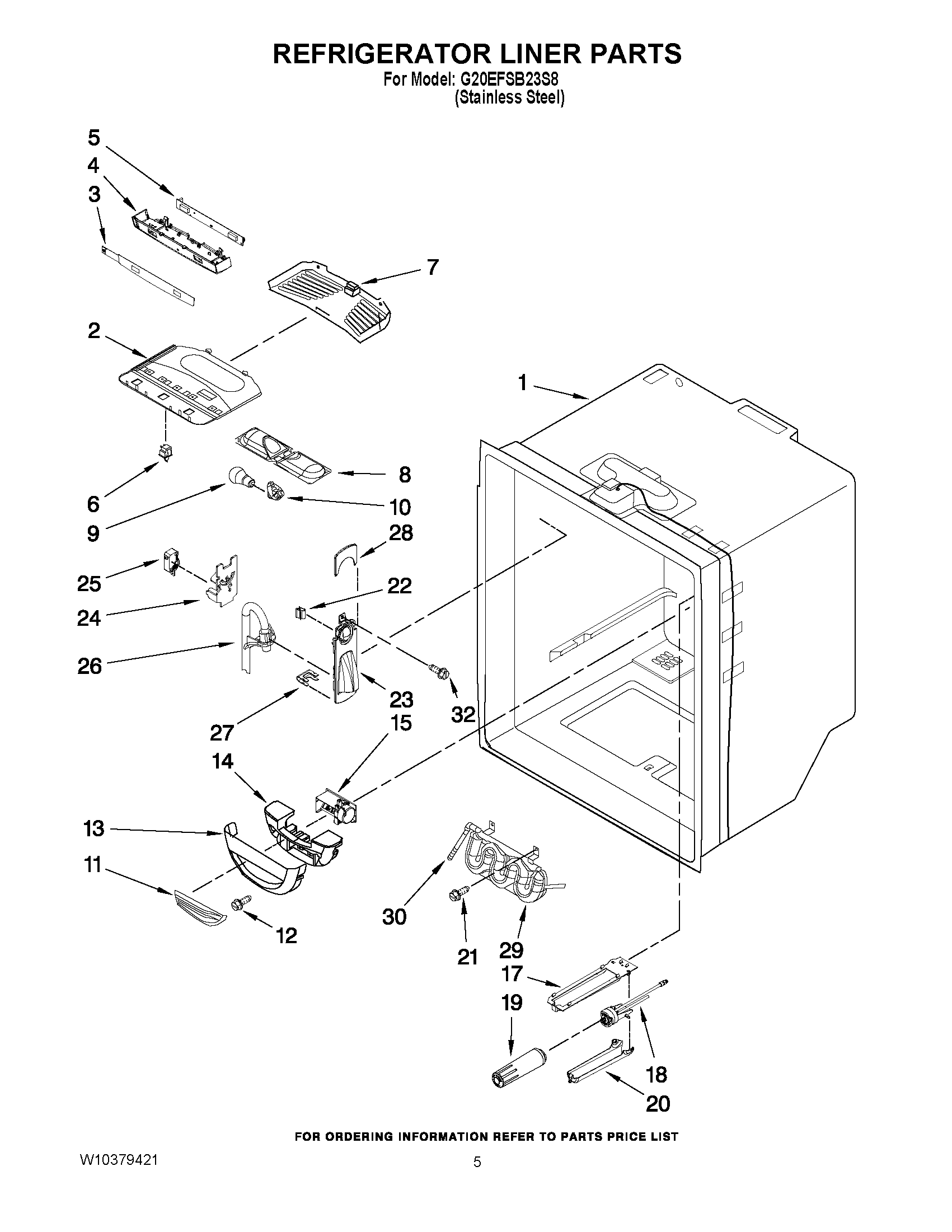

G20EFSB23S8 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
NI	W10226506 Whirlpool Wire Harness
1	CABINET (NOT A SERVICEABLE PART)
2	MODULE, LIGHT
3	KEYBOARD
4	W11416469 Whirlpool Refrigerator Housing
5	WPW10319823-includeCORE Whirlpool WPW10319823 Refrigerator Electronic Control Board + Core
6	W11384469 Whirlpool Door Switch
7	W11284721 Whirlpool Refrigerator Cover
8	12806601 Whirlpool Refrigerator Light Housing
9	WP67002552 Whirlpool Refrigerator Light Bulb
10	W11447232 Whirlpool Refrigerator Socket
11	67003900 Whirlpool Refrigerator Insert Damper Cover
12	WP400021-1 Whirlpool Screw
13	WP12806701 Whirlpool Refrigerator Box Cover
14	INSULATION
15	W10221218 Whirlpool Control
17	PLATE-FIL
18	W11346623 Whirlpool Refrigerator Water Filter Head
19	everydropÂ® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
20	WP12568001 Whirlpool Filter Cover
21	WP67006415 Whirlpool Refrigerator Screw
22	CLIP, FACADE (2)
23	FACADE, DISP.
24	12707303SP Whirlpool Refrigerator Plate
25	WP12575501 Whirlpool Refrigerator Micro Switch
26	W11677725 Whirlpool Refrigerator Guide
27	67002816 Whirlpool Refrigerator Waterline Clip
28	W11519867 Whirlpool Refrigerator Cover
29	W11229977 Whirlpool Refrigerator Reservoir
30	WP2300868 Whirlpool Refrigerator Fitting
32	67006425 Whirlpool Refrigerator Screw
