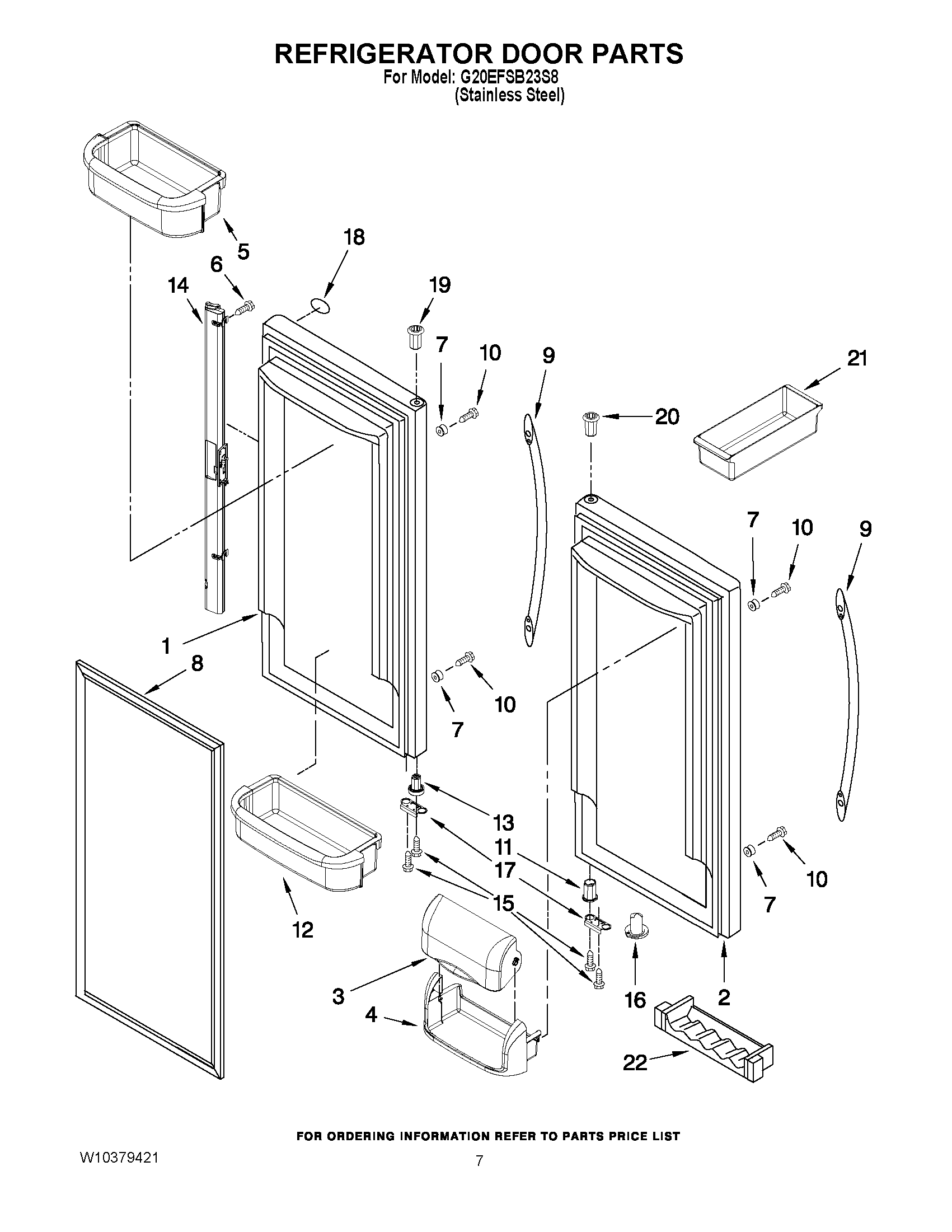

G20EFSB23S8 04 – REFRIGERATOR DOOR PARTS

G20EFSB23S8 04 – REFRIGERATOR DOOR PARTS

Written by

in

G20EFSB23S8 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, LEFT (STAINLESS STEEL)
2DOOR, RIGHT (STAINLESS STEEL)
3WP67003637 Whirlpool Dairy Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5WPW10371195 Whirlpool Refrigerator Cantilever Bin
6W11311945 Whirlpool Refrigerator Screw
7MOUNT, HANDLE
8GASKET-FIP
9Handle
10WP3387230 Whirlpool Screw
11WP67002731 Whirlpool Refrigerator Door Bushing
12WPW10289498 Whirlpool Refrigerator Cantilever Bin
13WP67002721 Whirlpool Refrigerator Door Bushing
14Mullion, Door (Black)
15WP98165 Whirlpool Screw
16WP67003639 Whirlpool Refrigerator Closer
17W11708403 Whirlpool Door Stop
18WP2213265 Whirlpool Refrigerator Nameplate
19Bushing, Door (Upper Left) (Black)
2067004978 Whirlpool Refrigerator Black Door Bushing
21W10136387A Whirlpool Refrigerator Egg Container
22WP67005626 Whirlpool Refrigerator Can Caddy
