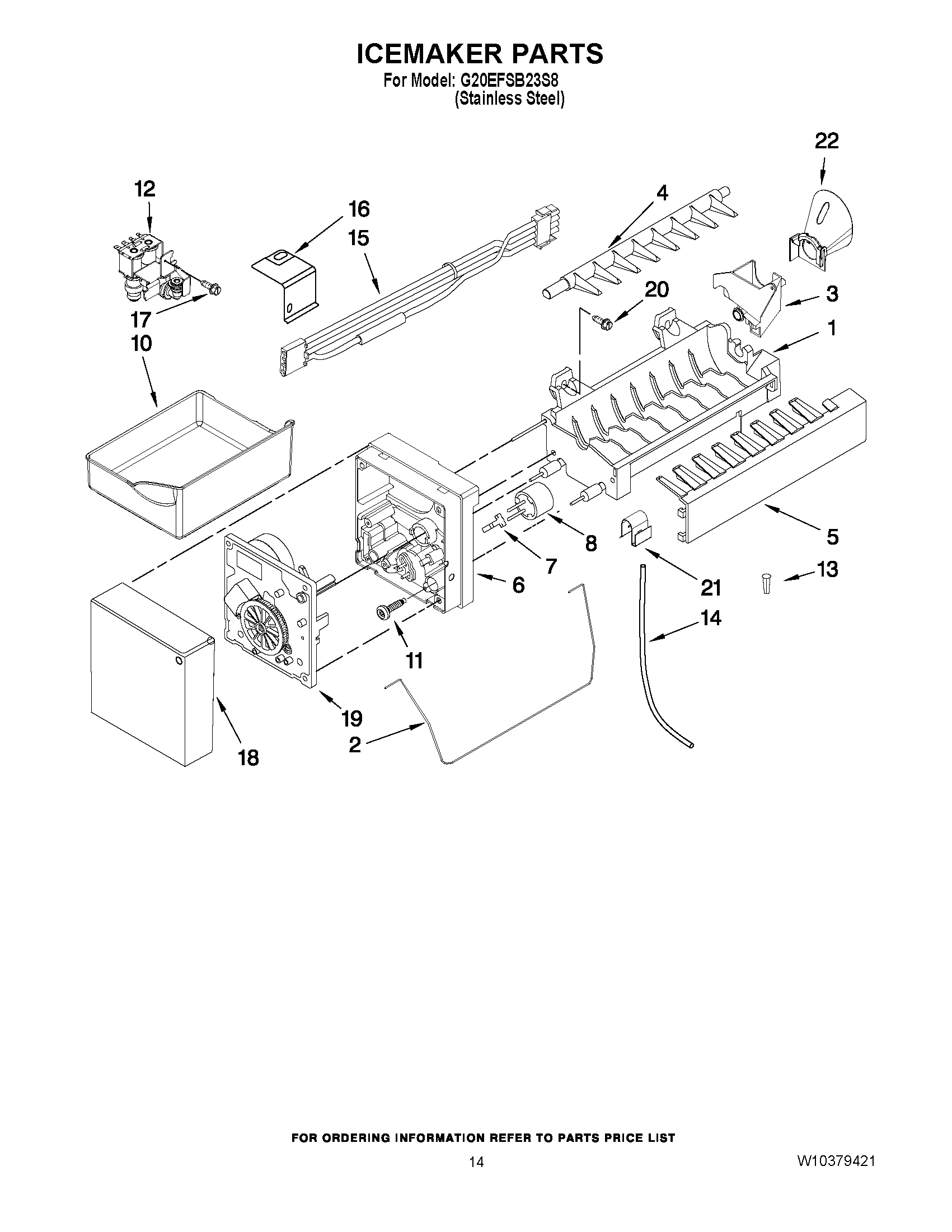

G20EFSB23S8 08 – ICEMAKER PARTS

Products

Position	Product
NI	W11033771 Whirlpool Refrigerator Coupling
1	WPW10122523 Whirlpool Refrigerator Ice Mold
2	W11285509 Whirlpool Refrigerator Shut-Off Arm
3	W10122561 Whirlpool Refrigerator Cup Fill
4	WP627843 Whirlpool Refrigerator Ejector Arm
5	WPW10122563 Whirlpool Refrigerator Stripper Arm
6	WP2195914 Whirlpool Refrigerator Ice Maker Housing
7	WP2315522 Whirlpool Refrigerator Clip
8	WP2321258 Whirlpool Refrigerator Bimetallic Defrost Assembly
10	WPW10171529 Whirlpool Refrigerator Ice Pan
11	W10001280 Whirlpool Refrigerator Screw
12	VALVE-INLET
13	WPA3223101 Whirlpool Refrigerator Insert PL
14	W11120581 Whirlpool Refrigerator Water Tube
15	Harness, Ice Maker
16	WP2256087 Whirlpool Refrigerator Bracket
17	WP489128 Whirlpool Refrigerator Screw
18	WPW10289690 Whirlpool Ice Maker Cover
19	W10190933 Whirlpool Refrigerator Motor Assembly
20	W10001240 Whirlpool Refrigerator Screw
21	WP628379 Whirlpool Refrigerator Clip
22	12918001 Whirlpool Refrigerator Funnel
100	WPW10190972 Whirlpool Refrigerator Icemaker
