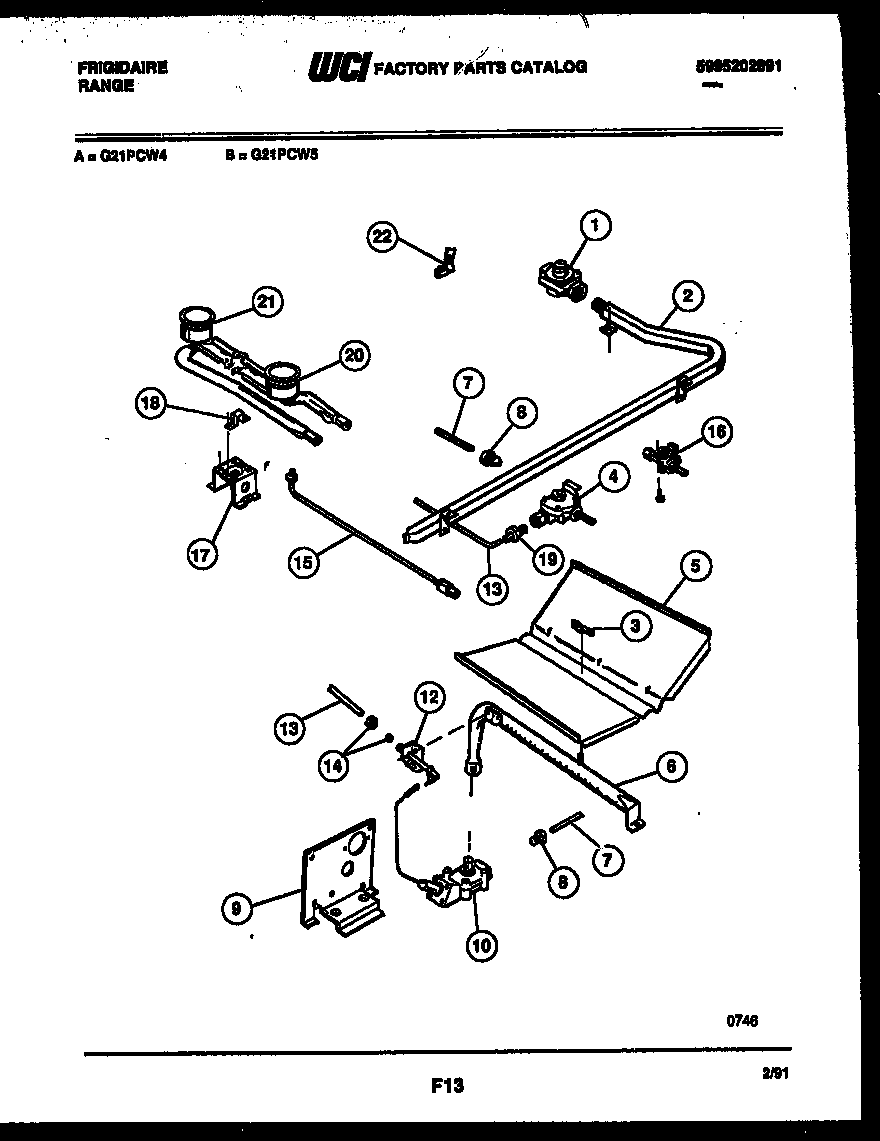

G21PCW4 04 – BURNER, MANIFOLD AND GAS CONTROL

G21PCW4 04 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

G21PCW4 04 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
15308007974 Frigidaire Pressure Regulator
2MANIFOLD
3NUT – WING
4WCI 5308013927
5BAFFLE-OVEN BURNER
6WCI 5308013855
7TUBE OVEN SUPPLY
8WCI 08008363
9SUPPORT-OVEN SAFETY VALVE
10WCI 5308013942
12WCI 3205598
13TUBE-OVEN PILOT
14NUT
15TUBE-PILOT
16WCI 5303131057
17SUPPORT-TOP BURNER
18STRAP – PILOT SHIELD
19LOXIT-NUT
20BURNER-TOP FRONT
21Burner,top ,rear
22CLIP CAPILLARY
