G21PCW4 06 – BODY PARTS

G21PCW4 06 – BODY PARTS

Written by

in

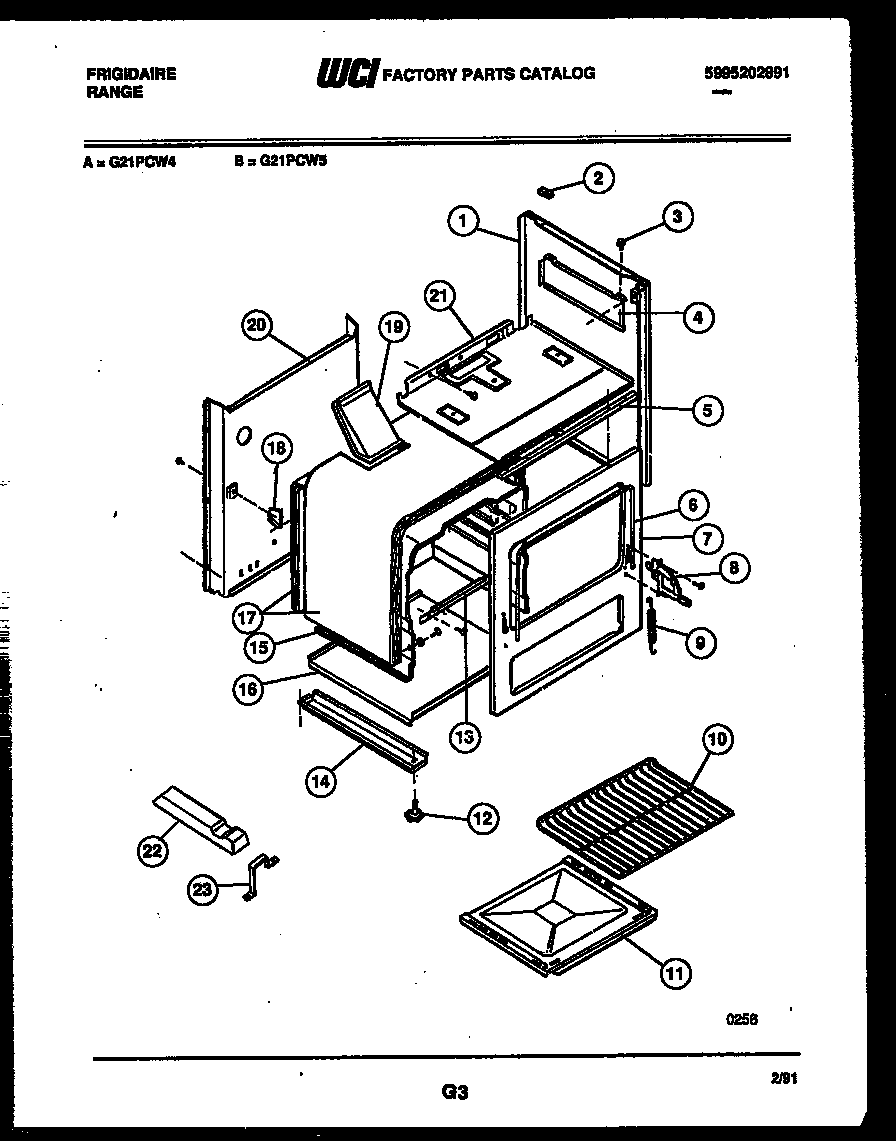

G21PCW4 06 – BODY PARTS

Products

PositionProduct
*42126ANTI-TIP KIT
1BODYSIDE PANEL-WHITE (2)
2GROMMET-MAINTOP
3GROMMET
4SHIELD-BURNER BOX RH
4ASHIELD-BURNER BOX LH
5SUPPORT-CONTROL PNL
6SEAL OVEN DOOR
7FRAME-FRONT
8HINGE ASSY-RH
8A318348801 Frigidaire Oven Left Side Door Hinge
9SPRING-OVEN DOOR
10WCI 3016158
11OVEN-BOTTOM
12LEG LEVELLER (4)
13SUPPORT-OVEN BOTTOM
14Rail,base ,RH
14ARAIL-BASE, LH
15OVEN LINER-SIDE RH
15AOVEN LINER-SIDE LH
15BOVEN LINER-TOP
15COVEN LINER-BACK
16MAIN BOTTOM
17AWCI 3131044
17INSULATION WRAPPER
18SUPPORT-REAR OVN (2)
19WCI 3017173
20WCI 3131045
21BURNER BOX
