G21PCW5 06 – BODY PARTS

G21PCW5 06 – BODY PARTS

Written by

in

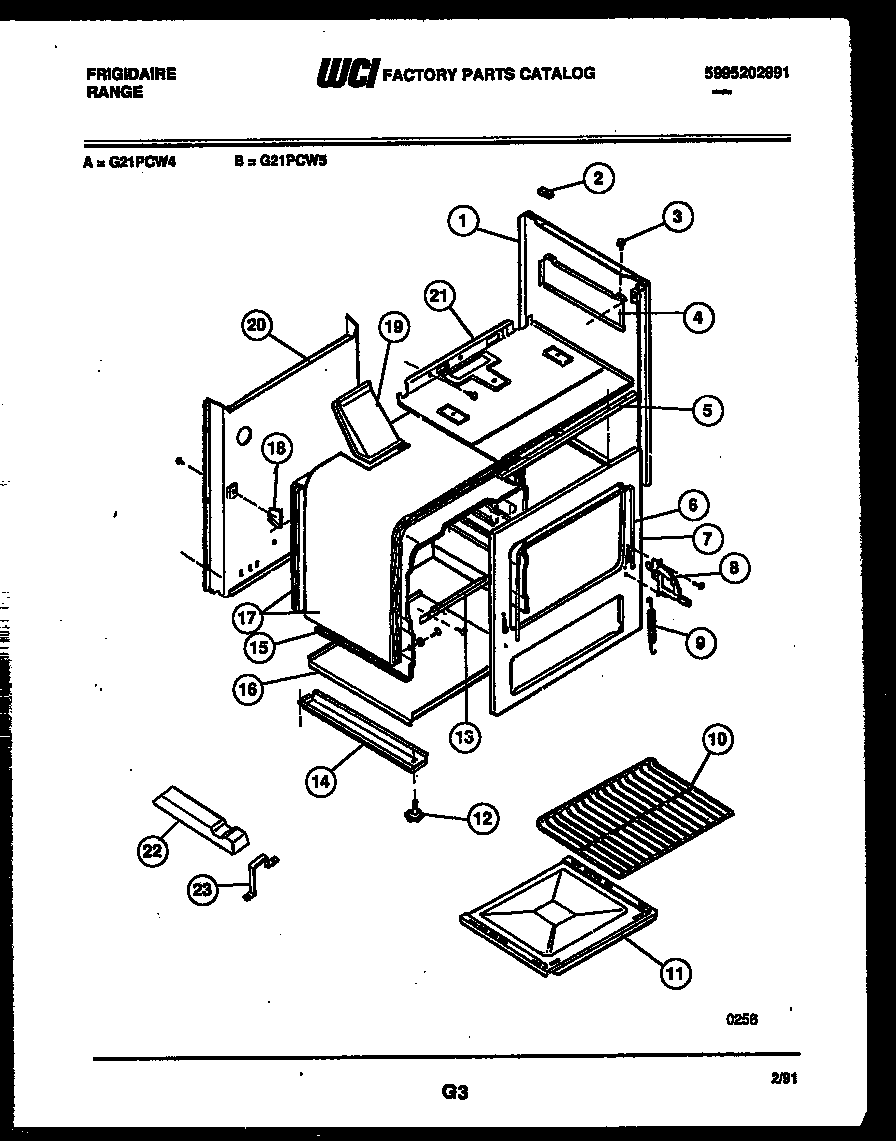

G21PCW5 06 – BODY PARTS

Products

PositionProduct
*42126ANTI-TIP KIT
1BODYSIDE PANEL-WHITE (2)
2GROMMET-MAINTOP
3GROMMET
4ASHIELD-BURNER BOX LH
4SHIELD-BURNER BOX RH
5SUPPORT-CONTROL PNL
6SEAL OVEN DOOR
7FRAME-FRONT
8A318348801 Frigidaire Oven Left Side Door Hinge
8HINGE ASSY-RH
9SPRING-OVEN DOOR
10WCI 3016158
11OVEN-BOTTOM
12LEG LEVELLER (4)
13SUPPORT-OVEN BOTTOM
14Rail,base ,RH
14ARAIL-BASE, LH
15COVEN LINER-BACK
15BOVEN LINER-TOP
15AOVEN LINER-SIDE LH
15OVEN LINER-SIDE RH
16MAIN BOTTOM
17AWCI 3131044
17INSULATION WRAPPER
18SUPPORT-REAR OVN (2)
19WCI 3017173
20WCI 5303212609
21BURNER BOX
22WCI 5303210891
23WCI 5303210892
