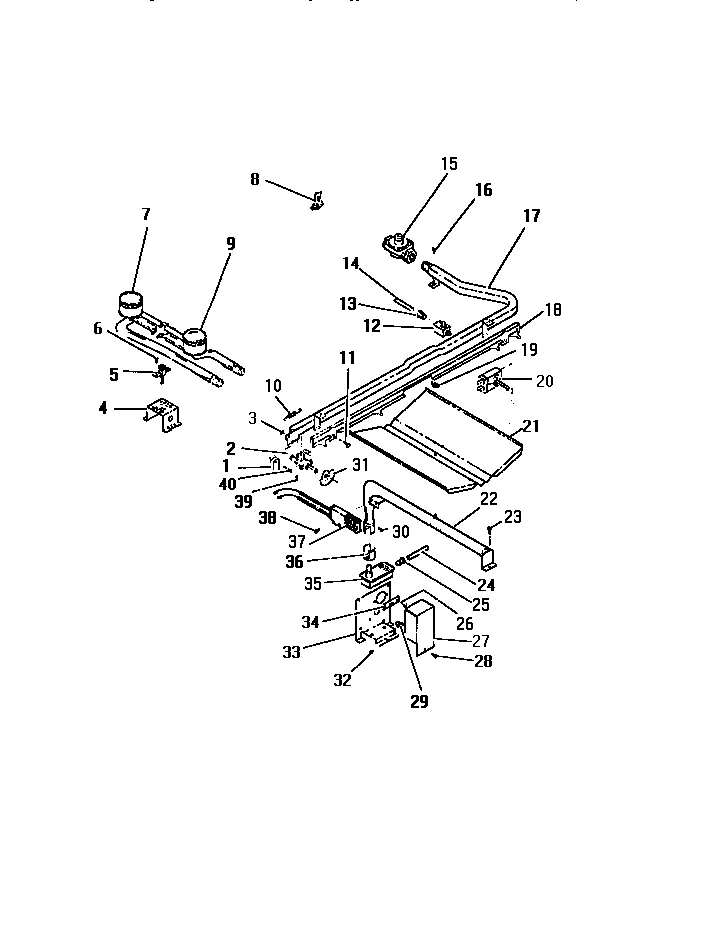

G24CW0 07 – BURNERS, IGNITORS, CONTROLS

Products

Position	Product
1	SWITCH-MICRO
2	WCI 8013940
3	WCI 8007991
4	WCI 8014002
5	IGNITOR-TOP, R.H.
5A	WCI 8014087
7	WCI 8013853
8	CLIP, CAPILLARY TUBE
9	WCI 8013852
10	WCI 8013921
11	WCI 8012509
12	SHUT OFF VALVE
15	WCI 8007974
17	WCI 8013905
18	WCI 8014020
19	WCI 8007979
20	WCI 8013926
21	WCI 8007980
22	WCI 8009418
24	3/8`` TUBE
25	WCI 8008363
27	WCI 8007986
28	WCI 8007905
29	BUSHING
31	WCI 8008002
32	WCI 8007960
33	WCI 8007987
34	WCI 8007985
35	VALVE, OVEN
36	WCI 8008010
37	IGNITOR, OVEN
38	WCI 8008011
39	SCREW (2)
40	WCI 8008000
