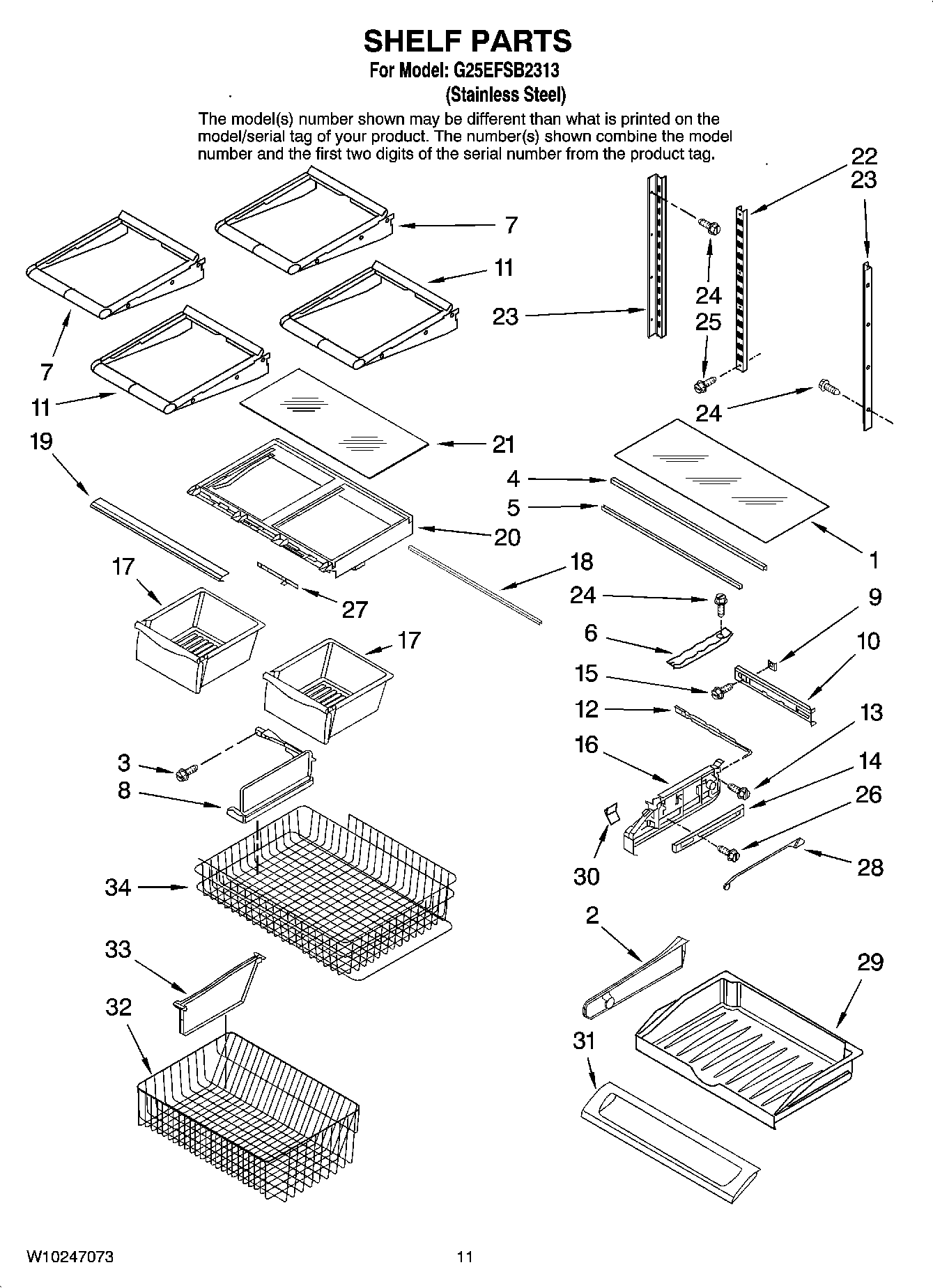

G25EFSB2313 06 – SHELF PARTS

G25EFSB2313 06 – SHELF PARTS

Written by

in

G25EFSB2313 06 – SHELF PARTS

Products

PositionProduct
1Glass, Pantry
2WP67002759 Whirlpool Refrigerator Divider
3Screw
4WP67006010 Whirlpool Refrigerator Shelf Trim
6WP67001719 Whirlpool Refrigerator Track
7Shelf, Glide (2)
8Divider, Upper Basket
967002329 Whirlpool Refrigerator Pantry Gasket
1012656202 Whirlpool Refrigerator Housing
11Shelf, Sta (2)
12WP67003793 Whirlpool Refrigerator Temperature Slide
13WP67006415 Whirlpool Refrigerator Screw
14WPW10235370 Whirlpool Refrigerator Glide
16W10874836 Whirlpool Endcap Assembly Left Hand and Right
17Pan, Crisper (2)
18WP12227305WD Whirlpool Drawer Support
19Trim, Crisper
20WP67003854 Whirlpool Shelf Frame
21WP67006704 Whirlpool Glass Crisper Cover
2267001073 Whirlpool Refrigerator Center Ladder
2367002489 Whirlpool Refrigerator Ladder L/R Side
2467006425 Whirlpool Refrigerator Screw
25W10709795 Whirlpool Refrigerator Screw
26WP98165 Whirlpool Screw
27SLIDE
28WP67003795 Whirlpool Refrigerator Temperature Control Bar
29W11490183 Whirlpool Refrigerator Utility Pan
30W11498983 Whirlpool Refrigerator Knob
31WP67005930 Whirlpool Refrigerator Pantry Drawer Front Lid
32WPW10503184 Whirlpool Refrigerator Freezer Basket
33Divider, Lower Basket
3467004987 Whirlpool Refrigerator Upper Basket
