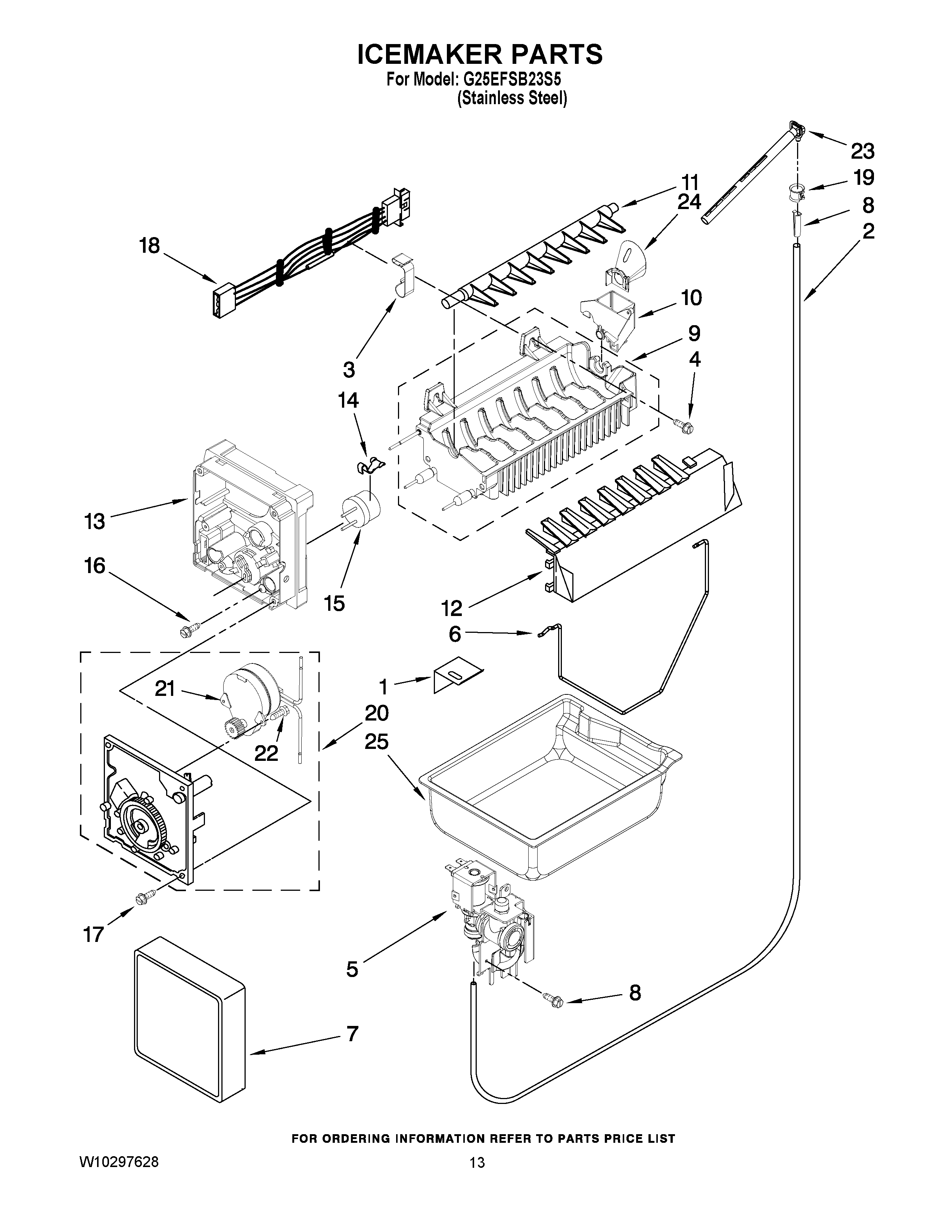

G25EFSB23S5 07 – ICEMAKER PARTS

G25EFSB23S5 07 – ICEMAKER PARTS

Written by

in

G25EFSB23S5 07 – ICEMAKER PARTS

Products

PositionProduct
1WP2256087 Whirlpool Refrigerator Bracket
2W11120581 Whirlpool Refrigerator Water Tube
3W11456069 Whirlpool Refrigerator Clamp
4W10001240 Whirlpool Refrigerator Screw
5VALVE-INLET
6W11285509 Whirlpool Refrigerator Shut-Off Arm
7WPW10289690 Whirlpool Ice Maker Cover
8WPA3223101 Whirlpool Refrigerator Insert PL
9WPW10122523 Whirlpool Refrigerator Ice Mold
10W10122561 Whirlpool Refrigerator Cup Fill
11WP627843 Whirlpool Refrigerator Ejector Arm
12WPW10122563 Whirlpool Refrigerator Stripper Arm
13WP2195914 Whirlpool Refrigerator Ice Maker Housing
14WP2315522 Whirlpool Refrigerator Clip
15WP2321258 Whirlpool Refrigerator Bimetallic Defrost Assembly
16W10001280 Whirlpool Refrigerator Screw
17WP489464 Whirlpool Refrigerator Screw
18Harness, Ice Maker
19WPM0114003 Whirlpool Microwave Speed Clip Clamp
20W10190933 Whirlpool Refrigerator Motor Assembly
21CABINET (NOT A SERVICEABLE PART)
22489136 Whirlpool Refrigerator Screw
23W11176463 Whirlpool Refrigerator Water Tube
2412918001 Whirlpool Refrigerator Funnel
25WPW10171529 Whirlpool Refrigerator Ice Pan
100WPW10190972 Whirlpool Refrigerator Icemaker
