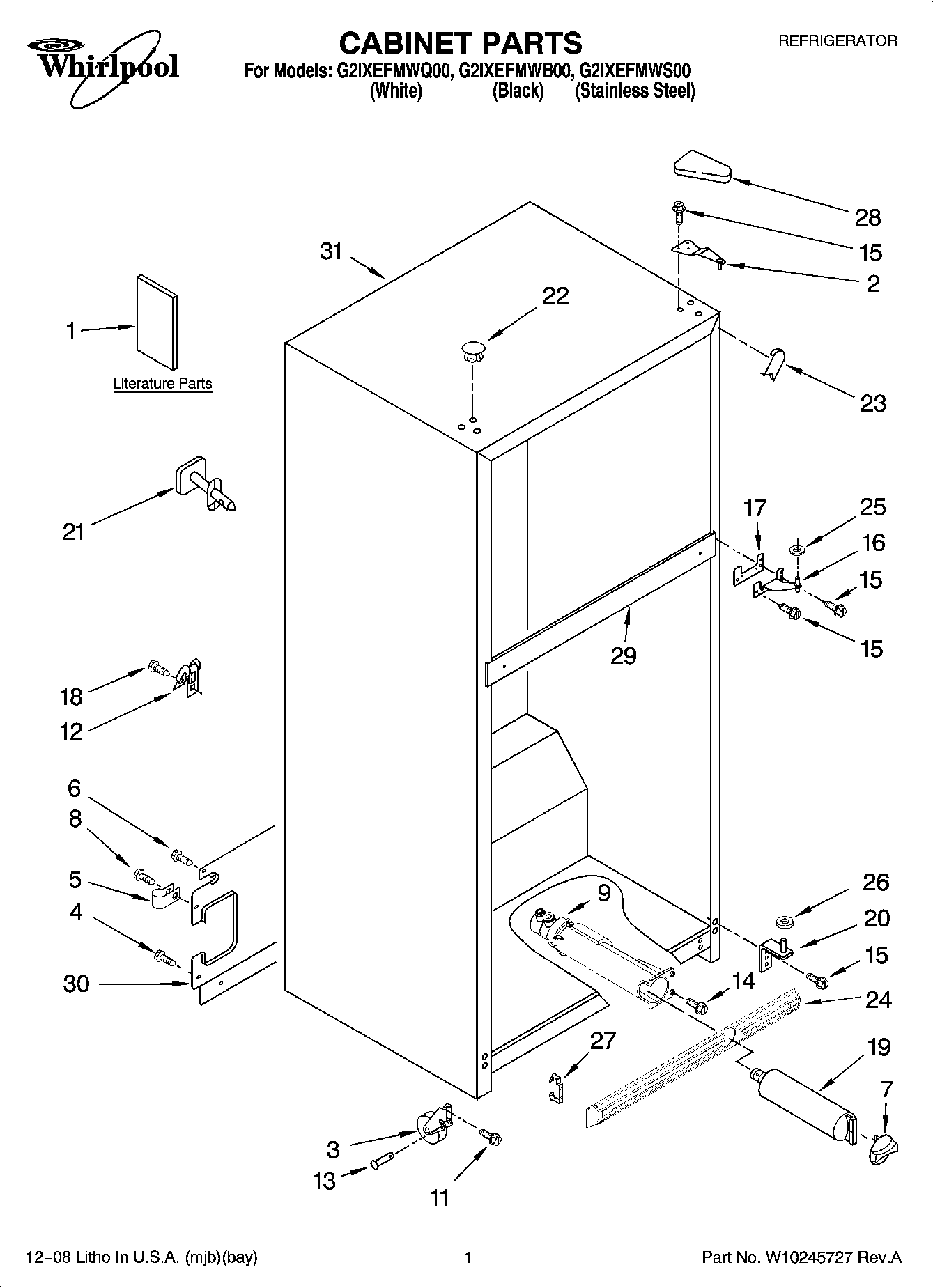

G2IXEFMWB00 01 – CABINET PARTS

Products

Position	Product
1	Modular Icemaker Service Sheet
1	Energy Label
1	Customer Instruct Sheet, Wtr Filter
1	Service & Wiring Sheet
1	Use & Care Guide (Bilingual)
1	Use & Care Guide (Trilingual)
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
5	WP488366 Whirlpool Refrigerator Clamp
6	WP489427 Whirlpool Refrigerator Screw
7	WP2186494B Whirlpool Refrigerator Filter Cap
7	WP2186494W Whirlpool Water Filter Cap
8	WP488787 Whirlpool Refrigerator Screw
9	WP2225521 Whirlpool Water Filter Housing
11	WP3400504 Whirlpool Refrigerator Screw
12	549193 Whirlpool Refrigerator Power Clamp
13	W11594405 Whirlpool Axle
14	SCREW
15	WP489497 Whirlpool Screw
16	WP2254618 Whirlpool Center Door Hinge
17	WP2183852 Whirlpool Refrigerator Shim
18	WP489464 Whirlpool Refrigerator Screw
19	EDR6D1 Whirlpool EveryDrop® Ice and Water Refrigerator Filter 6 (Dark Bl
20	WP2254473 Whirlpool Refrigerator Door Hinge
21	Fitting, Water Tube (Not Serviced)
22	WP2183998 Whirlpool Refrigerator Button Plug
22	WP2151652 Whirlpool Refrigerator Button Plug
23	WPW10283959 Whirlpool Refrigerator Filler
23	W11252732 Whirlpool Refrigerator Filler
24	Grille (Includes Illus. 27) (White)
24	Grille (Includes Illus. 27) (Black)
25	WP489467 Whirlpool Hinge Shim
26	WP487576 Whirlpool Washer
27	CLIP, GRILLE
28	WP2213363 Whirlpool Refrigerator Cover
28	WP2213360 Whirlpool Refrigerator Cover
29	Rail, Center (Not Serviced)
30	Cover, Unit
31	Cabinet, (Not A Serviceable Part)
