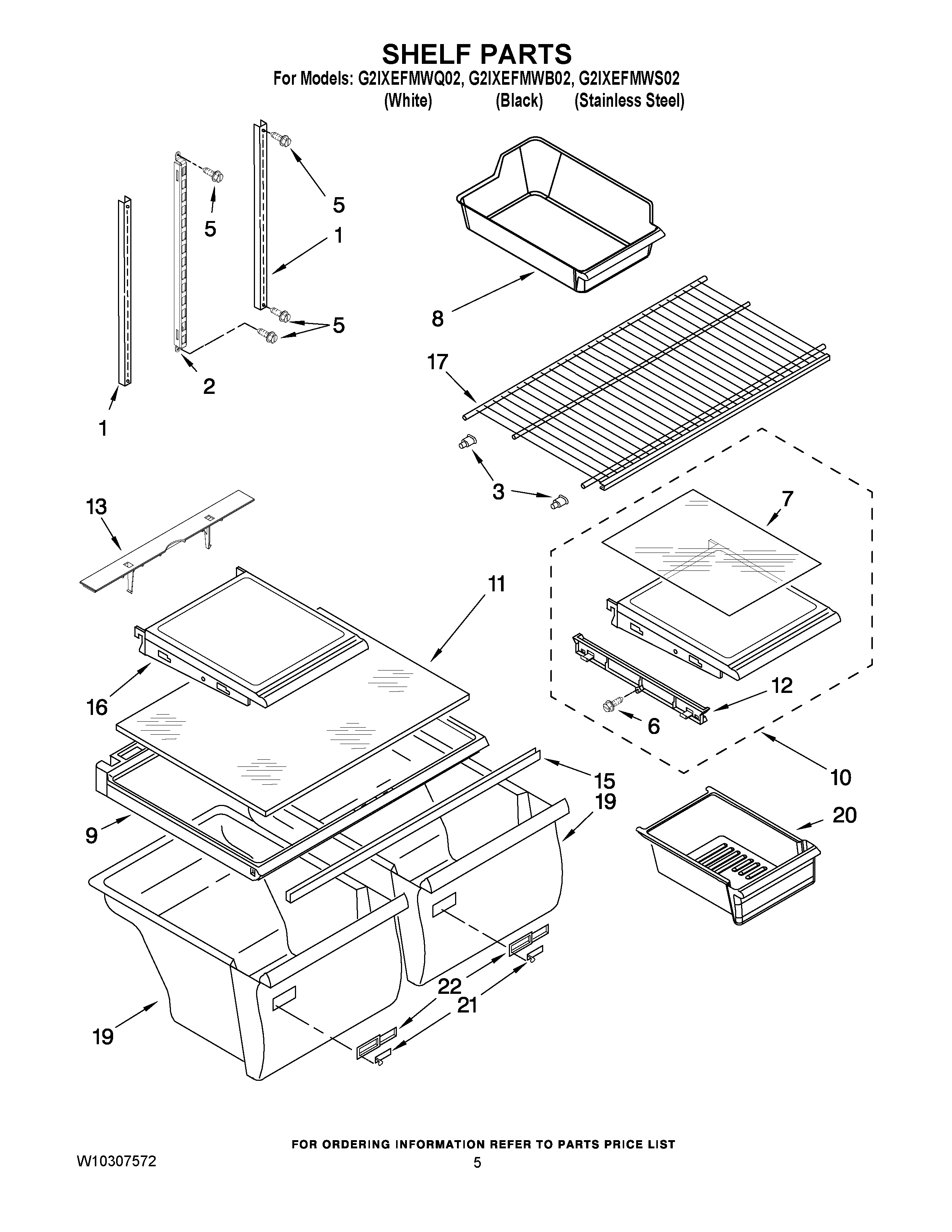

G2IXEFMWB02 03 – SHELF PARTS

G2IXEFMWB02 03 – SHELF PARTS

Written by

in

G2IXEFMWB02 03 – SHELF PARTS

Products

PositionProduct
1Shelf, Ladder (2)
2Shelf, Ladder Center
32163762 Whirlpool Refrigerator Cup Assembly
5WP489478 Whirlpool Refrigerator Screw
6WP3400065 Whirlpool Refrigerator Screw
7Glass, Shelf
82254352A Whirlpool Refrigerator Ice Container
9WP2314549 Whirlpool Refrigerator Cover
10SHELF ASSEMBLY
11WP2176225 Whirlpool Glass Shelf
12Track, Pan Slide (2)
13Deflector-Air
15WP2172748 Whirlpool Drawer Support
16WP999520 Whirlpool Refrigerator Glass Shelf
17Shelf, Freezer
19W10854037 Whirlpool Refrigerator Crisper Pan
20WP2218132K Whirlpool Crisper Meat Pan
21WP2176222 Whirlpool Refrigerator Slide
22WP2212446 Whirlpool Refrigerator Control Body
