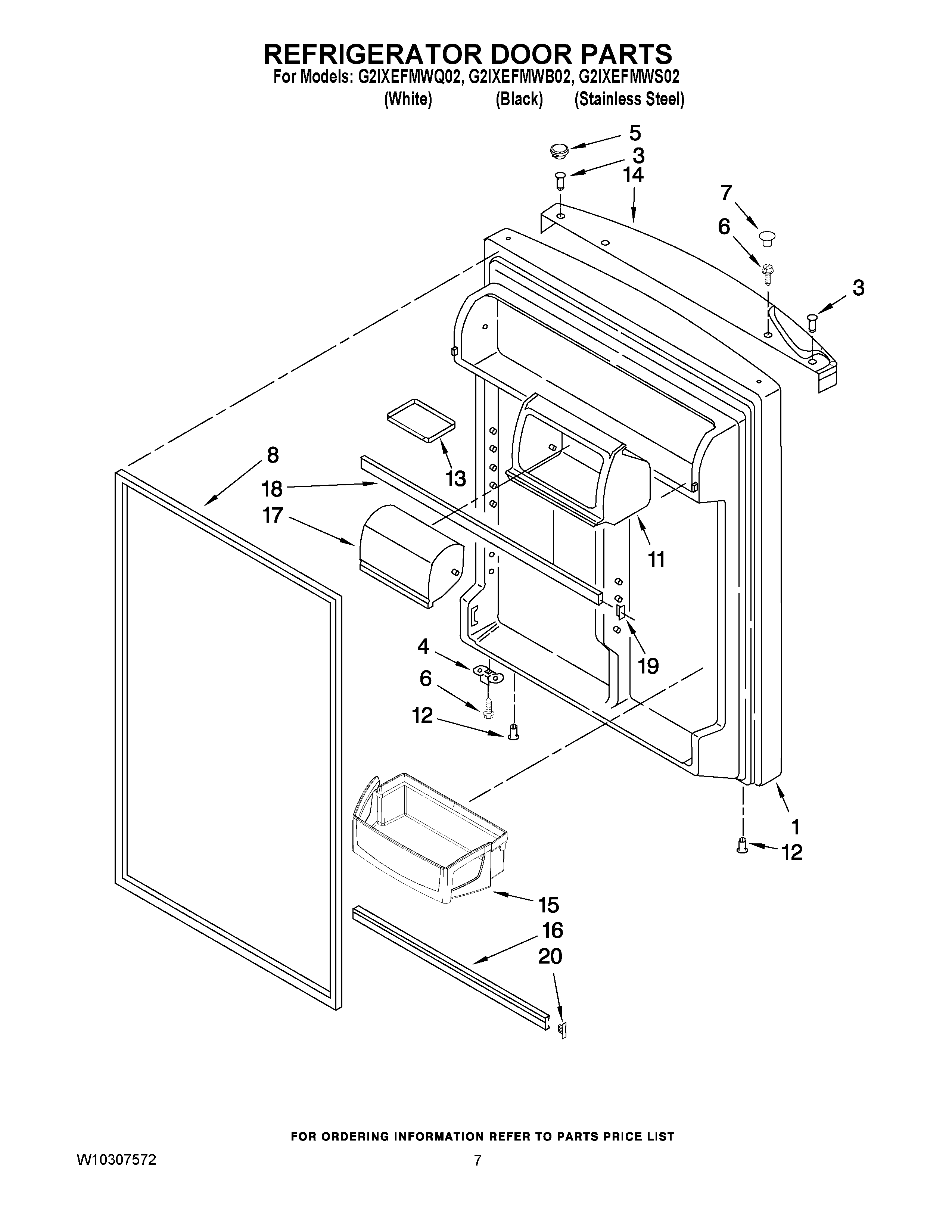

G2IXEFMWB02 04 – REFRIGERATOR DOOR PARTS

G2IXEFMWB02 04 – REFRIGERATOR DOOR PARTS

Written by

in

G2IXEFMWB02 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Illus. 8 & 12) (Black)
1REFRIGERATOR DOOR (INCLUDES ILLUS. 8 & 12) (STAINLESS)
1Refrigerator Door (Includes Illus. 8 & 12) (White)
3WP2183003 Whirlpool Thimble
4W11745278 Whirlpool Bracket
5HOLE PLUG, ENDCAP (BLACK)
5HOLE PLUG, ENDCAP (WHITE)
6WP681249 Whirlpool Screw Assembly
7WP2212651 Whirlpool Refrigerator Button Plug
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
82159061 Whirlpool Refrigerator Door Gasket
82177311 Whirlpool Refrigerator Magnetic Door Gasket
11Housing Compartment
12WP2314293 Whirlpool Refrigerator Thimble
13Tray, Door
14Endcap, Handle (Black)
14Endcap, Handle (White)
15Bin, Door Shelf (3)
16WPW10421486 Whirlpool Refrigerator Door Trim
17DOOR-COMP
18Trim, Door Shelf
19Endcap, Door Trim
20WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
