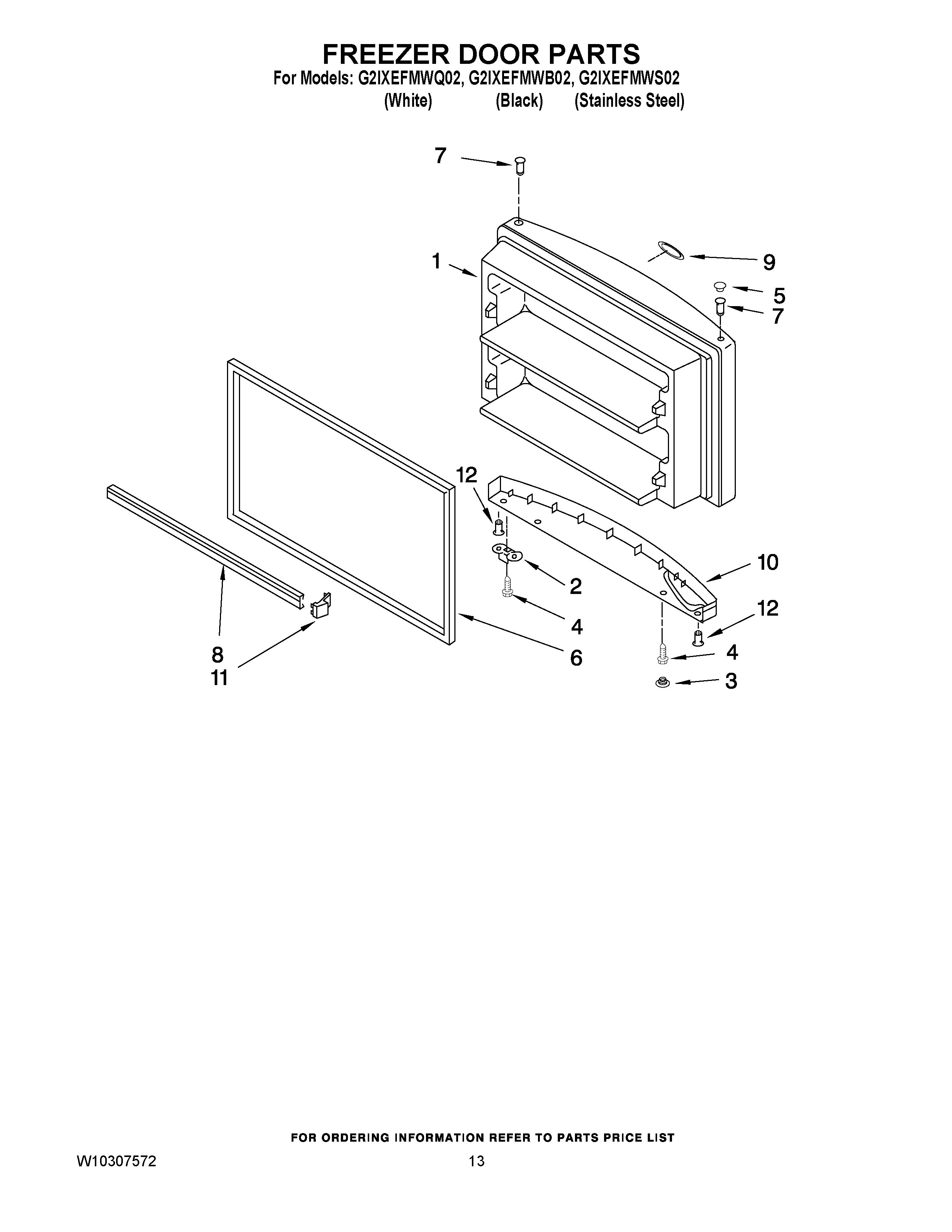

G2IXEFMWB02 07 – FREEZER DOOR PARTS

G2IXEFMWB02 07 – FREEZER DOOR PARTS

Written by

in

G2IXEFMWB02 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes Illus. 6 & 7) (White)
1Freezer Door (Includes Illus. 6 & 7) (Black)
1FREEZER DOOR (INCLUDES ILLUS. 6 & 7) (STAINLESS)
2W11745278 Whirlpool Bracket
3HOLE PLUG, ENDCAP (BLACK)
3HOLE PLUG, ENDCAP (WHITE)
4WP681249 Whirlpool Screw Assembly
5WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
5WP2212651 Whirlpool Refrigerator Button Plug
62177310 Whirlpool Refrigerator Door Gasket
6WHITE DOOR GASKET-FIP
7WP2314293 Whirlpool Refrigerator Thimble
8Trim, Door Shelf (2)
9Nameplate
10Endcap, Handle (White)
10Endcap, Handle (Black)
11ENDCAP
12WP2183003 Whirlpool Thimble
