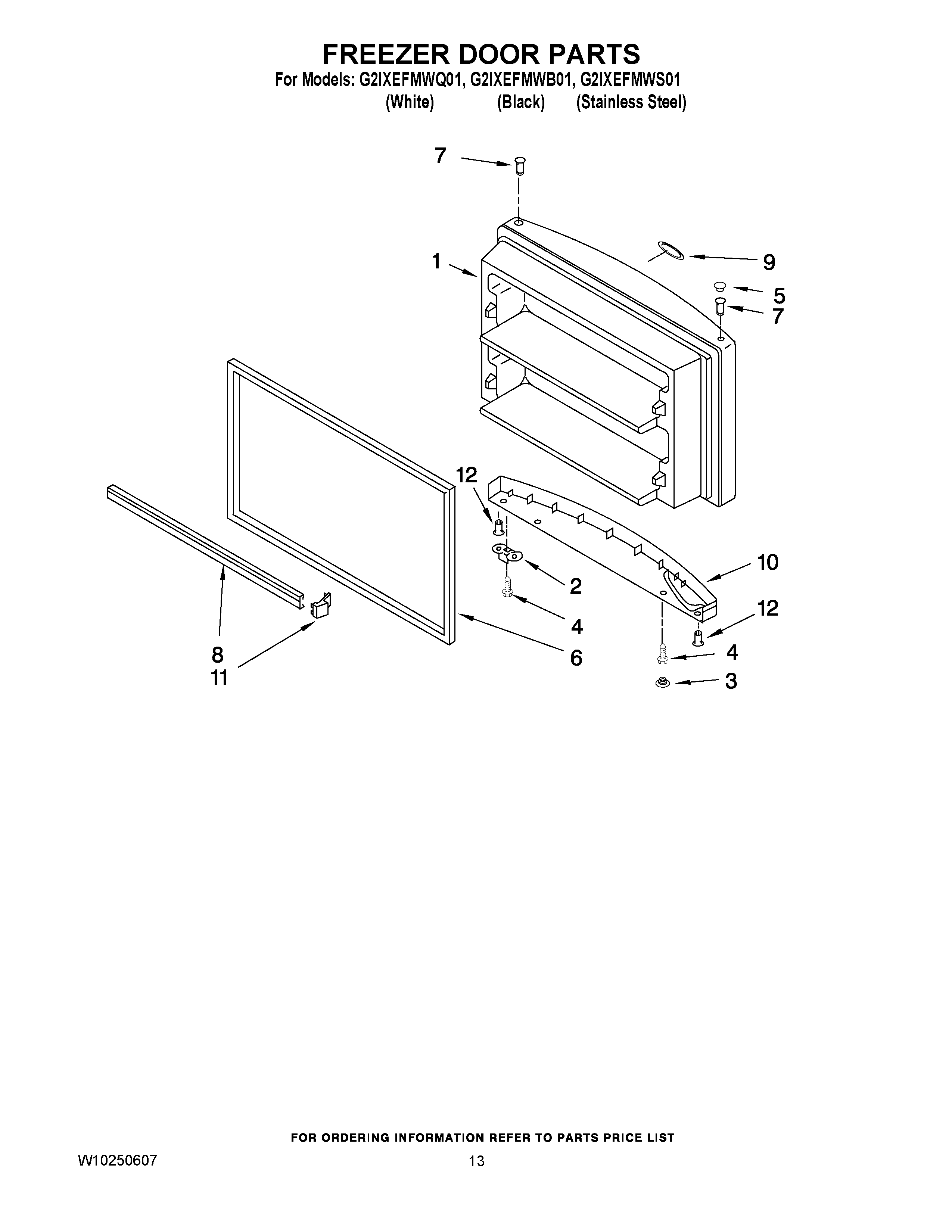

G2IXEFMWS01 07 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes Illus. 6 & 7) (Stainless VCM)
1	Freezer Door (Includes Illus. 6 & 7) (Stainless)
1	Freezer Door (Includes Illus. 6 & 7) (Black)
1	Freezer Door (Includes Illus. 6 & 7) (White)
2	W11745278 Whirlpool Bracket
3	HOLE PLUG, ENDCAP (BLACK)
3	HOLE PLUG, ENDCAP (WHITE)
4	WP681249 Whirlpool Screw Assembly
5	WP2212651 Whirlpool Refrigerator Button Plug
5	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
6	2177310 Whirlpool Refrigerator Door Gasket
6	WHITE DOOR GASKET-FIP
7	WP2314293 Whirlpool Refrigerator Thimble
8	Trim, Door Shelf (2)
9	Nameplate
10	Endcap, Handle (Black)
10	Endcap, Handle (White)
11	ENDCAP
12	WP2183003 Whirlpool Thimble
