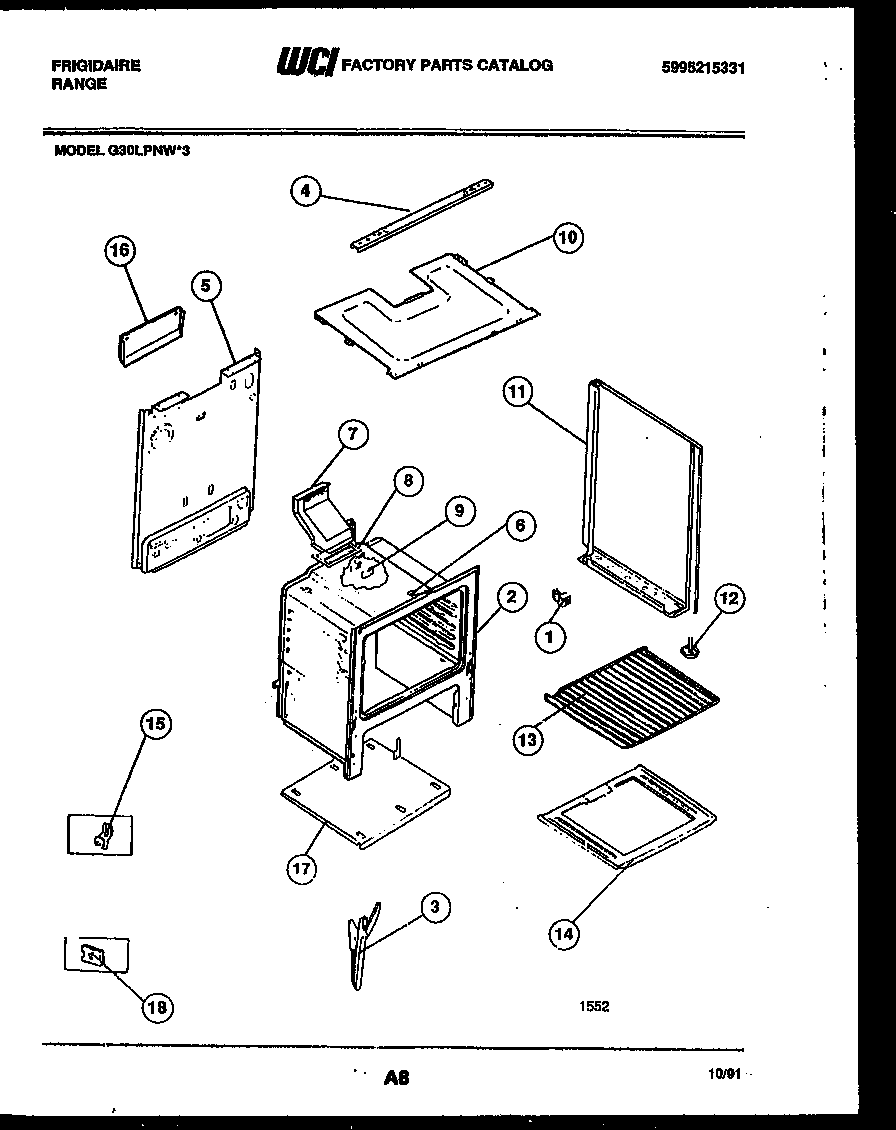

G30LPNL3 07 – BODY PARTS

Products

PositionProduct
*54549ANTI-TIP KIT (NOT ILLUSTRATED)
*545483051218 Frigidaire Oven Plate
*54549SHIELD-FLUE, (NON-ILLUSTRATED)
1SPACER-BODYSIDE, (8)
3CHAN-DOOR HINGE (2)
4WCI 3203394
5WCI 3203082
6COVER-OVEN FRONT
7316204402 Frigidaire Oven Flue
8316542102 Frigidaire Flue Gasket
9COVER-IGNITOR
10BURNER BOX BOTTOM
11AWCI 5303269545
11WCI 5303269543
12SCREW-LEVELING
13316067902 Frigidaire Oven Rack
14BINSULATION, OVEN WRAPPER
14BTTM-OVEN
14AINSUL – OVEN BACK (NON-ILLUSTRATED)
15WCI 5303280586
16COVER-VENT
16A316064600 Frigidaire Oven Support
17WCI 5303270160
183203010 Frigidaire Clip
