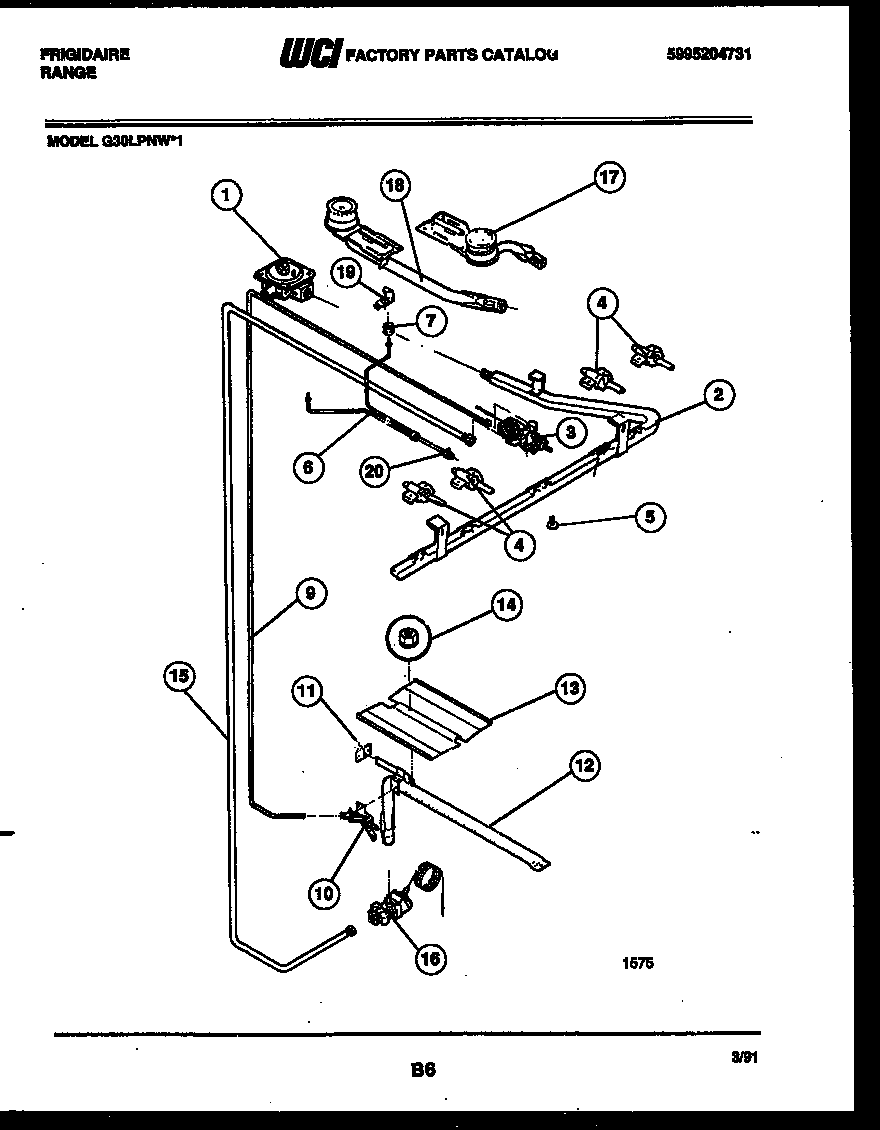

G30LPNW1 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

Position	Product
1	REGULATOR-PRESSURE, LP
2	WCI 3204972
3	WCI 3204974
4	WCI 5303271914
5	BOLT VALVE MTG
6	TUBING-TOP PILOT, DUAL
7	CAP-TOP PILOT, (2)
9	Tubing`thermo/pilot `3/16 ,alum
10	WCI 3203395
11	WCI 3018603
12	WCI 3203391
13	WCI 3203265
14	5303013272 Frigidaire Oven Nut
15	TUBE - ALUM THERMO./SAFETY W/ FIT.
16	WCI 5303271922
17	5304506427 Frigidaire Oven Range Surface Burner (White)
18	5304506426 Frigidaire Oven Top Rear Burner
19	SHIELD-PILOT, STAINLESS STEEL, (2)
