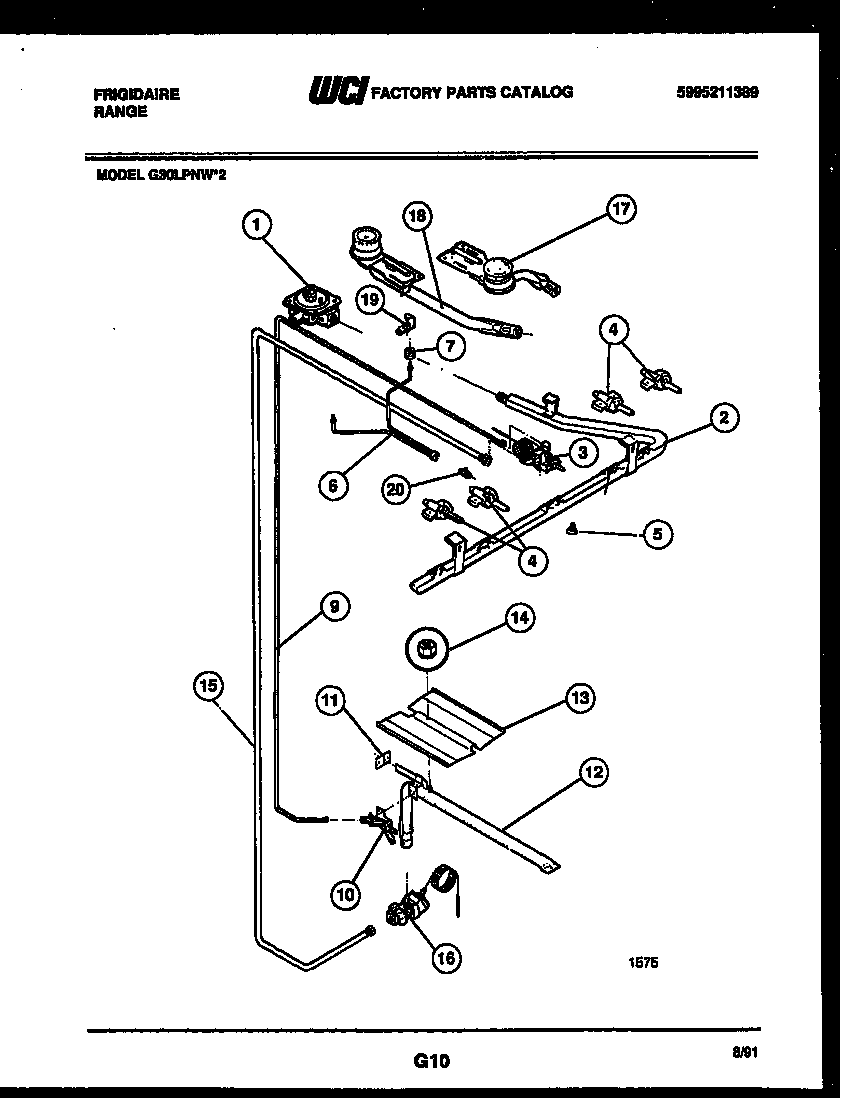

G30LPNW2 06 – BURNER, MANIFOLD AND GAS CONTROL

G30LPNW2 06 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

G30LPNW2 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
1REGULATOR-PRESSURE, LP
2WCI 3204972
3WCI 3204974
4WCI 5303271914
5BOLT VALVE MTG
6TUBING-TOP PILOT, DUAL
7CAP-TOP PILOT, (2)
9Tubing`thermo/pilot `3/16 ,alum
10WCI 3203395
11WCI 3018603
12WCI 3203391
13WCI 3203265
145303013272 Frigidaire Oven Nut
15TUBE – ALUM THERMO./SAFETY W/ FIT.
16WCI 5303271922
175304506427 Frigidaire Oven Range Surface Burner (White)
185304506426 Frigidaire Oven Top Rear Burner
19SHIELD-PILOT, STAINLESS STEEL, (2)
