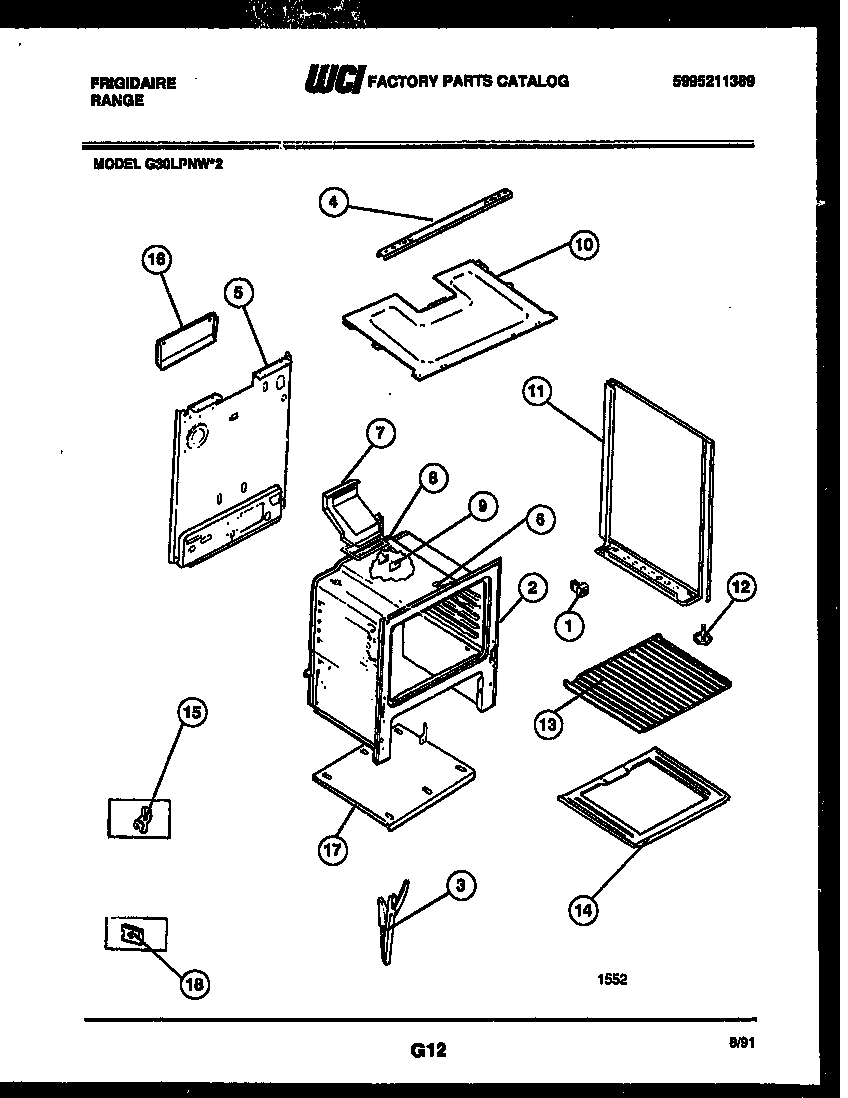

G30LPNW2 07 – BODY PARTS

Products

PositionProduct
*50396SHIELD-FLUE, (NON-ILLUSTRATED)
*50396ANTI-TIP KIT (NOT ILLUSTRATED)
*503963051218 Frigidaire Oven Plate
1SPACER-BODYSIDE, (8)
3WCI 316007002
4WCI 3203394
5WCI 3203082
6COVER-OVEN FRONT
7316204402 Frigidaire Oven Flue
8316542102 Frigidaire Flue Gasket
9COVER-IGNITOR
10BURNER BOX BOTTOM
11PNL-B/S-RH-WHITE
11PNL-B/S-LH-WHITE
12SCREW-LEVELING
13316067902 Frigidaire Oven Rack
14AINSUL – OVEN BACK (NON-ILLUSTRATED)
14BTTM-OVEN
14BINSULATION, OVEN WRAPPER
155303284616 Frigidaire Range Bulb Clip Thermostat
16COVER-VENT
16A316064600 Frigidaire Oven Support
17WCI 5303270160
183203010 Frigidaire Clip
