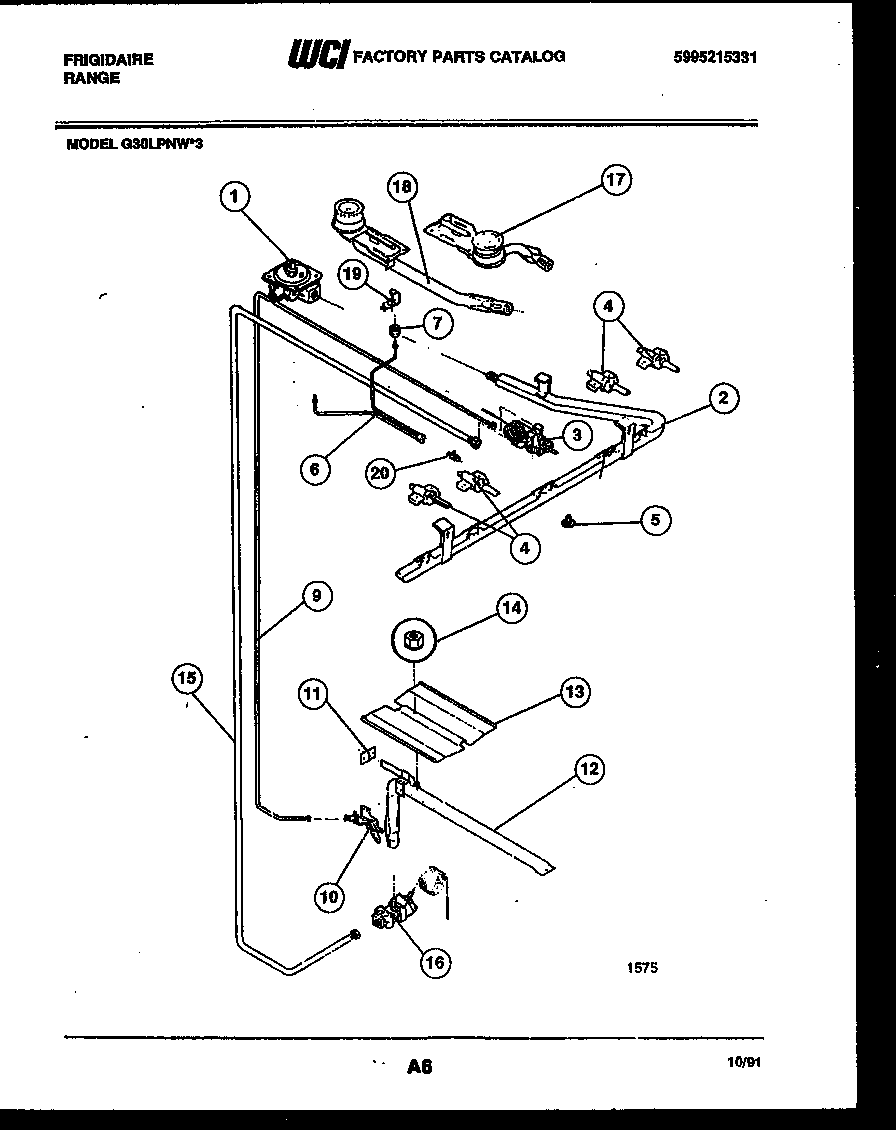

G30LPNW3 06 – BURNER, MANIFOLD AND GAS CONTROL

G30LPNW3 06 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

G30LPNW3 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
*54545SCREW-THERMOSTAT, (2) (NOT ILLUSTRATED)
1REGULATOR-PRESSURE, LP
2WCI 5303280588
3THERMOSTAT
5WCI 5303264845
6TUBING-TOP PILOT, DUAL
7CAP-TOP PILOT, (2)
9Tubing`thermo/pilot `3/16 ,alum
10WCI 5303280589
11WCI 3018603
12WCI 5303280585
13WCI 3203265
145303013272 Frigidaire Oven Nut
15TUBE – ALUM THERMO/SAFETY W/ FIT
16WCI 5303281930
175304506427 Frigidaire Oven Range Surface Burner (White)
185304506426 Frigidaire Oven Top Rear Burner
19SHIELD-PILOT, STAINLESS STEEL, (2)
