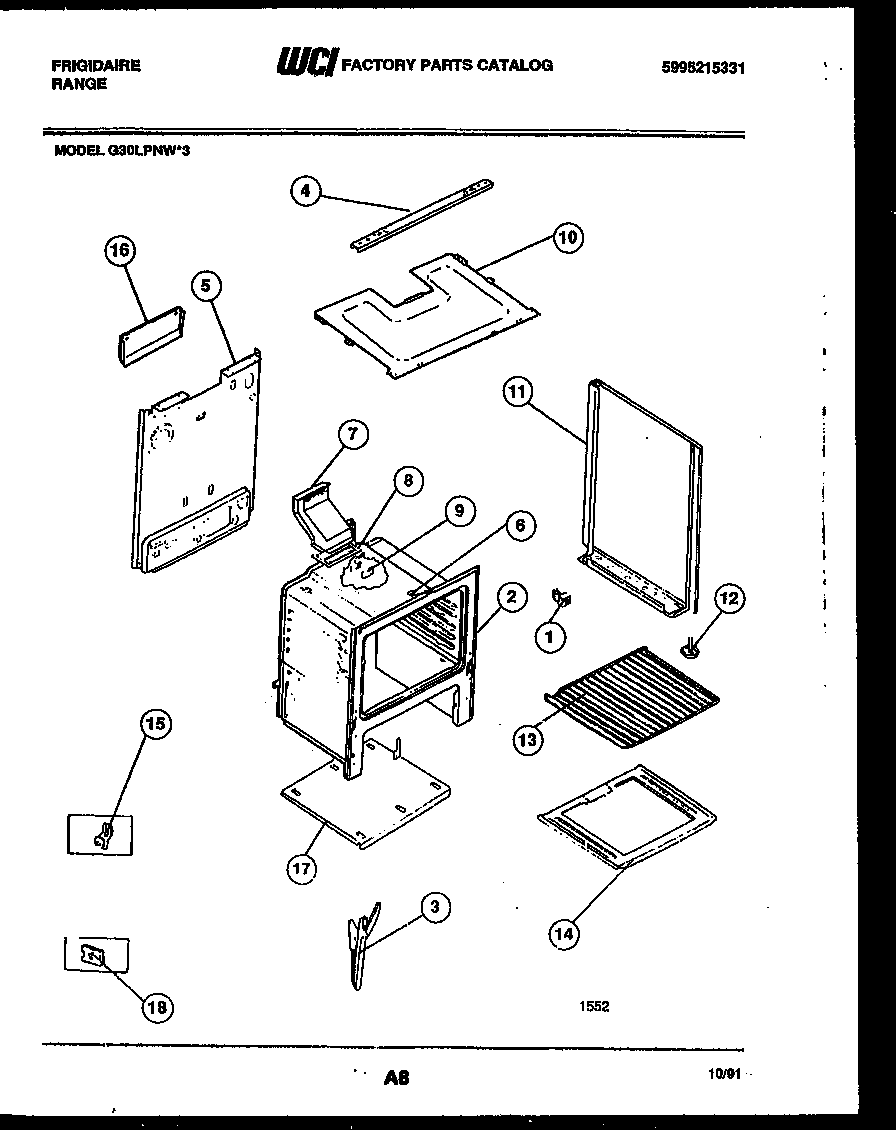

G30LPNW3 07 – BODY PARTS

Products

Position	Product
*54549	ANTI-TIP KIT (NOT ILLUSTRATED)
*54548	3051218 Frigidaire Oven Plate
*54549	SHIELD-FLUE, (NON-ILLUSTRATED)
1	SPACER-BODYSIDE, (8)
3	CHAN-DOOR HINGE (2)
4	WCI 3203394
5	WCI 3203082
6	COVER-OVEN FRONT
7	316204402 Frigidaire Oven Flue
8	316542102 Frigidaire Flue Gasket
9	COVER-IGNITOR
10	BURNER BOX BOTTOM
11	PNL-B/S-RH-WHITE
11A	PNL-B/S-LH-WHITE
12	SCREW-LEVELING
13	316067902 Frigidaire Oven Rack
14A	INSUL – OVEN BACK (NON-ILLUSTRATED)
14B	INSULATION, OVEN WRAPPER
14	BTTM-OVEN
15	WCI 5303280586
16A	316064600 Frigidaire Oven Support
16	COVER-VENT
17	WCI 5303270160
18	3203010 Frigidaire Clip
