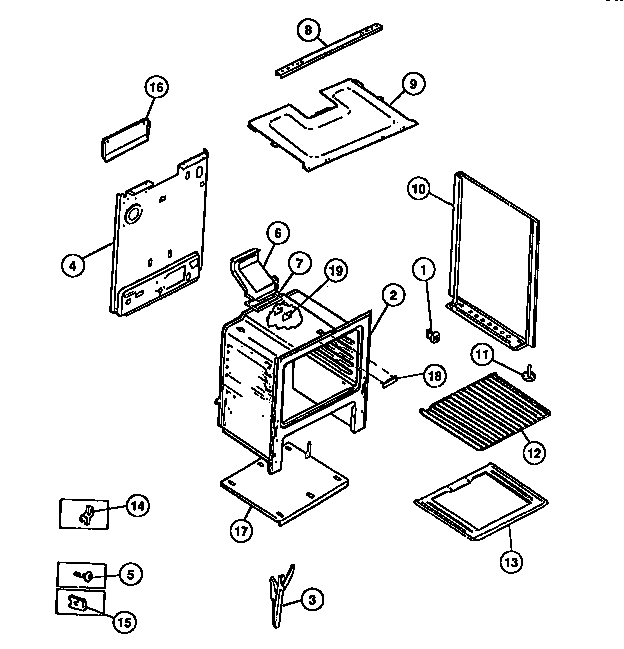

| 1 | SPACER-BODYSIDE, (8) |
| 2 | WIRING HARNESSES ARE NOT AVAILABLE FOR THIS MODEL |
| 3 | CHAN-DOOR HINGE (2) |
| 4 | WCI 3203082 |
| 5 | 316282700 Frigidaire Oven Screw |
| 6 | 316204402 Frigidaire Oven Flue |
| 7 | 316542102 Frigidaire Flue Gasket |
| 8 | CHANNEL-BURNER BOX |
| 9 | BURNER BOX BOTTOM |
| 10C | WCI 5303269545 |
| 10A | WCI 5303269543 |
| 11 | SCREW-LEVELING |
| 12 | 316067902 Frigidaire Oven Rack |
| 13A | INSUL - OVEN BACK (NON-ILLUSTRATED) |
| 13 | BTTM-OVEN |
| 13B | INSULATION, OVEN WRAPPER |
| 14 | 5303284616 Frigidaire Range Bulb Clip Thermostat |
| 15 | 3203010 Frigidaire Clip |
| 16 | COVER-VENT |
| 16A | 316064600 Frigidaire Oven Support |
| 17 | WCI 3131180 |
| 18 | COVER-OVEN FRONT |
| 18B | SHIELD-FLUE, (NON-ILLUSTRATED) |
| 18A | ANTI-TIP KIT (NOT ILLUSTRATED) |
| 19A | 5304515659 Frigidaire Oven Power Cord |
| 19 | COVER-IGNITOR |
| 19G | DIAGRAM, WIRING (NOT FOR PURCHASE) |
| 19D | WCI 3131192 |
| 19F | WCI 3131660 |
| 19B | WCI 08067961 |
| 19E | WCI 3131190 |
| 19C | COVER-POWER CORD, (NON-ILLUSTRATED) |
