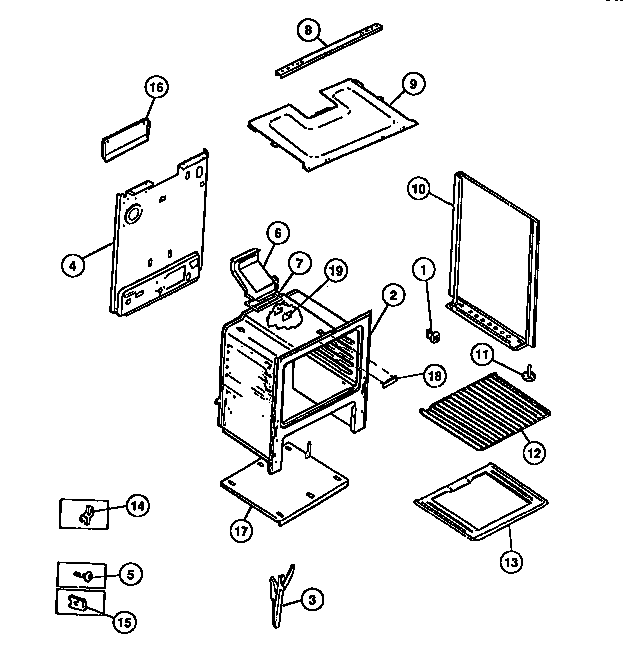

G30NW1 07 – BODY

Products

Position	Product
1	SPACER-BODYSIDE, (8)
2	WIRING HARNESSES ARE NOT AVAILABLE FOR THIS MODEL
3	CHAN-DOOR HINGE (2)
4	WCI 3203082
5	316282700 Frigidaire Oven Screw
6	316204402 Frigidaire Oven Flue
7	316542102 Frigidaire Flue Gasket
8	CHANNEL-BURNER BOX
9	BURNER BOX BOTTOM
10B	PNL-B/S-LH-WHITE
10	PNL-B/S-RH-WHITE
11	SCREW-LEVELING
12	316067902 Frigidaire Oven Rack
13A	INSUL – OVEN BACK (NON-ILLUSTRATED)
13B	INSULATION, OVEN WRAPPER
13	BTTM-OVEN
14	5303284616 Frigidaire Range Bulb Clip Thermostat
15	3203010 Frigidaire Clip
16	COVER-VENT
16A	316064600 Frigidaire Oven Support
17	WCI 3131180
18	COVER-OVEN FRONT
18B	SHIELD-FLUE, (NON-ILLUSTRATED)
18A	ANTI-TIP KIT (NOT ILLUSTRATED)
19C	COVER-POWER CORD, (NON-ILLUSTRATED)
19F	WCI 3131660
19	COVER-IGNITOR
19G	DIAGRAM, WIRING (NOT FOR PURCHASE)
19D	WCI 3131192
19A	5304515659 Frigidaire Oven Power Cord
19B	WCI 08067961
19E	WCI 3131190
