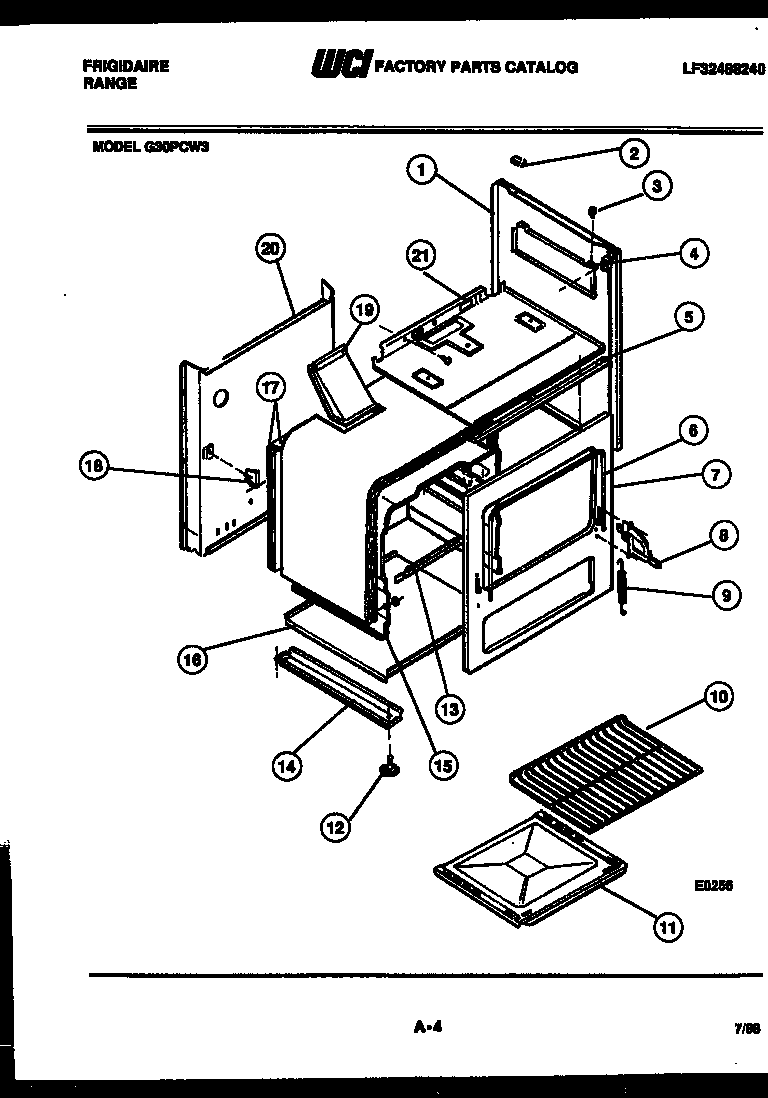

G30PCW3 04 – BODY PARTS

Products

Position	Product
1	BODYSIDE (WHITE) LH & RH
2	WCI 08068052
3	WCI 08008012
4	SHIELD – HEAT RH
4A	WCI 08011552
5	WCI 08014027
6	WCI 08008022
7	WCI 3017790
8	318348801 Frigidaire Oven Left Side Door Hinge
8	HINGE – DOOR RH
9	WCI 08011484
10	WCI 08068027
11	WCI 3018282
12	SCREW – LEVELING (4)
13	WCI 08008036
14	BASE-RAIL (2)
15B	LINER – TOP
15	OVEN LINER-SIDE RH
15A	OVEN LINER-SIDE LH
15C	WCI 3018995
16	BOTTOM – OVEN
17A	WCI 3017172
17	WCI 3017171
18	SUPPORT – REAR (2)
19	WCI 3017173
20	WCI 08012600
21	WCI 3017174
