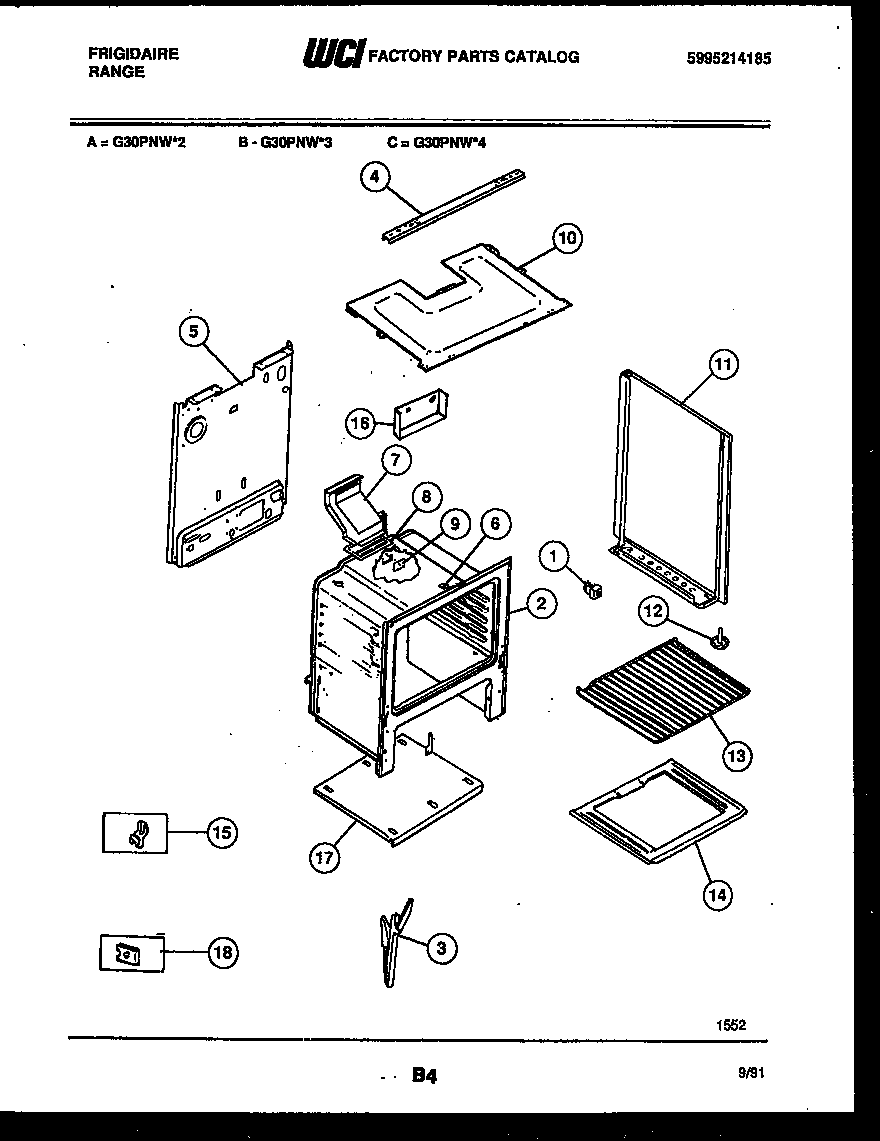

G30PNL2 07 – BODY PARTS

G30PNL2 07 – BODY PARTS

Written by

in

G30PNL2 07 – BODY PARTS

Products

PositionProduct
*54624SHIELD-FLUE, (NON-ILLUSTRATED)
*546243051218 Frigidaire Oven Plate
*54624ANTI-TIP KIT (NOT ILLUSTRATED)
1SPACER-BODYSIDE, (8)
3CHAN-DOOR HINGE (2)
4WCI 3203394
5WCI 3203082
6COVER-OVEN FRONT
7316204402 Frigidaire Oven Flue
8316542102 Frigidaire Flue Gasket
9COVER-IGNITOR
10BURNER BOX BOTTOM
11WCI 5303269543
11WCI 5303269545
12SCREW-LEVELING
13316067902 Frigidaire Oven Rack
14BINSULATION, OVEN WRAPPER
14AINSUL – OVEN BACK (NON-ILLUSTRATED)
14BTTM-OVEN
155303284616 Frigidaire Range Bulb Clip Thermostat
16COVER-VENT
16A316064600 Frigidaire Oven Support
17WCI 5303270160
183203010 Frigidaire Clip
