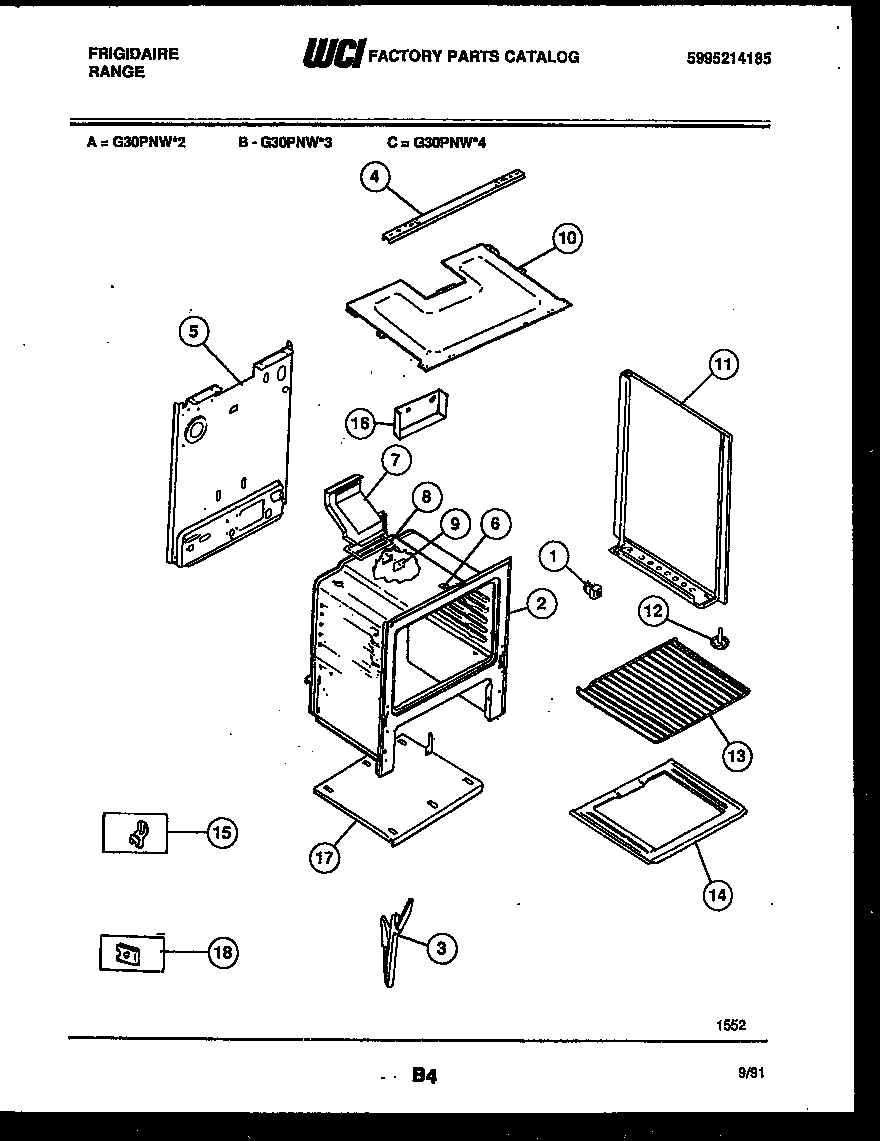

G30PNL3 07 – BODY PARTS

Products

PositionProduct
*54624SHIELD-FLUE, (NON-ILLUSTRATED)
*54624ANTI-TIP KIT (NOT ILLUSTRATED)
*546243051218 Frigidaire Oven Plate
1SPACER-BODYSIDE, (8)
3CHAN-DOOR HINGE (2)
4WCI 3203394
5WCI 3203082
6COVER-OVEN FRONT
7316204402 Frigidaire Oven Flue
8316542102 Frigidaire Flue Gasket
9COVER-IGNITOR
10BURNER BOX BOTTOM
11WCI 5303269543
11WCI 5303269545
12SCREW-LEVELING
13316067902 Frigidaire Oven Rack
14BTTM-OVEN
14AINSUL – OVEN BACK (NON-ILLUSTRATED)
14BINSULATION, OVEN WRAPPER
16A316064600 Frigidaire Oven Support
16COVER-VENT
17WCI 5303270160
183203010 Frigidaire Clip
