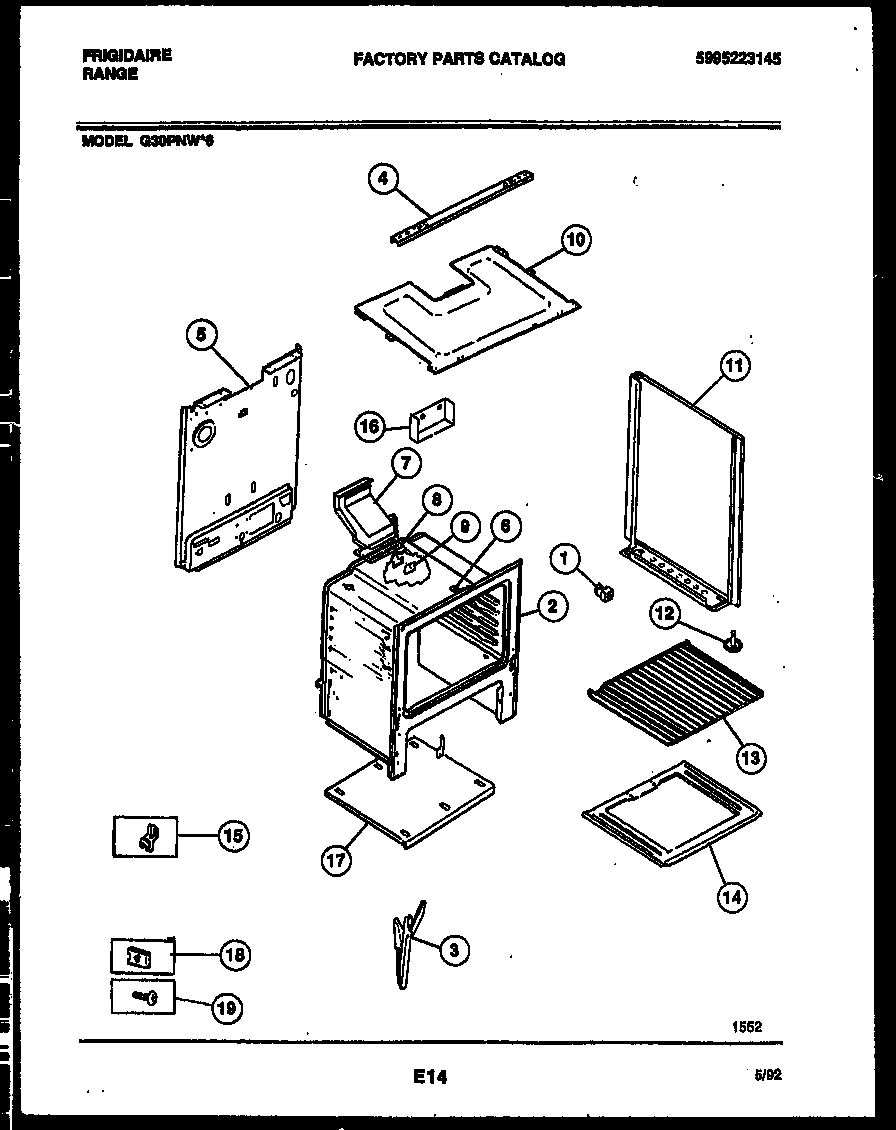

G30PNL6 07 – BODY PARTS

G30PNL6 07 – BODY PARTS

Written by

in

G30PNL6 07 – BODY PARTS

Products

PositionProduct
1SPACER-BODYSIDE, (8)
3Hinge,oven door ,(2)
4WCI 3203394
5WCI 3203082
6COVER-OVEN FRONT
7316204402 Frigidaire Oven Flue
8316542102 Frigidaire Flue Gasket
9COVER-IGNITOR
10BURNER BOX BOTTOM
11WCI 5303269545
11WCI 5303269543
12SCREW-LEVELING
13316067902 Frigidaire Oven Rack
14BTTM-OVEN
14BINSULATION, OVEN WRAPPER
14AINSUL – OVEN BACK (NON-ILLUSTRATED)
155303284616 Frigidaire Range Bulb Clip Thermostat
16A316064600 Frigidaire Oven Support
16COVER-VENT
17BASE-BROIL
18A3051218 Frigidaire Oven Plate
18DWCI 08010570
183203010 Frigidaire Clip
18BANTI-TIP KIT (NOT ILLUSTRATED)
18CSHIELD-FLUE, (NON-ILLUSTRATED)
19316282700 Frigidaire Oven Screw
