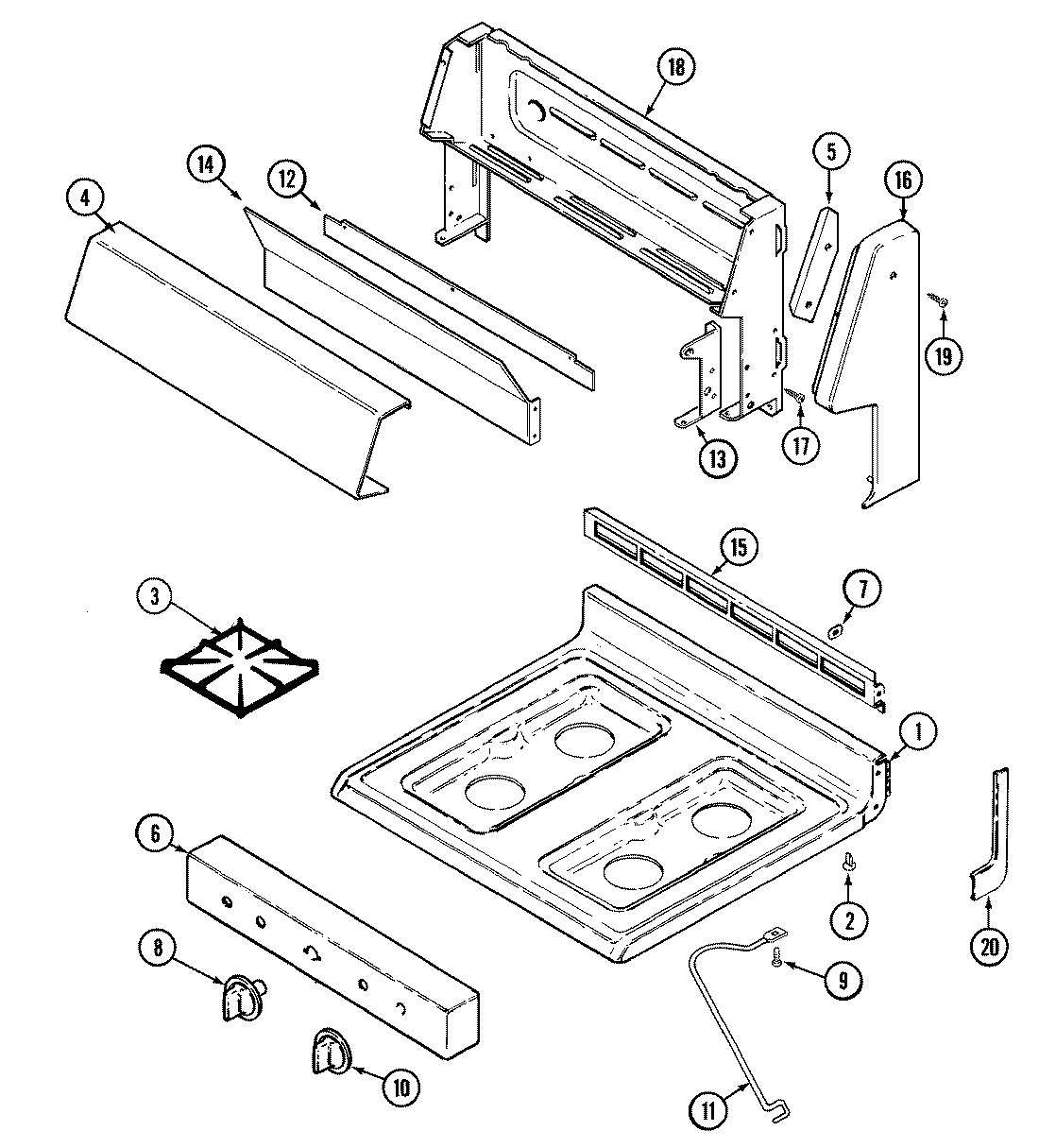

G3110PRW-M 06 – TOP ASSEMBLY/CONTROL PANEL
Written by
in
G3110PRW-M 06 – TOP ASSEMBLY/CONTROL PANEL
Products
Position
Product
NI
MAY 8113P042-60
NI
MAY 16000326
1
MAY 2001W081-81
2
MAY 8016P013-60
3
MAY 2003W026-00
4
MAY 2601F413-81
5
MAY 3807F449-45
5
MAY 3807F450-45
6
MAY 7101P311-60
6
MAY 2616F085-09
7
MAY 7103P129-60
8
MAY 7731P077-60
9
MAY 7101P280-60
10
WP7711P135-60 Whirlpool Knob
11
MAY 7809P014-60
12
MAY 8036P001-60
13
MAY 3418A088-34
13
MAY 3418A087-34
14
MAY 3604F188-09
15
MAY 3608F042-09
16
MAY 7726P052-60
16
MAY 7101P317-60
16
MAY 7726P051-60
17
MAY 7118P015-60
18
MAY 4001F097-51
19
WP98008545 Whirlpool Screw
20
MAY 7746P030-60
20
MAY 7746P031-60
←
