G3127XRA-5 05 – OVEN/BASE – Aparts

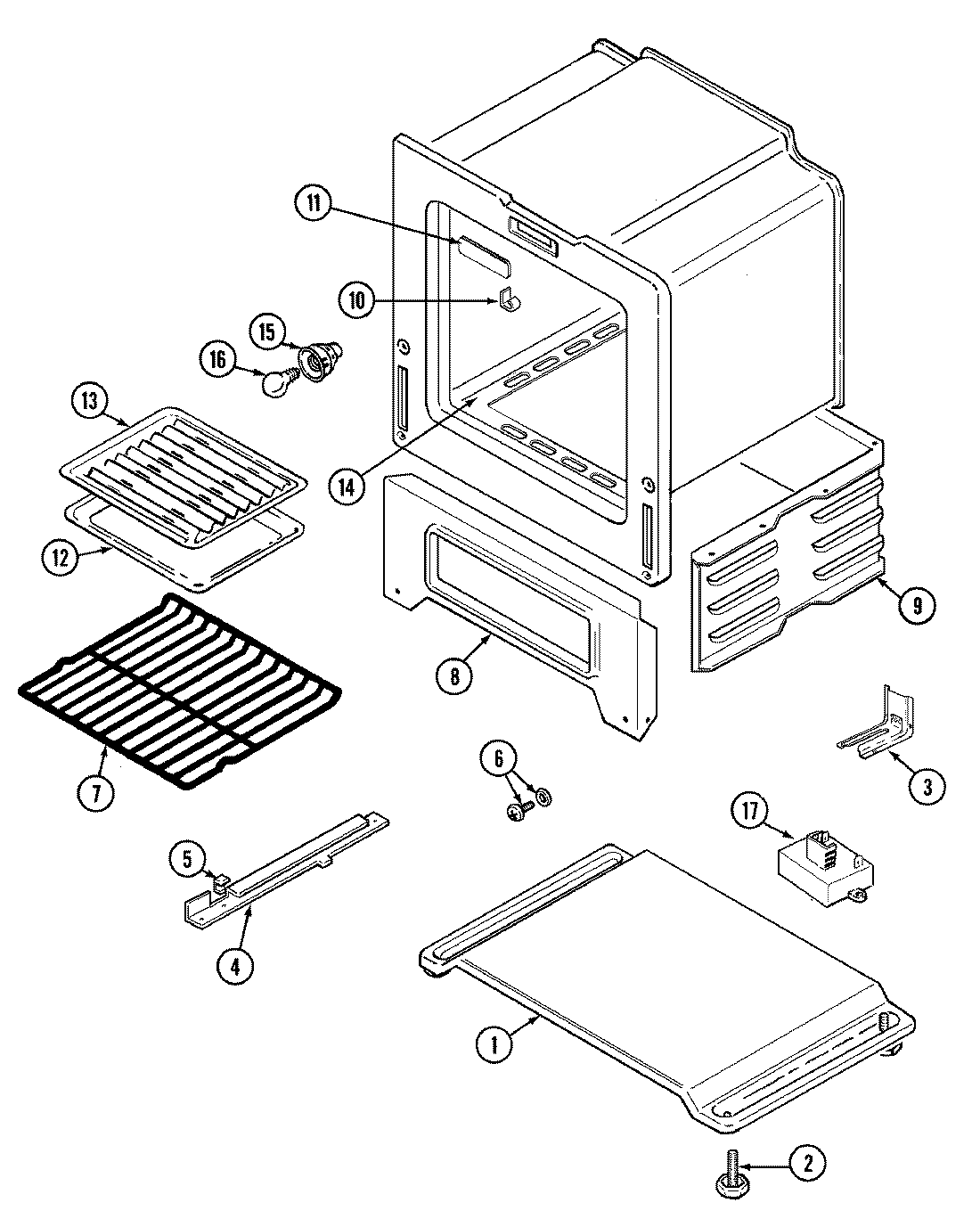

G3127XRA-5 05 – OVEN/BASE

Products

Position	Product
1	MAY 4003W028-67
1	MAY 7103P125-60
2	MAY 7101P306-60
3	MAY 3801F218-51
3	MAY 7101P289-60
4	MAY 3404F018-51
4	MAY 3404F021-51
5	MAY 8016P010-60
6	MAY 7101P290-60
7	MAY 7801P040-60
8	MAY 2201F077-19
9	MAY 4016F039-45
10	WP7112P004-60 Whirlpool Thermal Clip
11	MAY 8114P335-60
12	MAY Y3401F02019
13	MAY Y3413F01619
14	BAFFLE, OVEN BOTTOM
14	MAY 5504M004-19
15	WP7407P182-60 Whirlpool Lamp
16	MAY 7407P027-60
17	MAY 7510P046-60
