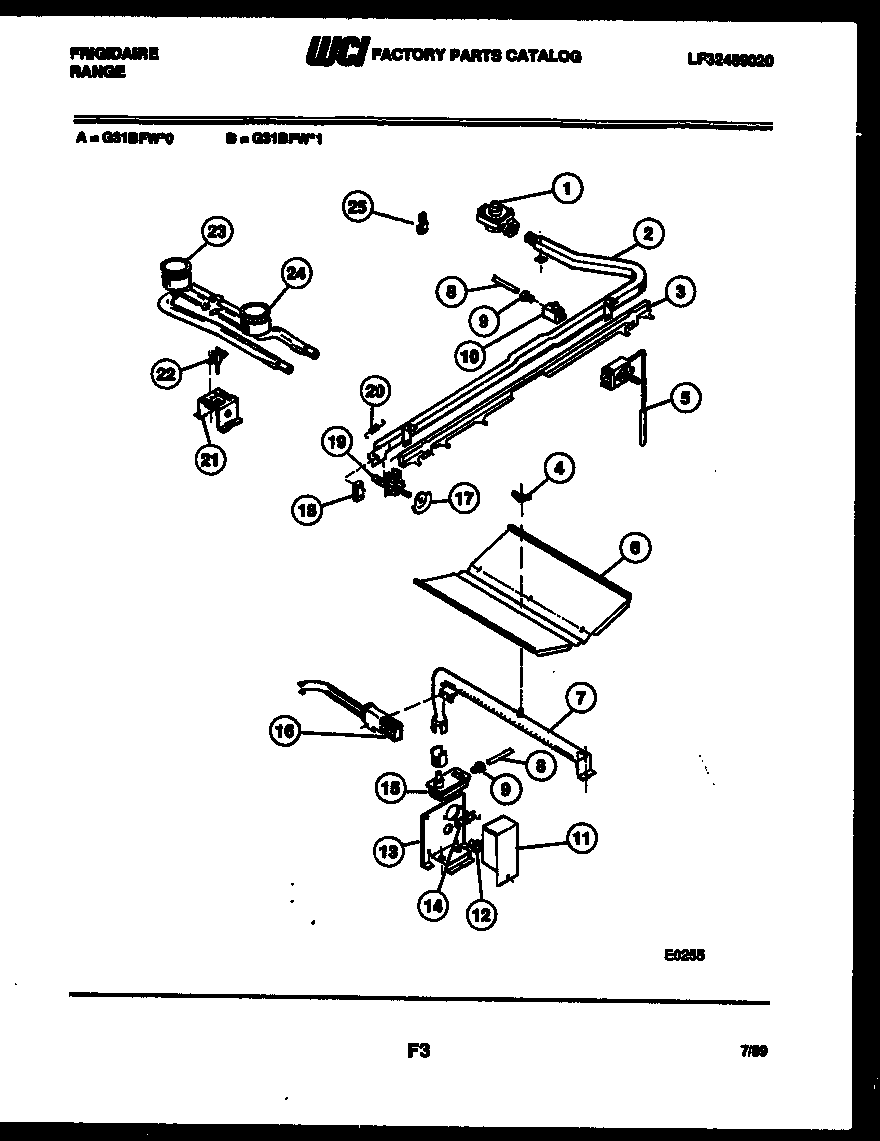

G31BFW1 05 – BURNER, MANIFOLD AND GAS CONTROL

Products

Position	Product
1	5308007974 Frigidaire Pressure Regulator
2	WCI 08013906
3	WCI 08014021
4	NUT – WING
5	THERMOSTAT
6	BAFFLE-OVEN BURNER
7	WCI 3202752
8	TUBE – 3/8 FEED
9	WCI 08008363
10	WCI 3131099
11	WCI 08007986
12	SNAP – BUSHING
13	SUPPORT-OVEN SAFETY VALVE
14	WCI 08007985
15	WCI 08009419
16	5303935066 Frigidaire Oven Flat Igniter 17" Leads
17	WCI 08008002
18	WCI 08013925
19	WCI 3131057
20	WCI 3131096
21	WCI 3203964
22	IGNITER-TOP BURNER 36“
23	BURNER – TOP REAR
24	BURNER – TOP FRONT
