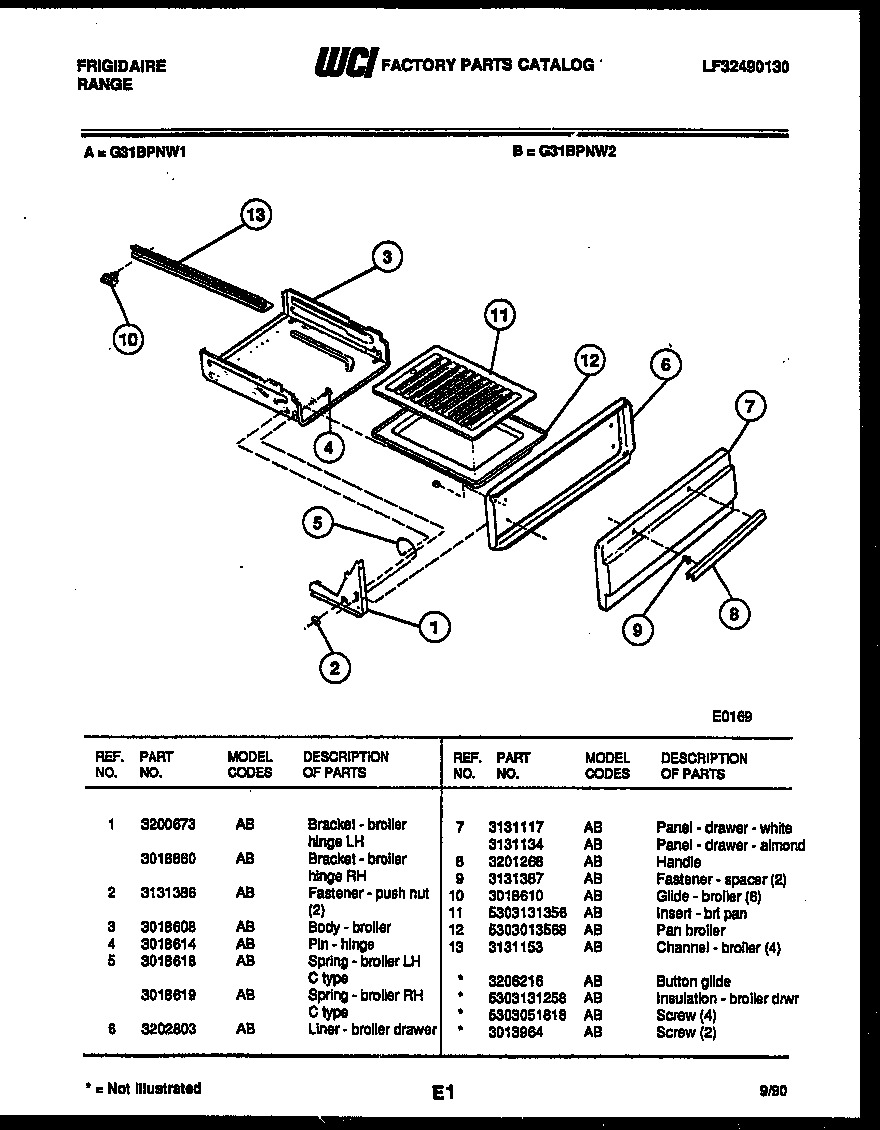

G31BPNL2 04 – BROILER DRAWER PARTS

Products

Position	Product
*35880	WCI 3206216
*35880	5303300265 Frigidaire Oven Screw
*35880	SCREW-PNL ASSY (2)
*35880	INSULATION, BROILER DRAWER
1A	WCI 3018860
1	WCI 3200673
2	WCI 3131386
3	DRAWER-BROILER
4	PIN, HINGE (2)
5	WCI 3018618`
5A	SPRING-BROILER, RH
6	WCI 3202803
7	PANEL – BROILER ALMD
8	HANDLE-DRAWER, BRUSHED CHROME
9	FSTNR, SPACER (2)
10	GLIDE-DRAWER, REAR
11	WCI 5303131356
12	PAN-BROILER
13	WCI 3131153
