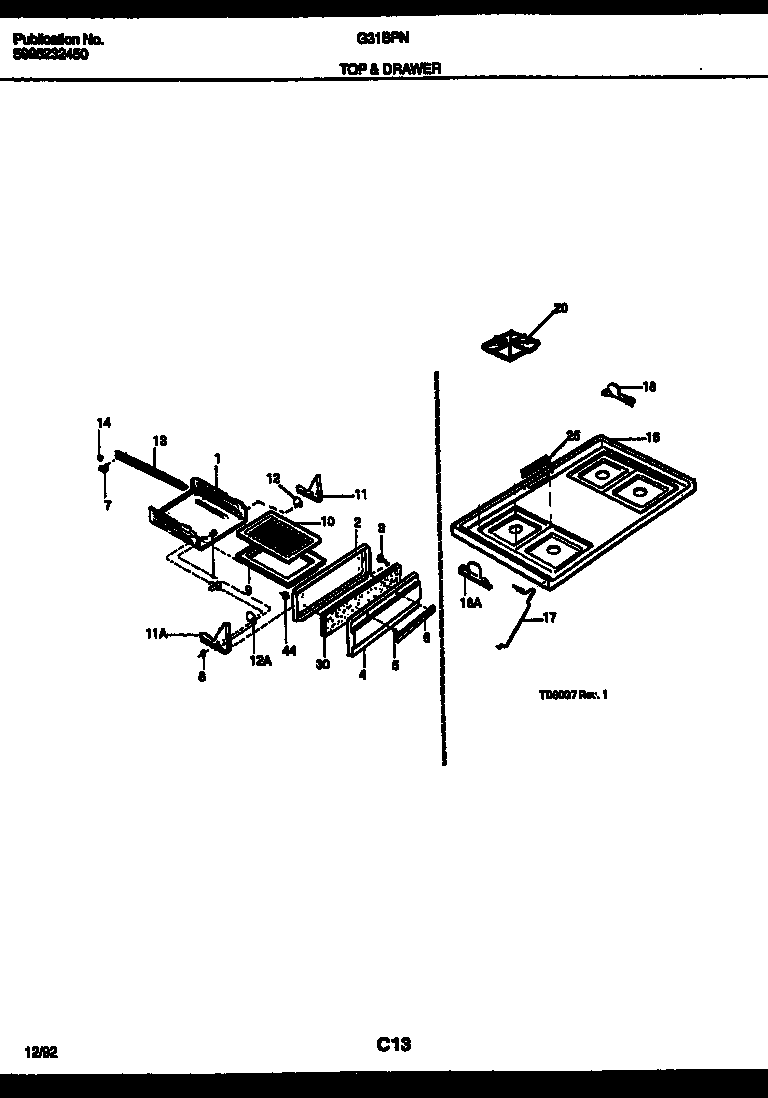

G31BPNL5 05 – COOKTOP AND BROILER DRAWER PARTS

G31BPNL5 05 – COOKTOP AND BROILER DRAWER PARTS

Written by

in

G31BPNL5 05 – COOKTOP AND BROILER DRAWER PARTS

Products

PositionProduct
1DRAWER-BROILER
2WCI 3202803
3SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
4PANEL – BROILER ALMD
4ASCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
5FSTNR, SPACER (2)
6HANDLE-DRAWER, BRUSHED CHROME
7GLIDE-DRAWER, REAR
8WCI 3131386
9PAN-BROILER
10WCI 5303131356
11AWCI 3200673
11WCI 3018860
12AWCI 3018618`
12SPRING-BROILER, RH
13WCI 3131153
14WCI 3206216
16WCI 3131460
17ROD-MAIN SUPPORT (2)
18ABRACKET-HINGE,MAIN TOP LH
18BRACKET-HINGE,MAIN TOP RH
20WCI 5303272852
25WCI 3131190
29PIN, HINGE (2)
30INSULATION, BROILER DRAWER
