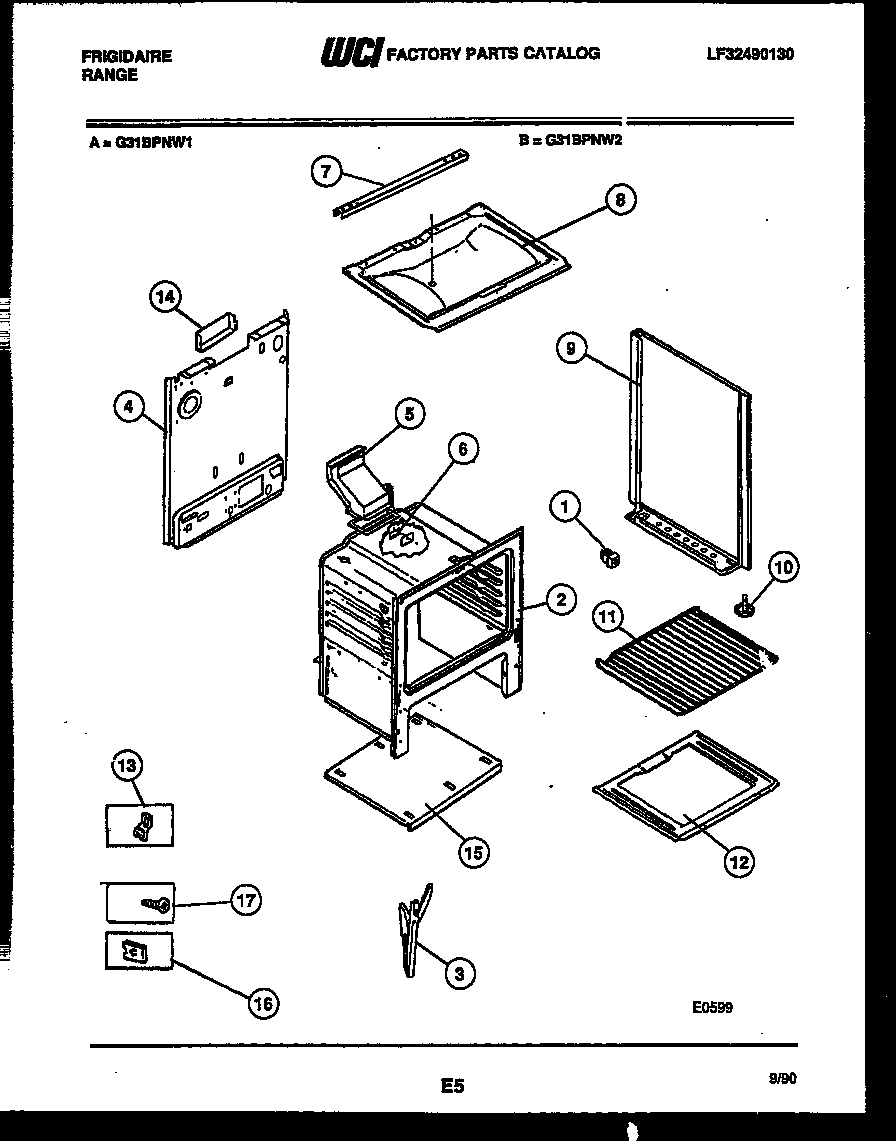

G31BPNW1 07 – BODY PARTS

G31BPNW1 07 – BODY PARTS

Written by

in

G31BPNW1 07 – BODY PARTS

Products

PositionProduct
*35885SHIELD-FLUE, (NON-ILLUSTRATED)
*35885COVER-IGNITOR
*358853051218 Frigidaire Oven Plate
*35885COVER-OVEN FRONT
*35885ANTI-TIP KIT (NOT ILLUSTRATED)
1SPACER-BODYSIDE, (8)
3CHAN-DOOR HINGE (2)
4WCI 3203082
5316204402 Frigidaire Oven Flue
6316542102 Frigidaire Flue Gasket
7WCI 3203394
8BURNER BOX BOTTOM
9PNL-BODYSIDE RH-WHITE
9APNL-BODYSIDE LH-WHITE
10SCREW-LEVELING
11316067902 Frigidaire Oven Rack
12AINSULATION, OVEN WRAPPER
12BTTM-OVEN
12BINSUL – OVEN BACK (NON-ILLUSTRATED)
135303284616 Frigidaire Range Bulb Clip Thermostat
14A316064600 Frigidaire Oven Support
14COVER-VENT
15WCI 3131180
163203010 Frigidaire Clip
17316282700 Frigidaire Oven Screw
