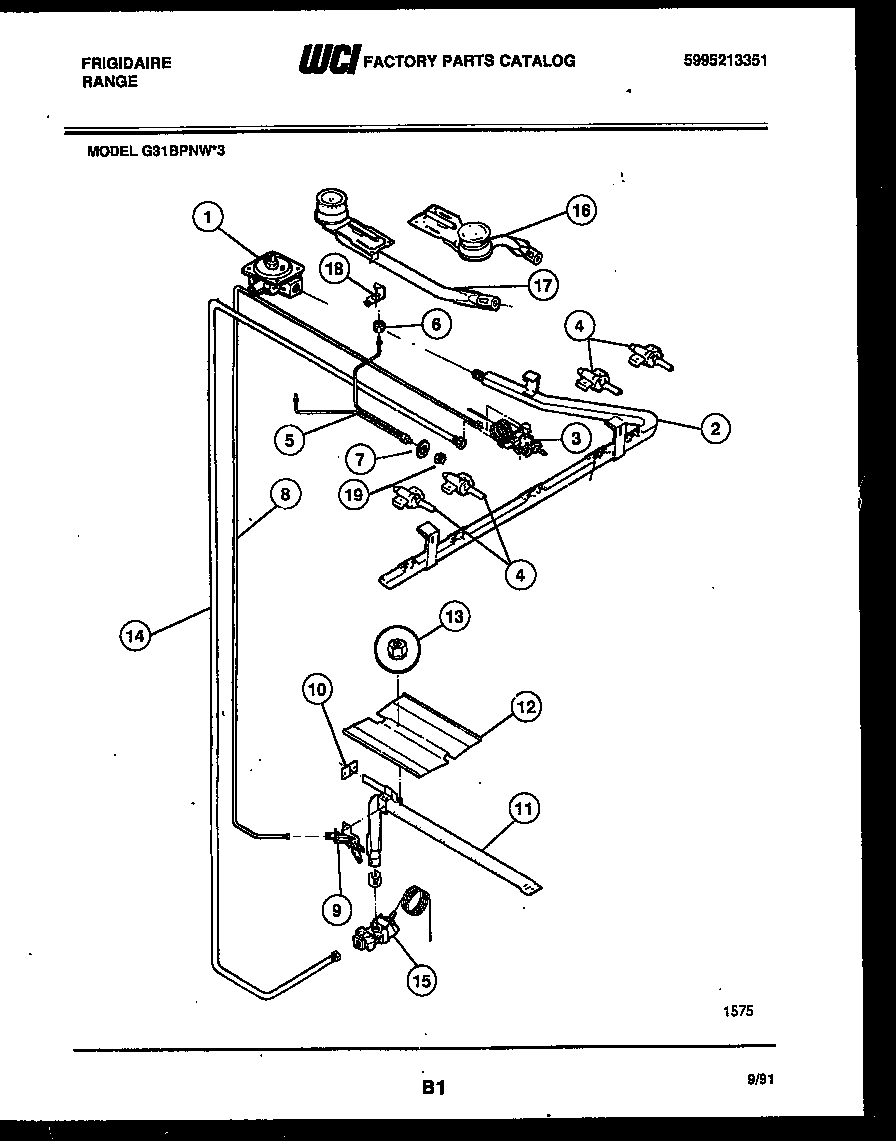

G31BPNW3 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
*53340SCREW-THERMOSTAT, (2) (NOT ILLUSTRATED)
1WCI 5303016997
2WCI 5303280588
3THERMOSTAT
4WCI 530328078
4A316048200 Frigidaire Oven Screw
5TUBING-TOP PILOT, DUAL
6CAP-TOP PILOT, (2)
7WCI 3201276
8Tubing`thermo/pilot `3/16 ,alum
9WCI 5303280589
10WCI 3018603
11WCI 5303280585
12WCI 3203265
135303013272 Frigidaire Oven Nut
14TUBE – ALUM THERMO/SAFETY W/ FIT
15WCI 5303280593
165304506427 Frigidaire Oven Range Surface Burner (White)
175304506426 Frigidaire Oven Top Rear Burner
18SHIELD-PILOT, STAINLESS STEEL, (2)
19WCI 5303201277
