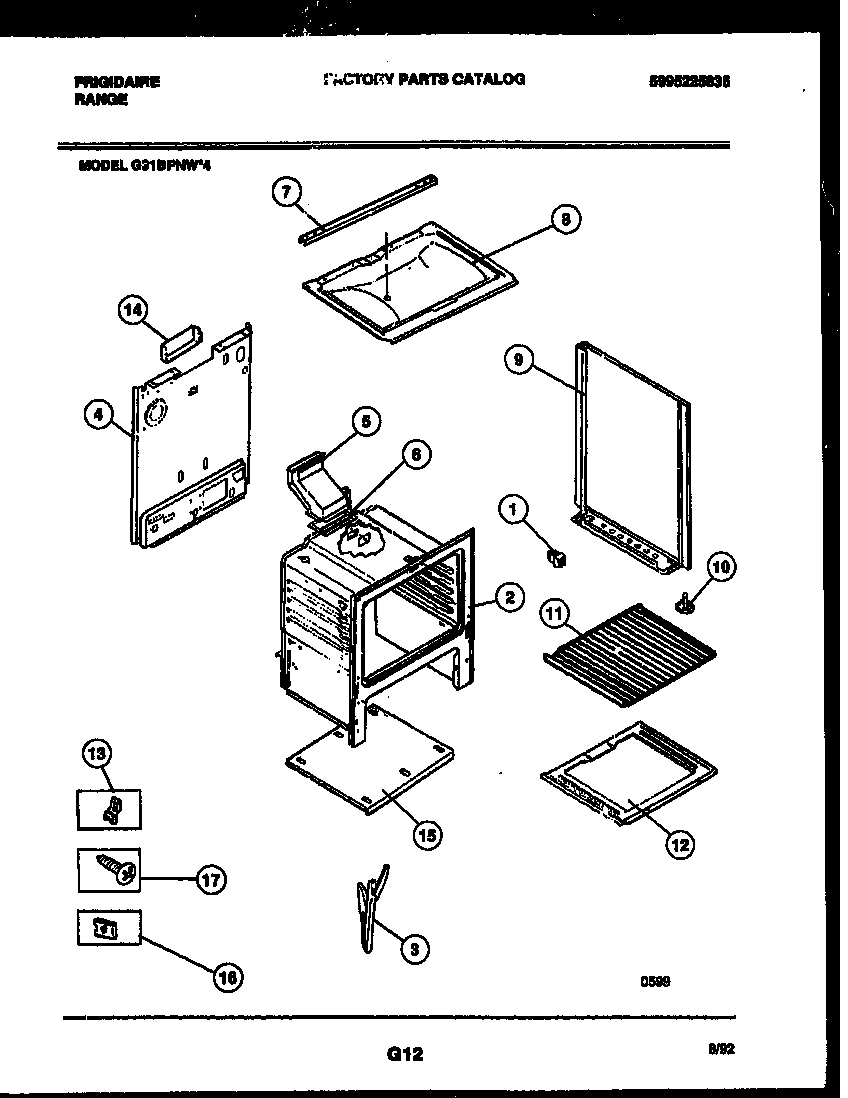

G31BPNW4 07 – BODY PARTS

Products

Position	Product
*64721	SHIELD-FLUE, (NON-ILLUSTRATED)
*64721	3051218 Frigidaire Oven Plate
*64721	COVER-OVEN FRONT
*64721	ANTI-TIP KIT (NOT ILLUSTRATED)
*64721	COVER-IGNITOR
1	SPACER-BODYSIDE, (8)
3	Hinge,oven door ,(2)
4	WCI 3203082
5	316204402 Frigidaire Oven Flue
6	316542102 Frigidaire Flue Gasket
7	WCI 3203394
8	BURNER BOX BOTTOM
9	PNL-B/S-RH-WHITE
9	PNL-B/S-LH-WHITE
10	SCREW-LEVELING
11	316067902 Frigidaire Oven Rack
12A	INSULATION, OVEN WRAPPER
12B	INSUL – OVEN BACK (NON-ILLUSTRATED)
12	BTTM-OVEN
13	5303284616 Frigidaire Range Bulb Clip Thermostat
14A	316064600 Frigidaire Oven Support
14	COVER-VENT
15	WCI 5303270160
16	3203010 Frigidaire Clip
17	316282700 Frigidaire Oven Screw
