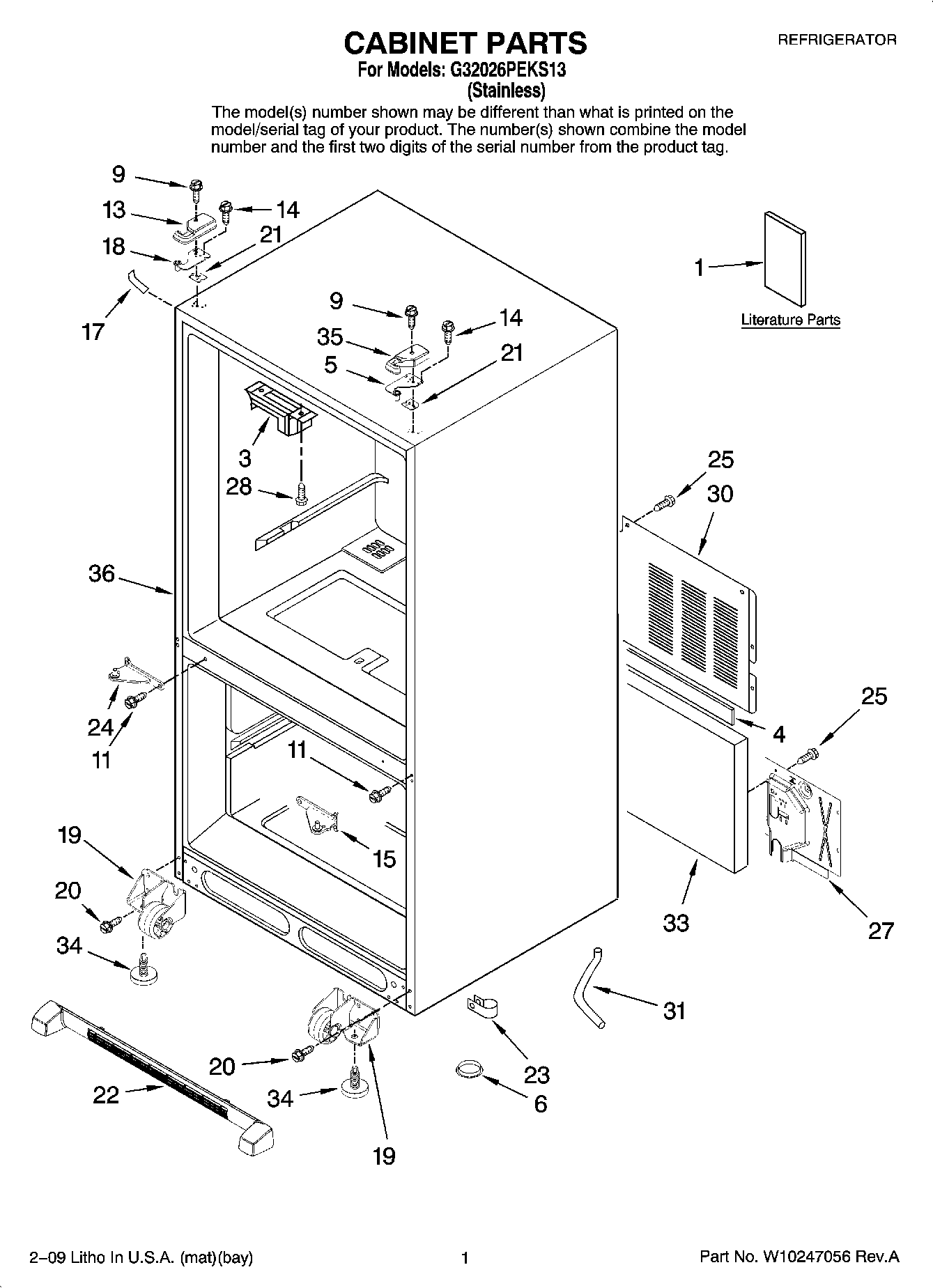

G32026PEKS13 01 – CABINET PARTS

Products

Position	Product
1	Owners Manual
1	MAY 12827959
3	WP67003405 Whirlpool Pivot Block
4	Gasket
5	Hinge, Top
6	A3076901 Whirlpool Refrigerator Plug
9	WP8281196 Whirlpool Screw
11	WP67006380 Whirlpool Screw
13	MAY 8208248
14	WP489349 Whirlpool Refrigerator Screw
15	Hinge, Center (RT) (Black)
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
18	Hinge, Top Left
19	Bracket, Roller (Front) (Left)
19	Bracket, Roller (Front) (Right)
20	MAY 67006564
21	MAY 8208257
22	Grille Assembly (Includes Clips) (Black)
23	67001067 Whirlpool Refrigerator Drain Tube Clip
24	Hinge, Center (LT) (Black)
25	Screw (10)
27	MAY W10131907
28	WP7101P126-60 Whirlpool Screw
30	MAY 67002230
31	MAY 67001066
33	67003796 Whirlpool Refrigerator Fiber Acoustic
34	Brake, Foot
35	MAY 12684202B
