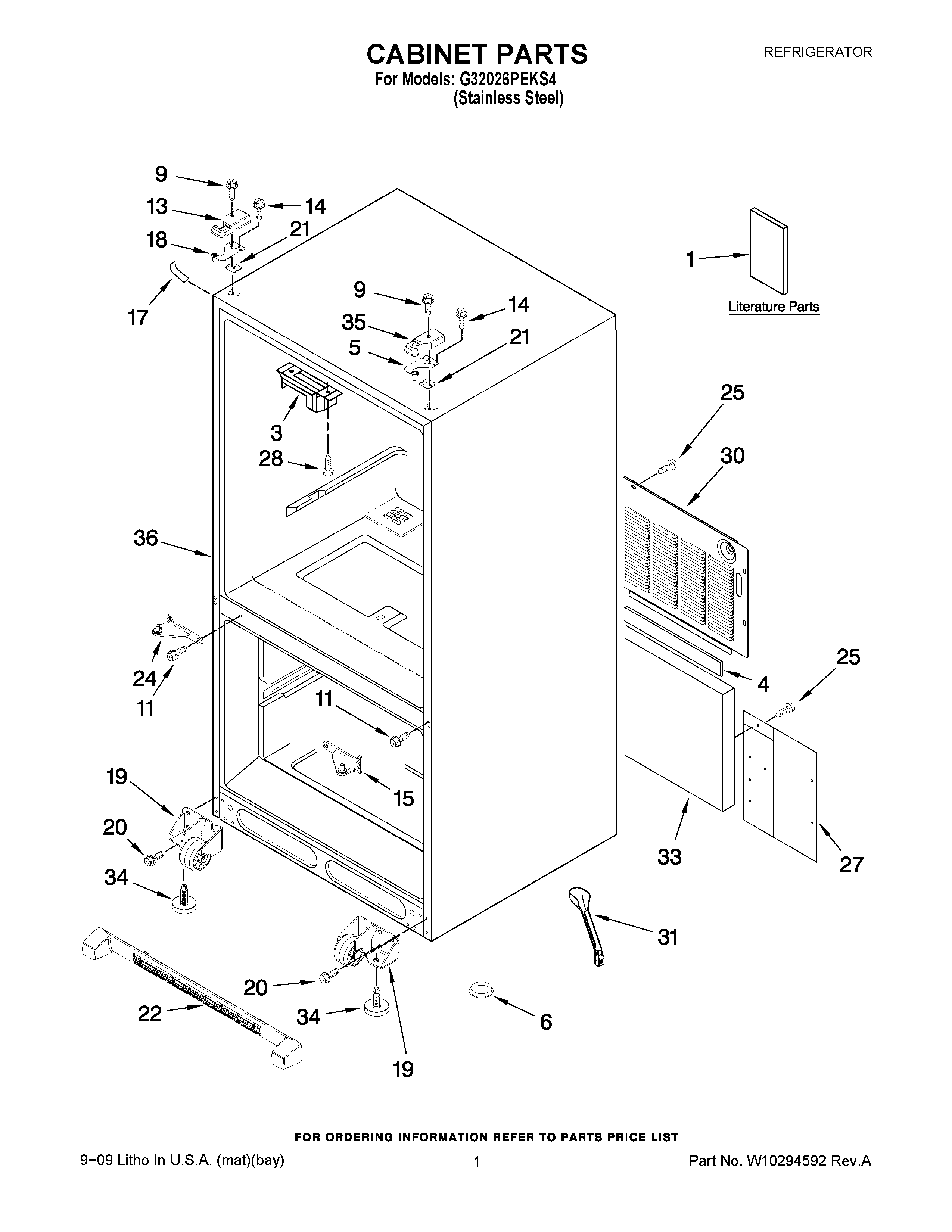

G32026PEKS4 01 – CABINET PARTS

Products

PositionProduct
1MAY 12828189SP
1MAY W10239995
3Block, Pivot
4Gasket
5Hinge, Top
6A3076901 Whirlpool Refrigerator Plug
9MAY 12992602
11SCREW (6)
13MAY 12684201B
14SCREW (6)
15HINGE, CENTER (BLACK, RIGHT )
17COVER, CORNER (BLACK)
18Hinge, Top Left
19ROLLER ASSY. (FRONT) (RIGHT)
19ROLLER ASSY. (FRONT) (LEFT)
20Screw (8)
21MAY 12579702
22GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK)
24HINGE, CENTER (BLACK, LEFT)
25SCREW (10)
27MAY W10217701
28SCREW (2)
30MAY W10212203
31MAY 12638901
33Insulation, Sound
34Brake, Foot
35MAY 12684202B
36LINER (NOT A SERVICEABLE PART)
