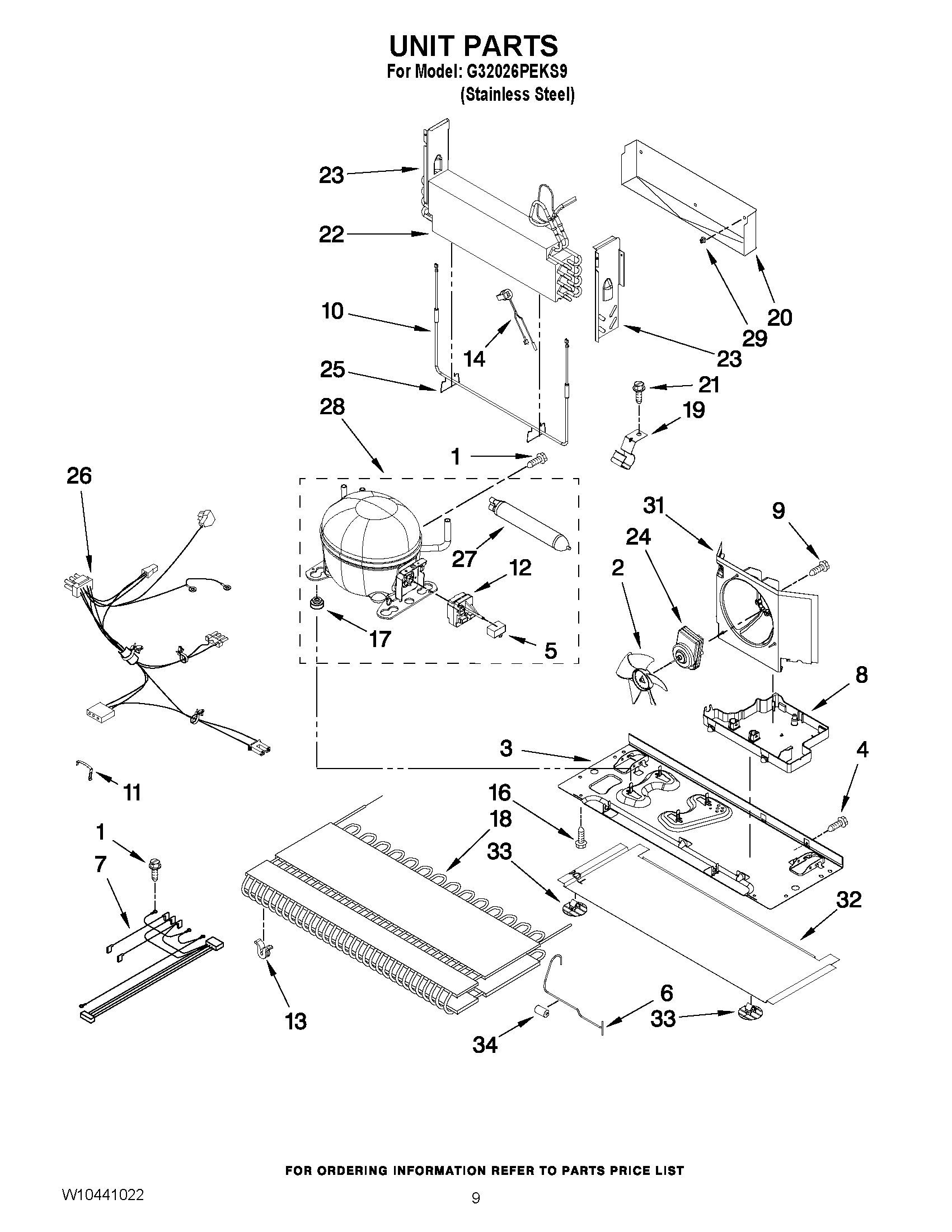

G32026PEKS9 05 – UNIT PARTS

Products

PositionProduct
NIValve, Access (1/2“)
NILINER (NOT A SERVICEABLE PART)
NIValve, Access (5/16“)
NIValve, Access (3/4“)
NIMAY 876764
NIVALVE, ACCESS (1/4“)
NIValve, Access (5/8“)
NIVALVE, ACCESS (3/8“)
1MAY 12992301
2MAY 12825803
3MAY W10210985
4SCREW (10)
5CAPACITOR
6MAY W10286438
7HARNESS, EVAP. HEATER
8MAY W10296785
9SCREW, SHOULDER
10MAY 12729132
11STRAP, BALE
12START DEVICE
13GROMMET, COND (4)
14Thermostat, Def.
16MAY 12992101
17Grommet (4)
18MAY W10346420
19MAY W10281329
20MAY W10292803
21MAY 12990701
22MAY W10317014
23Dam (Right Side)
23DAM (LEFT SIDE)
24MAY W10246191
25W11673433 Whirlpool Clip
26HARNESS, UNIT
27Drier
28MAY W10223234
29MAY 10623002
31MAY W10189187
32EXTENSION-BASEPAN
33MAY W10206339
34GROMMET, CONDENSER
