G32026PEKW 09 – INTERIOR CABINET & TOE GRILLE

G32026PEKW 09 – INTERIOR CABINET & TOE GRILLE

Written by

in

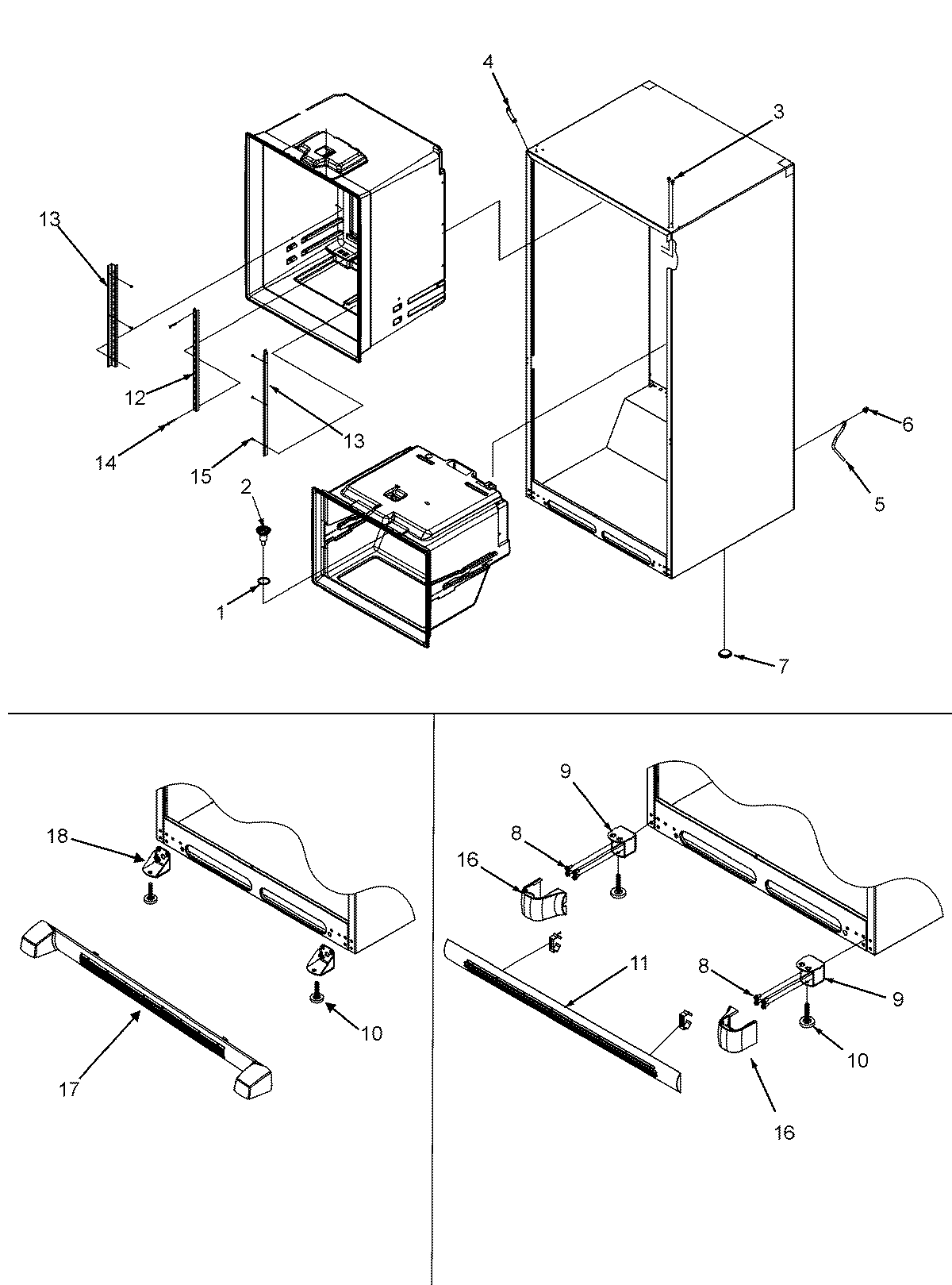

G32026PEKW 09 – INTERIOR CABINET & TOE GRILLE

Products

PositionProduct
1MAY M0500703
1Gasket
2MAY D7753903
3MAY A4539607
467003484 Whirlpool Refrigerator White Corner Cover
5MAY 67001066
667001067 Whirlpool Refrigerator Drain Tube Clip
7A3076901 Whirlpool Refrigerator Plug
8MAY 67003858
9HINGE, BOTTOM E-CT (WHT)
10MAY 10354001
11TOE GRILLE ASSY (WHT)
11Clip, Grille
1267001073 Whirlpool Refrigerator Center Ladder
1367002489 Whirlpool Refrigerator Ladder L/R Side
14MAY M0231425
15SCREW, SM
16MAY 12561901W
17WPW10534154 Whirlpool Refrigerator Front Grille
1812906303WD Whirlpool Refrigerator Bracket
18MAY 67006491
