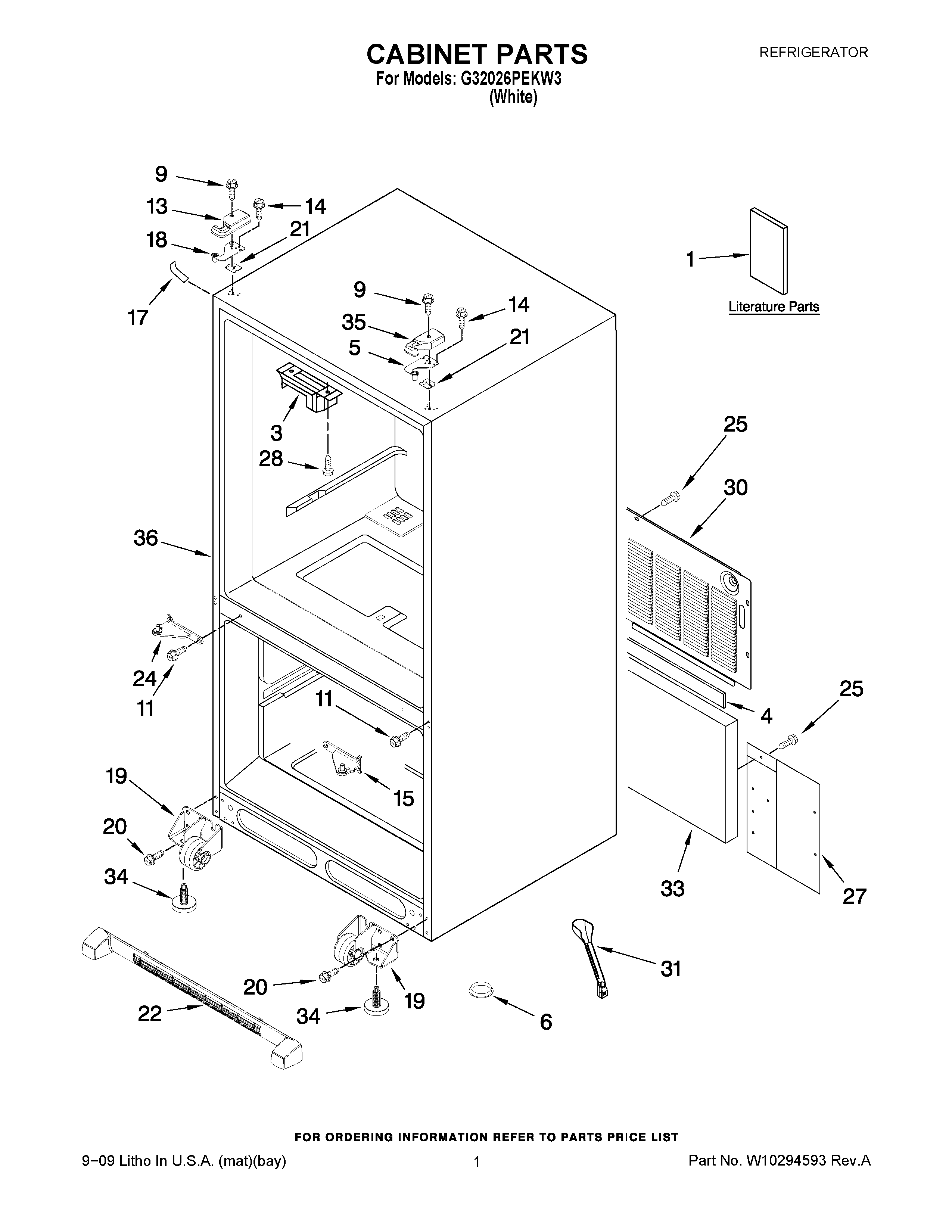

G32026PEKW3 01 – CABINET PARTS

Products

Position	Product
1	Owners Manual
1	MAY W10239995
3	Block, Pivot
4	Gasket
5	Hinge, Top
6	A3076901 Whirlpool Refrigerator Plug
9	MAY 12992602
11	SCREW (6)
13	MAY W10177766
14	SCREW (6)
15	Hinge, Center (RT) (White)
17	Cover, Corner (2) (White)
18	Hinge, Top Left
19	ROLLER ASSY. (FRONT) (RIGHT)
19	ROLLER ASSY. (FRONT) (LEFT)
20	Screw (8)
21	MAY 12579702
22	MAY W10244559
24	Hinge, Center (LT) (White)
25	SCREW (10)
27	MAY W10217701
28	SCREW (2)
30	MAY W10212203
31	MAY 12638901
33	Insulation, Sound
34	Brake, Foot
35	MAY 12684202W
36	LINER (NOT A SERVICEABLE PART)
