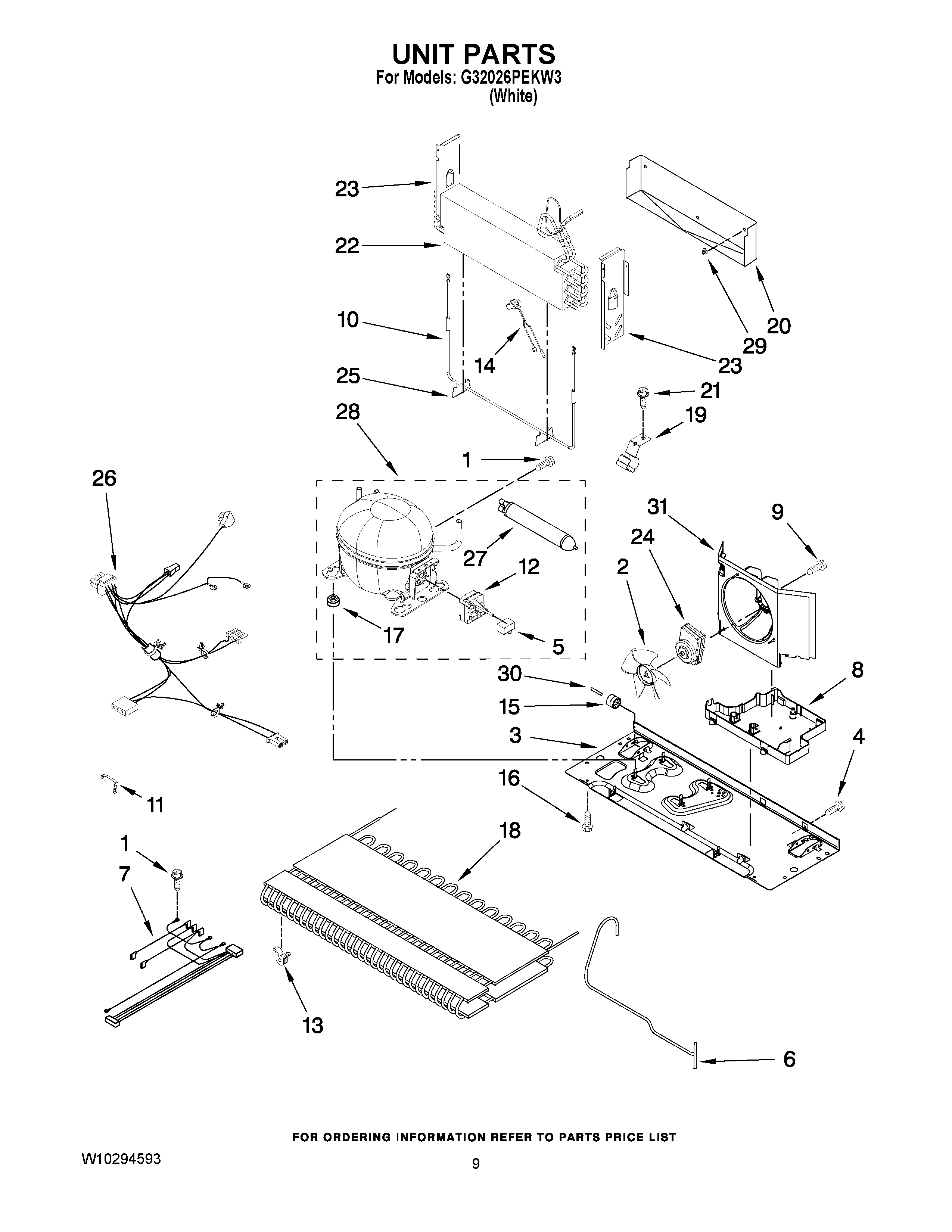

G32026PEKW3 05 – UNIT PARTS

G32026PEKW3 05 – UNIT PARTS

Written by

in

G32026PEKW3 05 – UNIT PARTS

Products

PositionProduct
NIValve, Access (5/8“)
NIValve, Access (1/2“)
NIVALVE, ACCESS (3/8“)
NIValve, Access (5/16“)
NIVALVE, ACCESS (1/4“)
NIMAY 876764
NILINER (NOT A SERVICEABLE PART)
NIValve, Access (3/4“)
1MAY 12992301
2MAY 12825803
3MAY W10210985
4SCREW (10)
5CAPACITOR
6MAY W10286438
7HARNESS, EVAP. HEATER
8MAY W10215085
9SCREW, SHOULDER
10MAY 12729132
11STRAP, BALE
12START DEVICE
13GROMMET, COND (4)
14Thermostat, Def.
15Roller (2)
16MAY 12992101
17Grommet (4)
18MAY W10135027
19MAY 10547003
20MAY 12225403WD
21MAY 12990701
22MAY 12726403
23Dam (Right Side)
23DAM (LEFT SIDE)
24MAY 12825102
25W11673433 Whirlpool Clip
26HARNESS, UNIT
27Drier
28MAY W10223234
29MAY 10623002
30Axle, Roller (2)
31MAY W10189187
