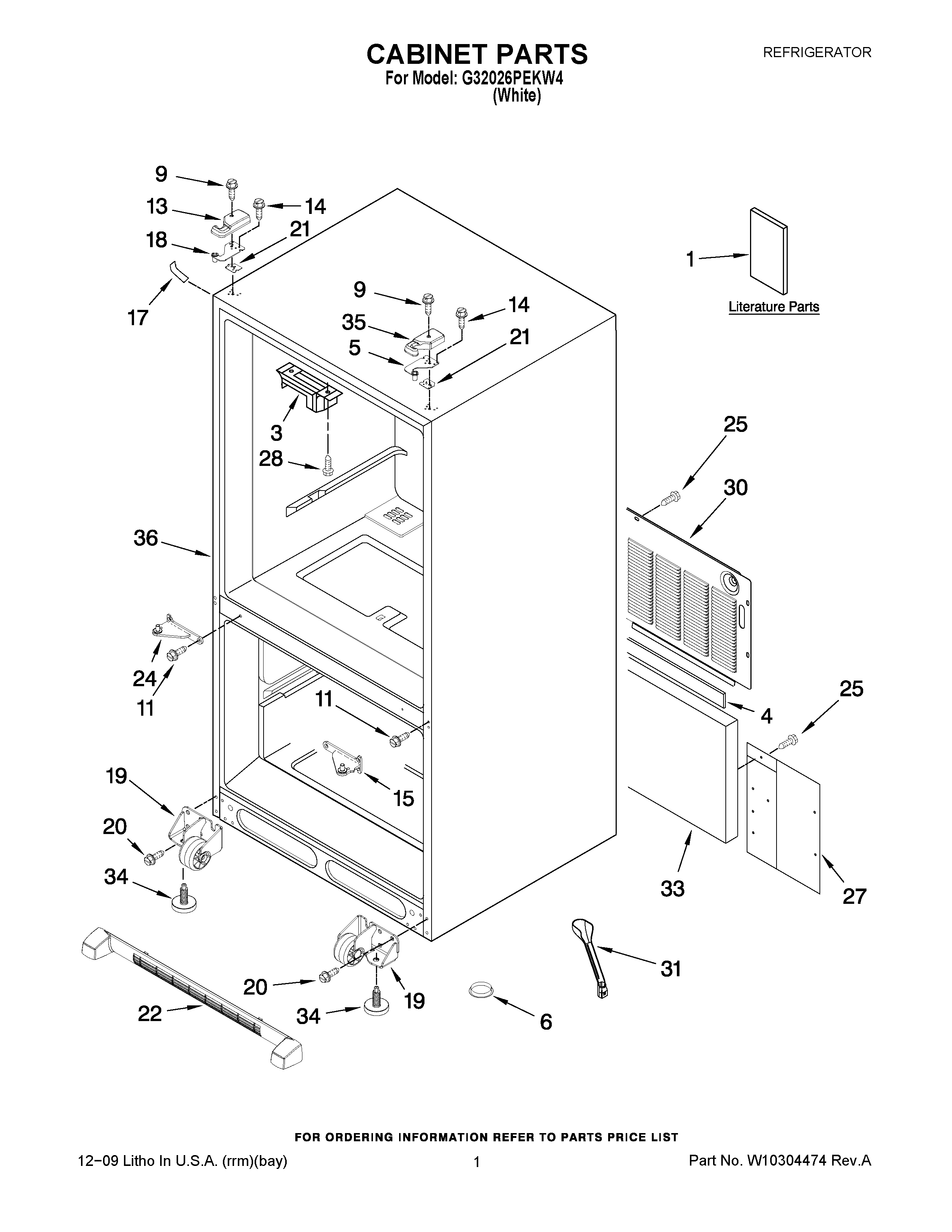

G32026PEKW4 01 – CABINET PARTS

Products

Position	Product
1	MAY W10279341
1	MAY 12828189SP
3	Block, Pivot
4	Gasket
5	Hinge, Top
6	A3076901 Whirlpool Refrigerator Plug
9	MAY 12992602
11	SCREW (6)
13	MAY W10177766
14	SCREW (6)
15	Hinge, Center (RT) (White)
17	Cover, Corner (2) (White)
18	Hinge, Top Left
19	ROLLER ASSY. (FRONT) (RIGHT)
19	ROLLER ASSY. (FRONT) (LEFT)
20	Screw (8)
21	MAY 12579702
22	MAY W10244559
24	Hinge, Center (LT) (White)
25	SCREW (10)
27	MAY W10217701
28	SCREW (2)
30	MAY W10212203
31	MAY W10210988
33	Insulation, Sound
34	Brake, Foot
35	MAY 12684202W
36	LINER (NOT A SERVICEABLE PART)
