G32026PELB 15 – RIGHT REFRIGERATOR DOOR

G32026PELB 15 – RIGHT REFRIGERATOR DOOR

Written by

in

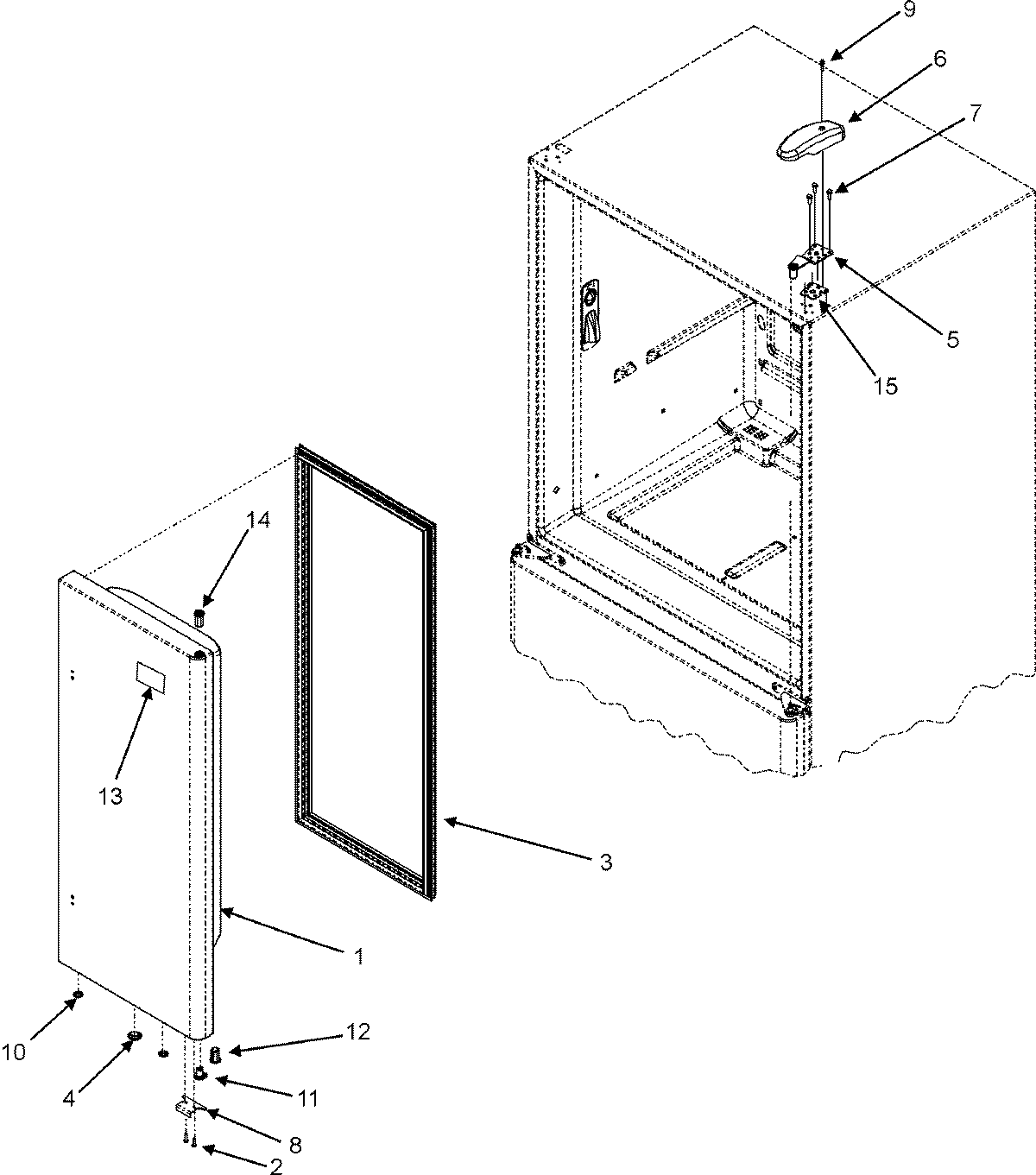

G32026PELB 15 – RIGHT REFRIGERATOR DOOR

Products

PositionProduct
1MAY 67005896
1DOOR ASSY., RT REF FOAM (BLK)
2MAY M0211533
3GASKET-FIP
4MAY A3080001
512626910ED Whirlpool Refrigerator Door Hinge
6MAY 12629801B
7MAY M0238731
8W11708403 Whirlpool Door Stop
9WP8281196 Whirlpool Screw
1067004838 Whirlpool Refrigerator Button Vent Plug
11WP67003639 Whirlpool Refrigerator Closer
12WP67002731 Whirlpool Refrigerator Door Bushing
13BEZEL, NAMEPLATE (BLK)
1467004978 Whirlpool Refrigerator Black Door Bushing
15MAY 12579702
