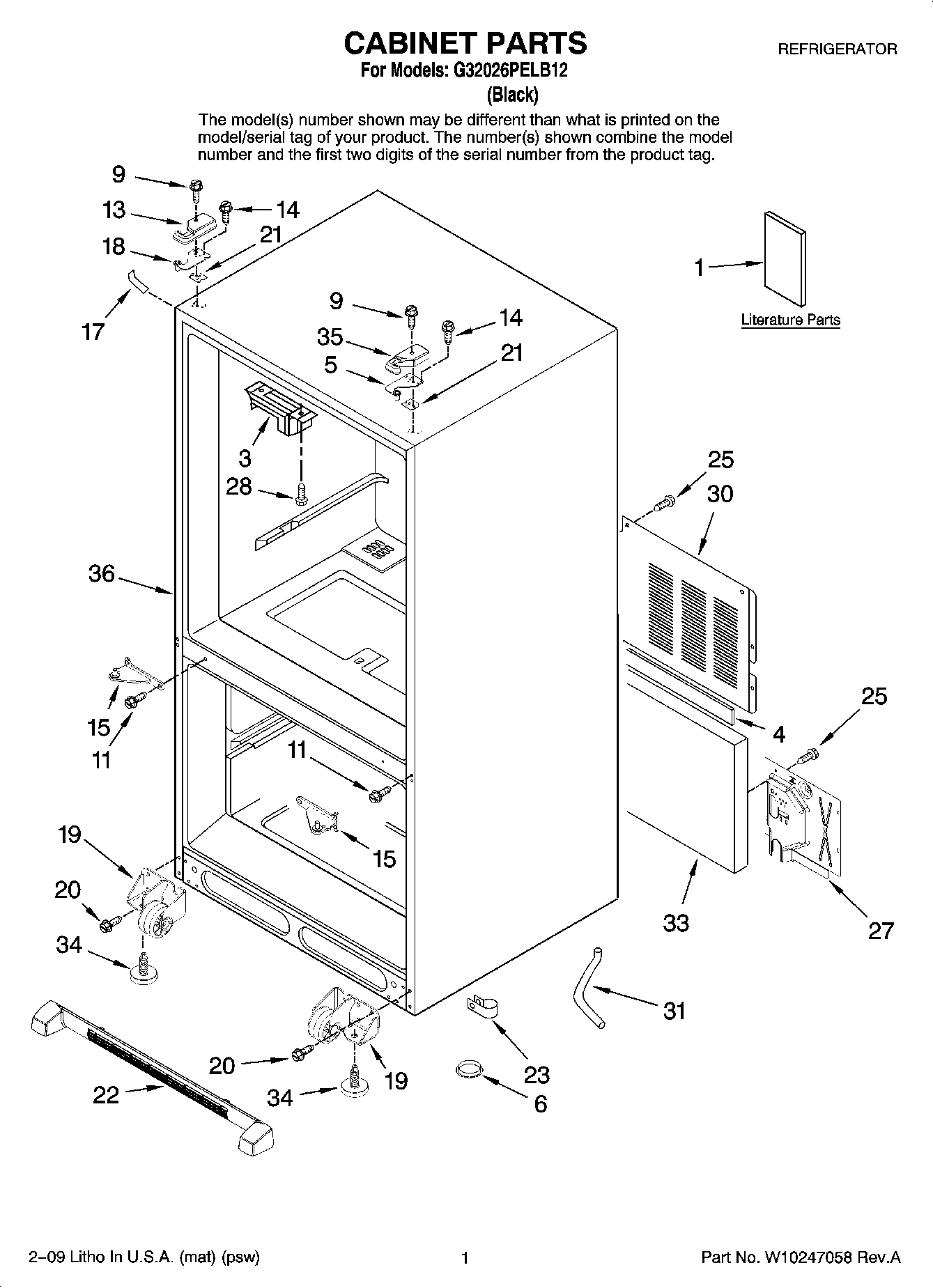

G32026PELB12 01 – CABINET PARTS

Products

PositionProduct
1Owners Manual
1MAY 12827959
3WP67003405 Whirlpool Pivot Block
4Gasket
5Hinge, Top Right
6A3076901 Whirlpool Refrigerator Plug
9WP8281196 Whirlpool Screw
11WP67006380 Whirlpool Screw
13Cover, Hinge (FC) (Black)
14WP489349 Whirlpool Refrigerator Screw
15MAY 12655102ED
1767003485 Whirlpool Refrigerator Corner Cover (Black)
18Hinge, Top Left
19Bracket, Roller (Front) (Left)
19Bracket, Roller (Front) (Right)
20MAY 67006564
21MAY 8208257
22Grille Assembly (Includes Clips) (Black)
2367001067 Whirlpool Refrigerator Drain Tube Clip
25Screw (10)
27MAY 12479808
28WP7101P126-60 Whirlpool Screw
30MAY 67002230
31MAY 67001066
3367003796 Whirlpool Refrigerator Fiber Acoustic
34Brake, Foot
35Cover, Right Hinge (Black)
