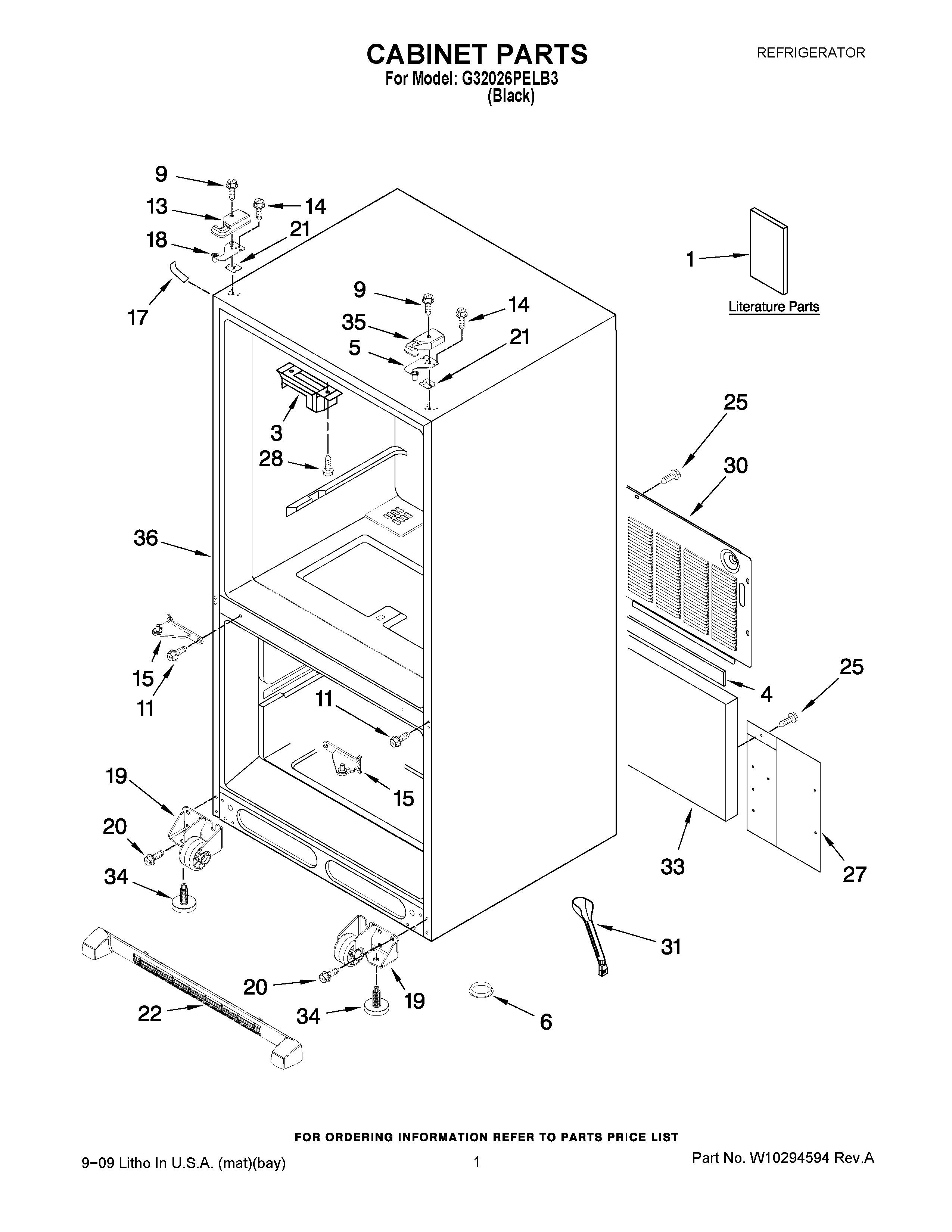

G32026PELB3 01 – CABINET PARTS

G32026PELB3 01 – CABINET PARTS

Written by

in

G32026PELB3 01 – CABINET PARTS

Products

PositionProduct
1Owners Manual
1MAY W10239995
3Block, Pivot
4Gasket
5Hinge, Top Right
6A3076901 Whirlpool Refrigerator Plug
9MAY 12992602
11SCREW (6)
13MAY W10217485
14SCREW (6)
15Hinge, Center (Black)
17COVER, CORNER (BLACK)
18Hinge, Top Left
19ROLLER ASSY. (FRONT) (LEFT)
19ROLLER ASSY. (FRONT) (RIGHT)
20Screw (8)
21MAY 12579702
22GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK)
25SCREW (10)
27MAY W10217701
28SCREW (2)
30MAY W10212203
31MAY 12638901
33Insulation, Sound
34Brake, Foot
35MAY 12629801B
36LINER (NOT A SERVICEABLE PART)
